IP30 Industrial Managed Ethernet Switch

IP30 Industrial Managed Ethernet Switch

IP30 Industrial Managed Ethernet Switch
IP30 Industrial Managed Ethernet Switch
Categories Industrial Managed Ethernet Switch
Brand Name: OLYCOM
Model Number: IM-FS022400GW
Certification: CE, ROHS
Place of Origin: Shenzhen, China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 600pcs per month
Delivery Time: 3-5 workdays
Packaging Details: 1pc in box
Product Name: Managed Network Switch
Fiber Ports: 2pcs
Network Ports: 24pcs
Input Voltage: DC 9-36V
Dimension: 1U (483x 275 x 44.5mm)
Safety Class: IP30
Contact Now
Company Info.
Shenzhen Olycom Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

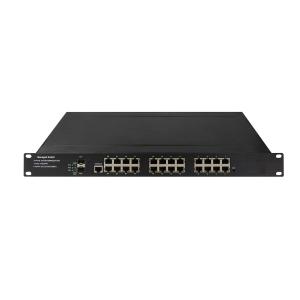

IP30 Industrial Managed Ethernet Switch

Gigabit Ethernet Managed Network Switch With 24pcs Network Ports 1U Rack

Rack-mount industrial switch series support 24pcs 10/100/1000BaseT(X) Ethernet ports and 4 SFP Gigabit fiber ports Max. They provides stable and reliable Ethernet transmission. Supports multiple network management functions including STP / RSTP / MSTP / ITU-T G.8032 ERPS and multiple μ-Ring for redundan cabling, Layer 2 Ethernet IGMP, VLAN, QoS, security, IPv6, bandwidth Control, port mirroring, cable diagnostics and green, Ethernet. The switch housing is designed with rugged rails or rack mounts for harsh environments such as industrial networks, safety automation applications, intelligent transportation systems (ITS), and many military applications. Wide operating temperature range (-40 to 85 ° C) meet the specific needs of industrial automation applications.


Key Features

  1. 24 x 10/100/1000Mbps Auto-sensing TX RJ45 ports ( Port 23 and 24 are COMBO ports)

  2. 2 x 1000Mbps SFP fiber ports

  3. Support cable diagnosis and can locate the fault point

  4. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

  5. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)

  6. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services

  7. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR

  8. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation

  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching

  10. Support IGMP agent report, MLD snooping

  11. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

  12. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

  13. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing

  14. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82


Spectification

Product Name: Managed Network Switch (2F+24TP)

Model No.: IM-FS022400GW

Port: 2 x 1000Mpbs SFP ports (Port FX3 and FX4 are COMBO port), 24 x10/100/1000M UTP RJ45

Standard: IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az

VLAND ID: 4096

Jumbo Frame: 9.6KB

MAC Address Table Size: 8K

Transmission Mode: storage and forward

System Bandwidth: 48Gbps (non-traffic jam)

Network Media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m), 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m), SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs: Power, network, fiber

Power supply: Input voltage:DC 9-36V, Non-polar power input :support

Working Temperature: -40°～ 85°C

Working Humidity: 5%～95%,non-condensing

Safety Class: IP30

Dimension: 483x 275 x 44.5mm

Replacement within 1year; 5 years repairing

Application



Product Size
