10m/Min 7.5KW Hydraulic Punching V Strut Channel Roll Forming Machine Support Making Machine

10-12m/Min V Strut Channel Roll Forming Machine

It is a automatic production line, including 3 tons passive decoiler, servo feeder, hydraulic punching, roll forming, hydraulic cutting, passive output table, spare parts, control box.

1. V Strut Channel Technical Parameter

1.Forming thickness: 2.2-2.5mm,galvanized coils yield strength≤G250MPa

2.working Line speed: 12M/min(not include cutting and punching stop time)

3.Max speed: 3-4M/min include cutting and punching stop time

4.Hydraulic punching device: 1 set

5.roller stations: about 16 stations main roller

6.material of roller: bearing steel, quenching treatment.

7.material of main shaft: 45# fine steel

8.diameter of main axis: ￠75mm

9.main motor power: 7.5kW

10.motor power of hydraulic station: 4KW

11.hydraulic station pressure: 12MPa

12.electric control system: whole line adopted PLC control, Panasonic PLC

13.cutting type: hydraulic drive, cut after forming

14.material of cutting blade: Cr12 , quenching process

15.Drive way: Chain drive

16.Touch Screen--Panasonic Japan

17. Encoder--Omron, Japan

18 Electric parts--Schneider

2. V Strut Channel Machine Components

3. Machine Layout

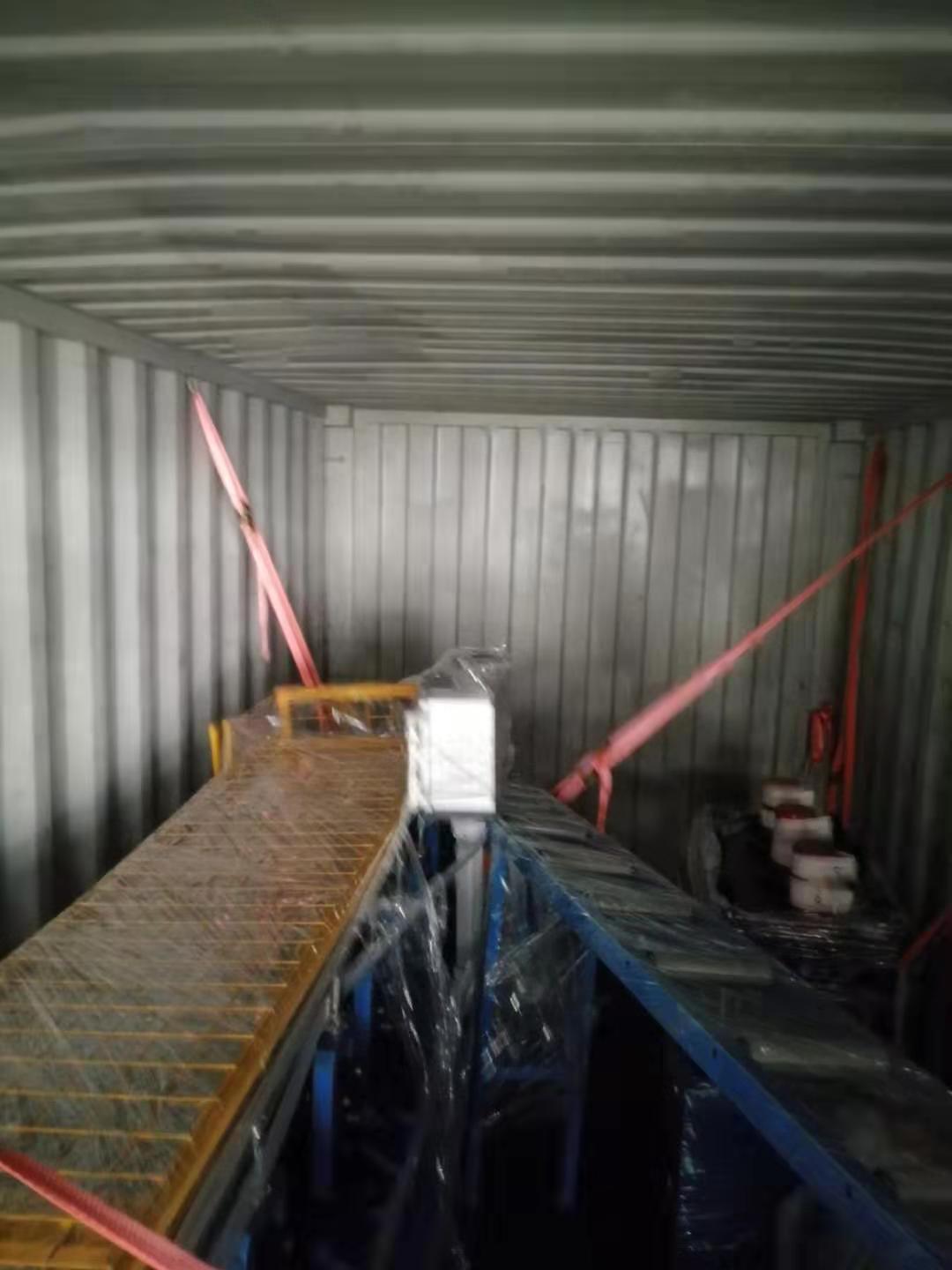

Loading Pictures:

4. Our Services

Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.

1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.

2. Confirm the final decision during the discussion.

3. The sale person will give customer updates for each period during the production process.

4. We finish the machine within the confirmed date, and shipping the goods to customers safely and faster.

5. Provide the right documents to customers.

6. Give the tips(include photos, videos and manual) for installation and operation.

7. If the buyer can not make the installation or machine appeared the problems, if possible, we will arrange our engineer to debug within one week. The charge for technician include the visa, round tickers, food, accommodation and USD100/person/day for salary.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
