4000rpm Single Drum Concentric Cross Binder With 2kw Servo Motor

Categories Fiber Optic Cable Machine
Brand Name: I-suntop
Certification: SGS
Place of Origin: China
MOQ: 1set
Price: By negotiation
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Delivery Time: Min.30working days
Packaging Details: Plastic film+wooden box
Application: For loose tuber binder
Motor: 2kw servo motor
Service: 12month warranty
Voltage: 3-phase 5wire 380V 50HZ
Structure speed: 4000rpm
Bobbin head: 2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

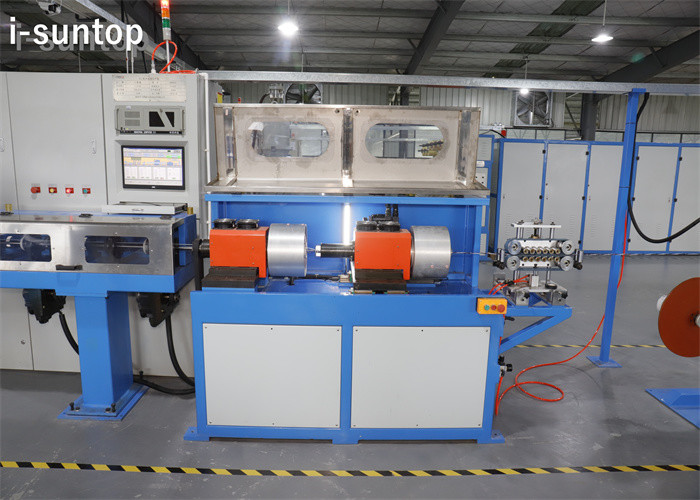

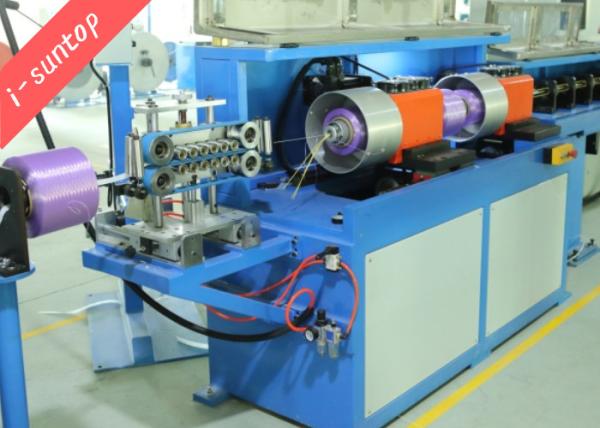

4000rpm Single Drum Concentric Cross Binder With 2kw Servo Motor

Double/Single Drum Concentric Type Cross-Binder (Torsion Device)

i-suntop fiber optic cable machine 20220228.pdf

1. Structure for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):

Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor

Have emergency stop function,the tension can adjust

2. Specification for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):

A. Double-drum concentric type cross-binder (torsion device)

Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor.Have emergency stop function,the tension can adjust

  • Center of the height 1000 mm
  • Yarn bobbin size Ф200×Ф94×170mm(D×d×L)
  • Spare Yarn tool 1pcs
  • Yarn tension 2~10N
  • Structure speed 4000rpm

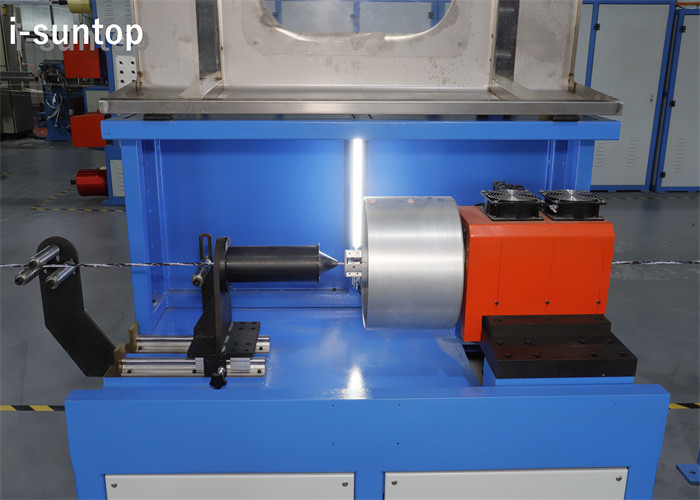

C. single-drum concentric type cross-binder (torsion device)

Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor ,Have emergency stop function,the tension can adjust

  • Center of the height 1000 mm
  • Yarn bobbin size Ф200×Ф94×170mm(D×d×L)
  • Spare Yarn tool 1pcs
  • Yarn tension 2~10N
  • Structure speed 4000rpm

3. Main paramters for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):

Center of the height

1000 mm

Yarn bobbin size

Ф200×Ф94×170mm(D×d×L)

Spare Yarn tool

1pcs

Yarn tension

2~10N

Structure speed

4000rpm
