AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift

Categories Wire Bunching Machine
Brand Name: I-suntop
Model Number: GF-650mm
Certification: SGS
Place of Origin: China
MOQ: 1set
Price: By negotiation
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Delivery Time: Min.30working days
Packaging Details: Plastic film+wooden box
Product name: Wire Cable Twist Bunching Machine
Warranty: 1year
Pitch type: Change gear to change pitch
Power: 7.5kw ,AC380V ±10% 50-60HZ three-phase five-wire
Machine type: 650mm
Conductor diamter: 0.16-1.0mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift

650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

i-suntop Electric wire and cable equipments2022022...

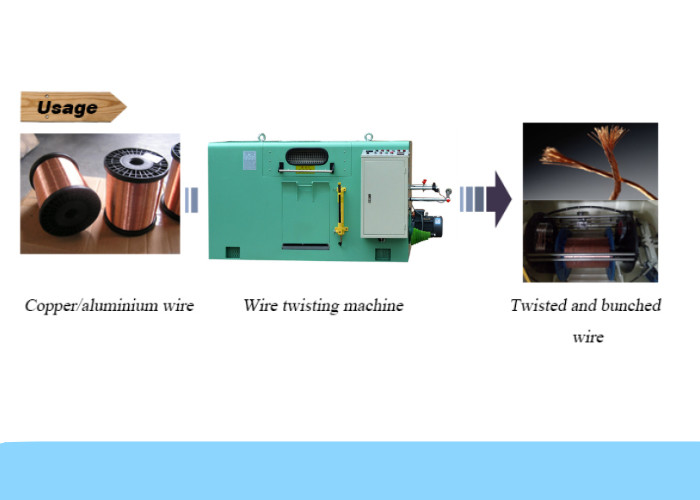

1. Application for 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
650 Double twist bunching machine suitable for more than 7 nos copper wire twisting ,the single wire diamter range is 0.15-1.0mm. Max finished section area will be 10mm2 (usual is 6mm2)
2. Technical parameters for
650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

ModelGF-650
Wire.OD(mm)Φ0.16-1.0
Twisted pitch(mm²)6.0
Twisted pitch(mm)5.68-57
Copper weight(kg)400
Arch rotating(t/min)1800
Twisted directionS/Z
Take-up tensionFriction/clutch
Tension controlSpring actuated/automatic
Motor power(kw)7.5
Machine diameter2850*1500*1600
Machine weight23000

3. The feature of 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

  • PLC+touch screen operating

  • SAFETY FRAME

  • SEASY MAINTENANCE

  • Less noise

  • HIgh Stable running

  • Bobbin lift by electric lift or hydralic (optional)
