| Categories | EV Battery Connector |
|---|---|
| Brand Name: | Neopower |
| Model Number: | C989 |
| Certification: | CE IEC FCC RoHs |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | Negotiable according to Quantities |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 50000 per day |
| Delivery Time: | 3~7 days |
| Packaging Details: | Standard Export Carton Box |
| Rated Current: | 40A (6mm2), 30A (4mm2) |
| Rated Voltage: | 1000V DC |
| Insulation Resistance: | ≥2000mΩ(power),≥1000mΩ(signal) |
| Dielectric Withstanding Voltage: | 3000V AC (power), 1000V AC(signal) |
| Wire Range: | 4 mm2~6mm2 |
| IP Rating: | IP67&IP6K9K |
| Operation Temperature: | -40 ℃ ~+125 ℃ |
| Salt Spray Resistance: | 144H (mating state) |
| HVIL: | Yes |
| Shell: | Plastic |
| Angle: | Straight Angle |
| Company Info. |
| Neo Power Energy Tech Limited |
| View Contact Details |
| Product List |
Secondary lock function
Cable range: 4~6mm2
Poka-yoke
HVIL
Touch-proof
360°shielding
| Rated Current: | 40A (6mm2), 30A (4mm2) |
| Rated Voltage: | 800V |
| Insulation Resistance: | ≥2000mΩ(power)≥1000mΩ(signal) |
| Dielectric Withstanding Voltage: | 3000V AC (power), 1000V AC(signal) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67&IP6K9K |
| Application: | Oil Pump Controller, Air Pump Controller, OBC, PDU |

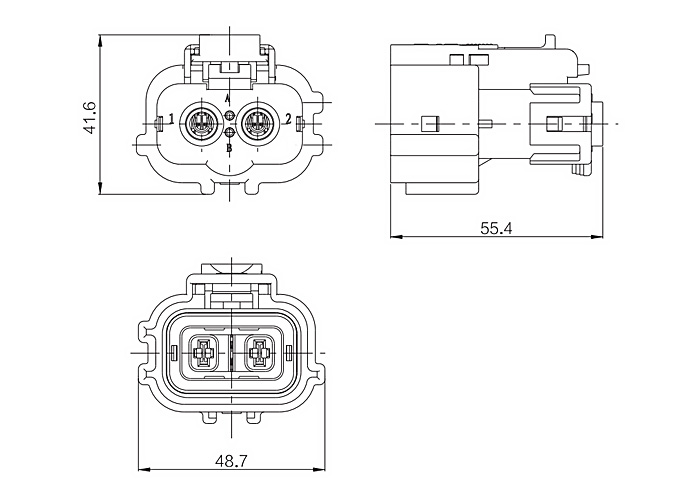

C989 3pin 180°plug

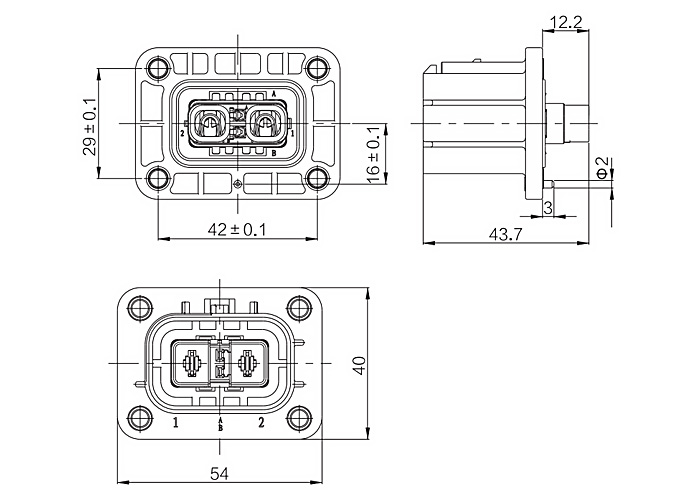

C989 3pin 180° receptacle
C989 3pin 180° receptacle mounting holes
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
|
