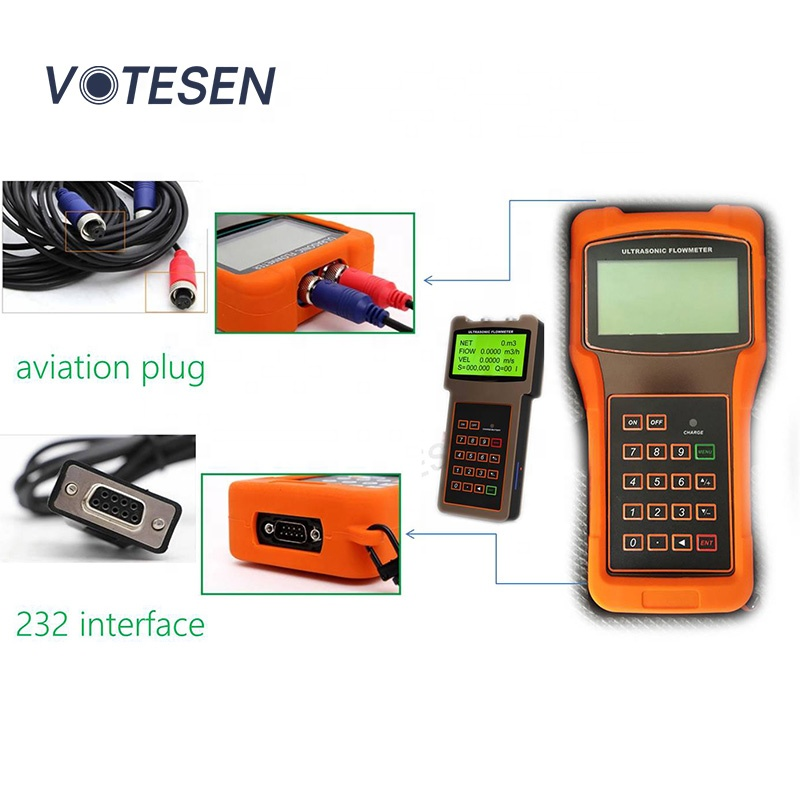

LCD Display Ultrasonic Pipe Flow Meter RS232 Clamp On Portable

VUS700 LCD display Clamp on Portable ultrasonic flowmeter price

The handheld ultrasonic flowmeter is a patrol-type flow measuring instrument. The sensor has only one clamp-on type, which realizes non-contact measurement. The sensor is installed on the outer wall of the pipeline to complete the measurement of the flow. It has a small volume and convenient carrying. Measure accurate features.

Features

Wide measuring range

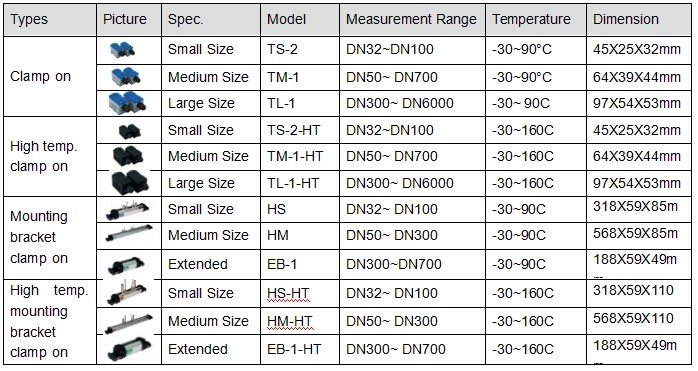

• The transducer can be optional, pipe size from DN15-6000mm

Language

• Chinese, English, Italy, other languages can be customized.

LCD display

• Contents like Instantaneous flow, accumulated flow (positive, negative, and net) velocity, working status etc.

Built-in data logger

• Built-in 24K data logger could store over 2000 measuring data.

No need to cutoff water, no pressure loss No need to cutoff water, no pressure loss
Measuring range: DN35~DN6000 Measuring range: DN35~DN6000
Fluid temperature:-30~160 °C Fluid temperature:-30~160 °C

Improve installation accuracy, shorten installation time

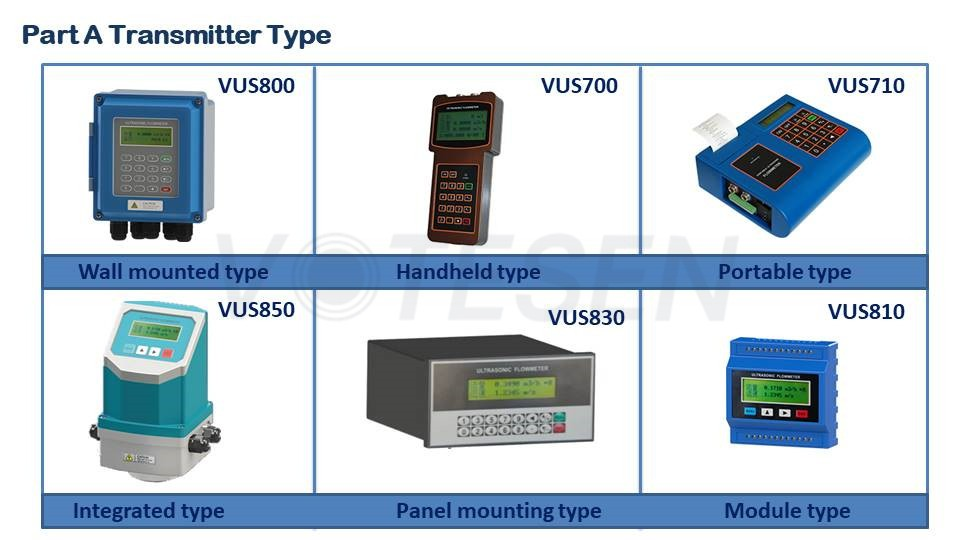

ALL ULTRASONIC FLOW METER TYPE WE SUPPLY

If you are interesting, feel free to contact us.

Looking forward to get cooperation wiht you!
