FTTH ESC250d Field Assembly Quick Connector SC UPC Fiber Connector

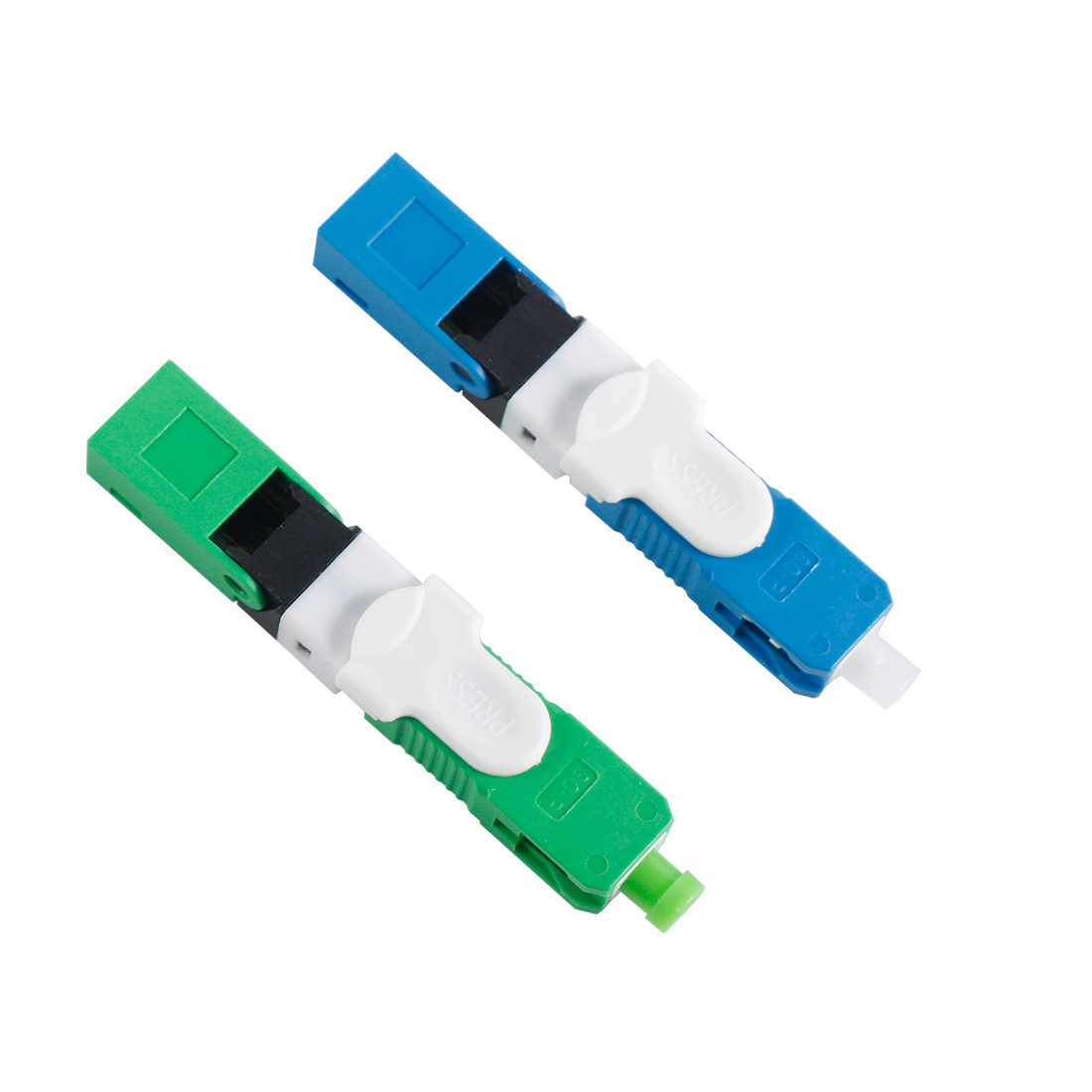

FTTH ESC250d SC / UPC Field Assembly Quick Connector Fiber Optic Fast Connector

SL Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Feature:

1.Low insertion loss
2.High return loss (low amounts of reflection at the interface)
3.Ease of installation
4.Low cost

Application:

1.CATV
2.Active device termination
3.Telecommunication networks
4.Metro
5.Local Area Networks (LANs)

Details:

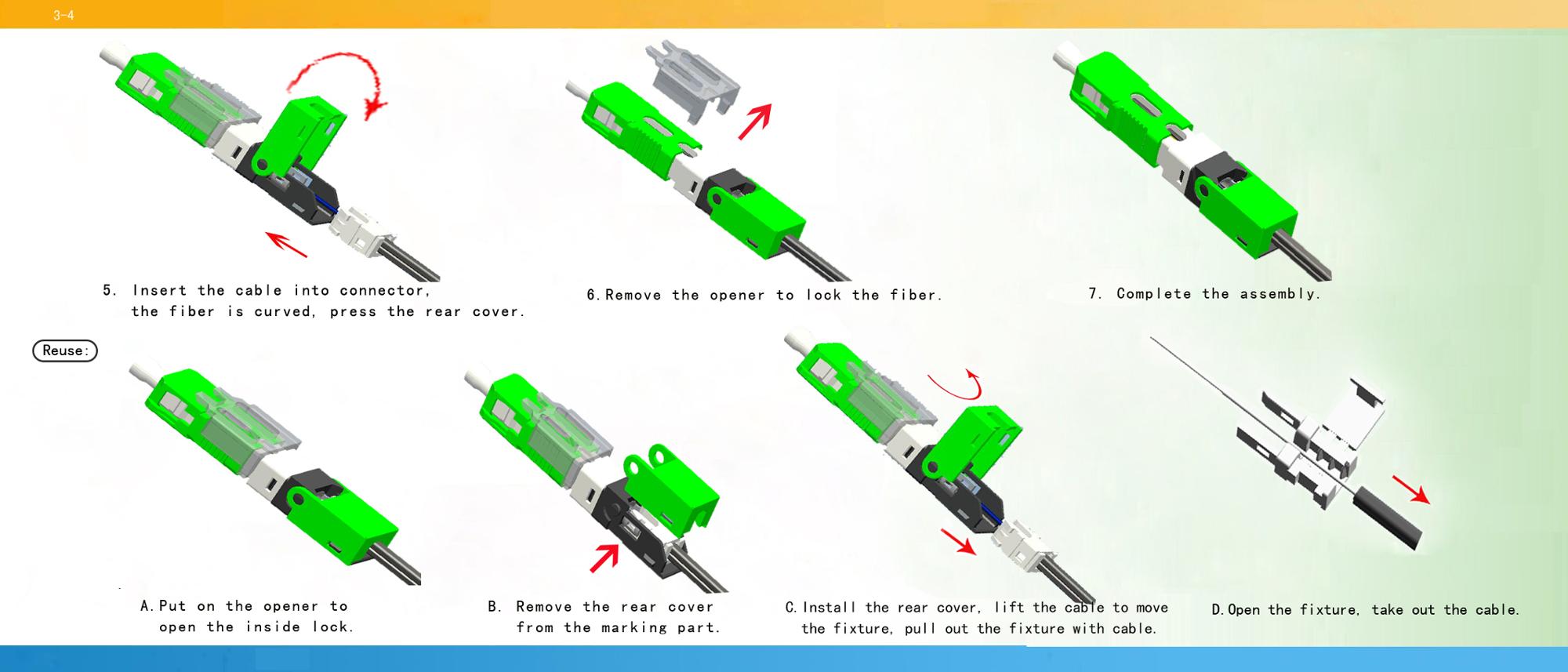

Installation Introduction:

Assembly of the connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. They don’t need to polishing, no epoxy, No electrical power supply, no fused the fiber. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.

• FTTH Drop cable stripper, To strip the Bow type 2x3mm Drop cable
• 0.9mm/2.0mm/3.0mm Fiber Cable Stripper. To Strip those round cable and bare fiber of 2x3mm Drop cable
• Fiber cleaver to cut the fiber of Cable&Fiber
• Use the Length guard board cut the fiber in requested length,.
• Alcohol, For Fiber Clean after cut
• Cleanroom Wipes, for Fiber Clean after Alcohol Cleaned.

Other Type of Connectors.

SL is one of the most advanced and capable factories to produce copper cable, fiber optic cable and telecom accessory. Beging at year 2008 , starting from network LAN cable, Gradually expending to 2012 year, adding the fiber optic production line, in Year 2015 we enter the production for fiber optic termination box and other telecom accessory.

We provides versatile end-to-end fiber optic and copper solutions.

Fiber solutions include fiber optic cables, fiber optic patch cord, fiber patch panel, fiber optic termination box， data center products, Cabinet , MPO/MTP, fiber optic accessories for indoor and outdoor applications.

The copper offerings comprises shielded and un-shielded LAN cables, Power Wires, Alarm Cables, CCTV wires, patch panel, keystone jack, patch cord and accessories.

As a result, our structured cabling products, server racks, and IT management accessories have already been implanted into the world-class data center and modern commercial buildings for decades.

SL have two factory, cable factory is located in Dongguan, Guangdong province , accessory factory is located in Hangzhou, Zhejiang.

Our factory have more than twenty production lines and three hundred employees. Our annual revenue is more than 8 million USD.Our company has obtain the certificate of ISO9001, CE and ROHS, etc.

For the past decades, SL have been continusly developing our production system and quality control standards,and creating professional engineering teams and service teams to meet customers demand.

Our products have been widely installed in projects of China Telecom, national defense, electricity, railway, highway, mining and oil fields. By exporting agent our products are widely used in more than seventy countries include EU, north America, south America, Africa, Middle East and Southeast Asia, East Europe, Australia, etc.

Our company has established a closely relationship with many Telecom companies. We sincerely look forward to establish long business relationship with all clients from all over the world and create a splendid future.

In our business, quality is everything. Professional team, powerful factory and strict quality control can give best service to every partner. Anywhere and anytime, we wait here to be your long partner!
