| Categories | Bulk Material Handling Equipment |
|---|---|
| Brand Name: | SSI |
| Model Number: | Customized |
| Certification: | manufacture certificate |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | US $500,000-1,000,000/ Set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
| Delivery Time: | 6 months after receipt of advance payment |
| Packaging Details: | Wooden case or bare |
| capacity: | 2000 t/h |
| product: | belt conveyor |
| painting: | PPG |
| color: | orange |
| motor: | Seimens |
| steel structure: | SA2.5 |
| character: | reliable |
| material: | high quality steel |
Heavy duty Conveyor Belt for Bulk Material Handling Conveyor belt Tailor Made Belt Conveyor
The SSI conveyor belt is mostly engineered, disigned, and maunfactured according to client`s technical specifications. This process allows us to create that will be the exact length and width at the angle required for your specify scenario.
Specification of bult conveyor
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) | Diameter of pulley(mm) | Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |

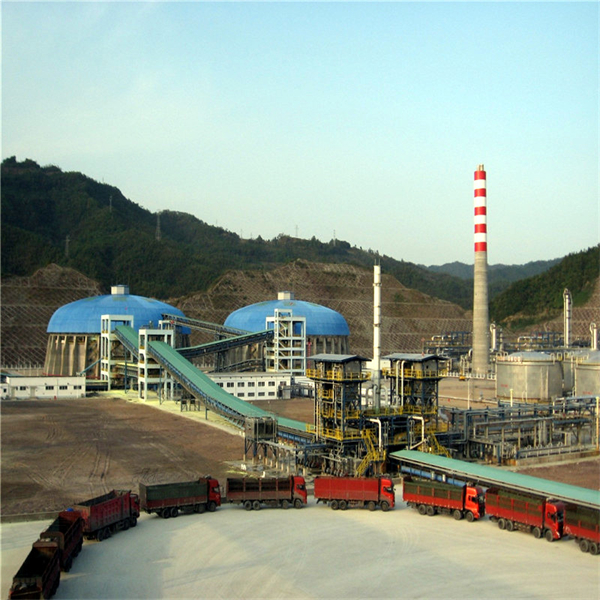

Case1
Case2
