| Categories | Wall Mount Distribution Box |
|---|---|
| Brand Name: | YOULIKE |
| Model Number: | BL flush |
| Certification: | CCC |
| Place of Origin: | Guangdong, China |
| MOQ: | 100pcs |
| Price: | 5-50USD |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 400000pcs/month |
| Delivery Time: | 10-20 working days |
| Packaging Details: | in color box or neutral carton |
| Item name: | 32 way MCB distribution box |
| Material: | powder coated steel for body ,HIPS for cover |
| Way dimension: | 18mm |
| Protection level: | IP40 |
| Rated frequency: | 50-60HZ |
| Terminal dimension: | 6x10.4mm |
| Certificates: | CE,CCC |
| Application: | indoor /outdoor |
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Product Specification

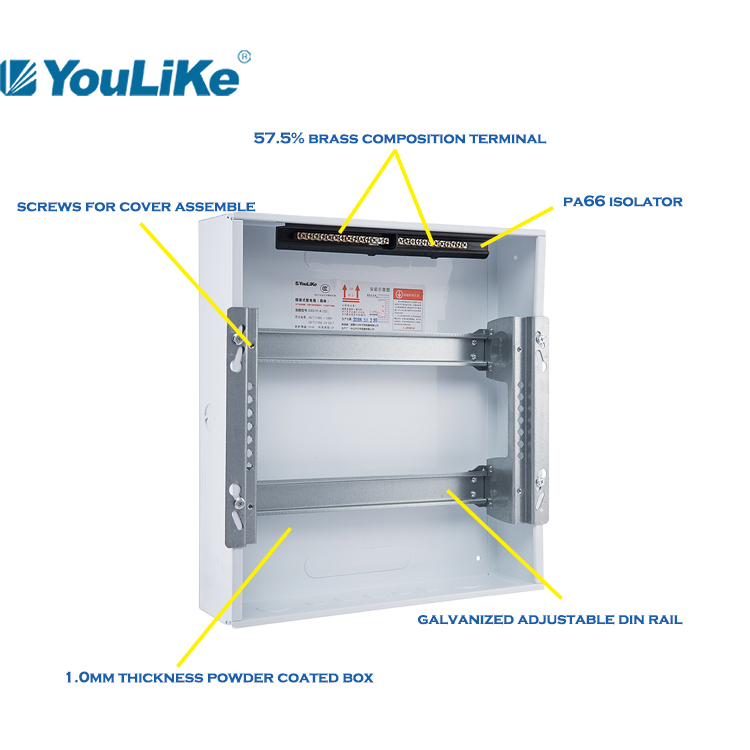

1. Base box to be powder coated steel, 0.8mm for 1rows, 1.0mm for 2rows.

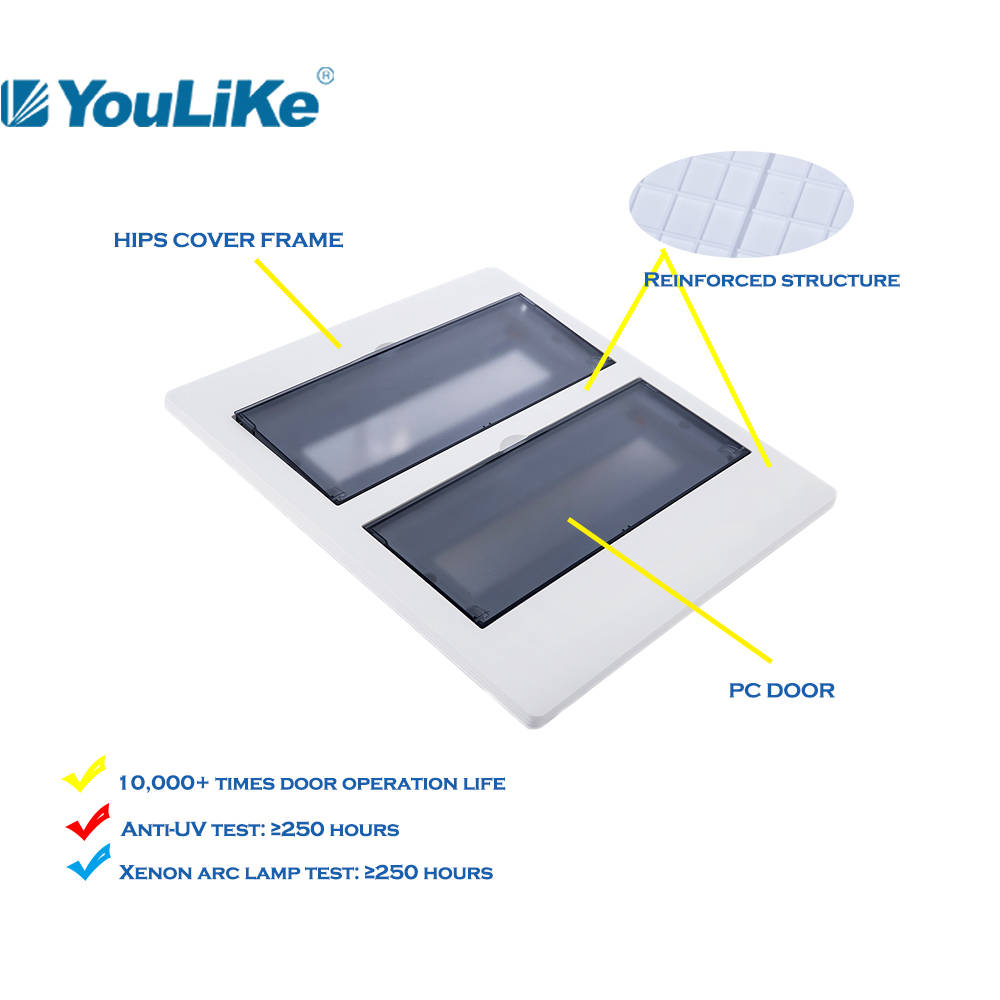

2. Cover frame to be HIPS material.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The protection level reaches IP40
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
| Series | BLP-A-232 |
| Color | white |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 375*405*17.5(28.3)mm |
| Accessories | bolt, din rail, terminal |
| Application | electrical distribution box |
| OEM | offered |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BL series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
Product Details
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
