| Categories | Clamp on Current Transformer |
|---|---|
| Brand Name: | HEMEI |
| Model Number: | HM-CTC1535 |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | USD30~100/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000PCS/MONTH |
| Packaging Details: | Standard Carton |
| Application: | Electronic, Instrument, Audio, Lighting |
| Phase: | Single |
| Insulating Medium: | Epoxy Resin |
| measurement range: | 0.1A-1000A |
| Output: | 500mA |
| Turns Ratio: | 2000t |
| Installation: | Active Type |

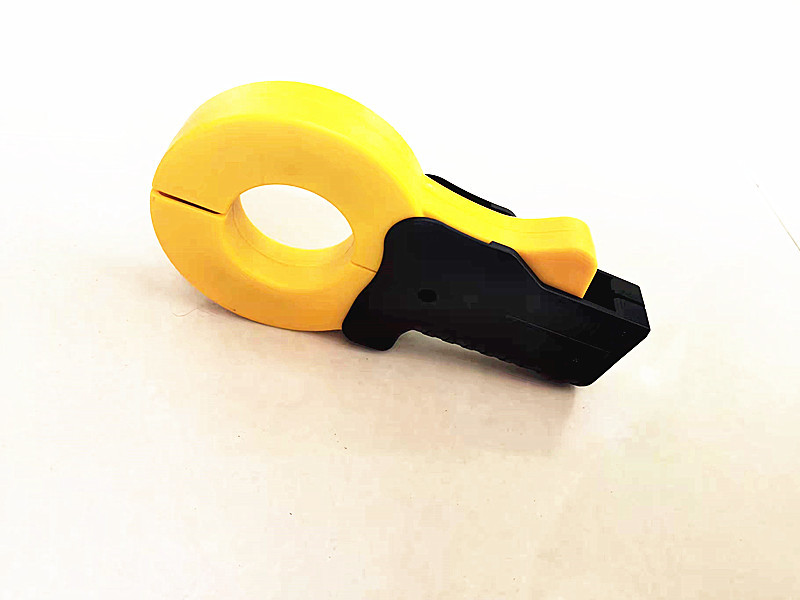

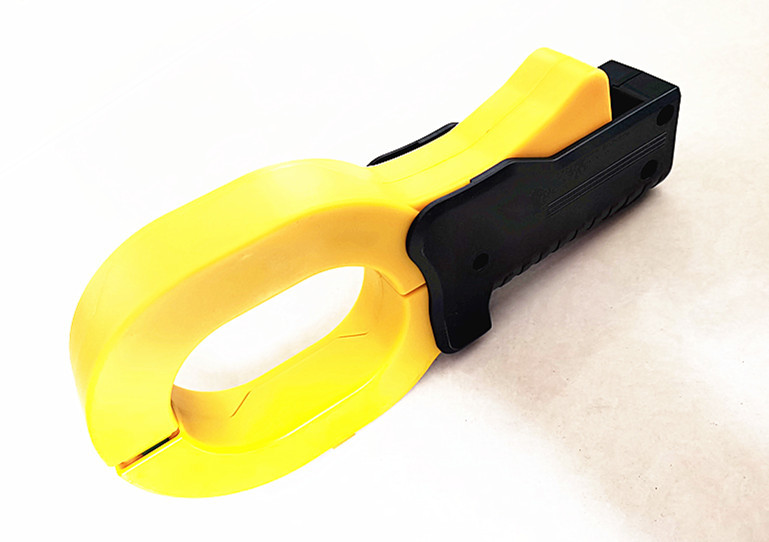

Current Clamp for AC Current 1000A/5A AC Clamp on Current Transformer Ce UL Clamp Type Leakage Current Sensor
The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.split core current transformers have been specifically designed to be mini size which implement the installation of small space, calmp-on design could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.
