1.5KW SGS Jewelry Spot Laser Welding Machine High Speed 280KG

Categories Spot Laser Welding Machine
Brand Name: PDKJ
Model Number: 1500W
Certification: CE ISO SGS
Place of Origin: CHINA
MOQ: 1 unit
Price: USD 15000-35000 per unit
Supply Ability: 100 unit per month
Delivery Time: 7-27 days
Packaging Details: Wooden Case
Laser source brand: Raycus
Application: Metal Welding
Key Selling Points: Easy operation and High accuracy
Cooling Chiller: Dual chiller for laser source and welding head
Applicable material: Stainless steel;Galvanized sheet;Aluminum plate
Low running cost: 1-2kw/h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1.5KW SGS Jewelry Spot Laser Welding Machine High Speed 280KG

Handheld Automatic Wire Feeding Fiber Laser Welding Machine For Copper

Laser control system

The 8-inch touch screen can adjust the laser control mode and laser power in real time, which is convenient and practical

Constant temperature refrigerator

High efficiency compressor, water pump, overtemperature alarm, flow protection

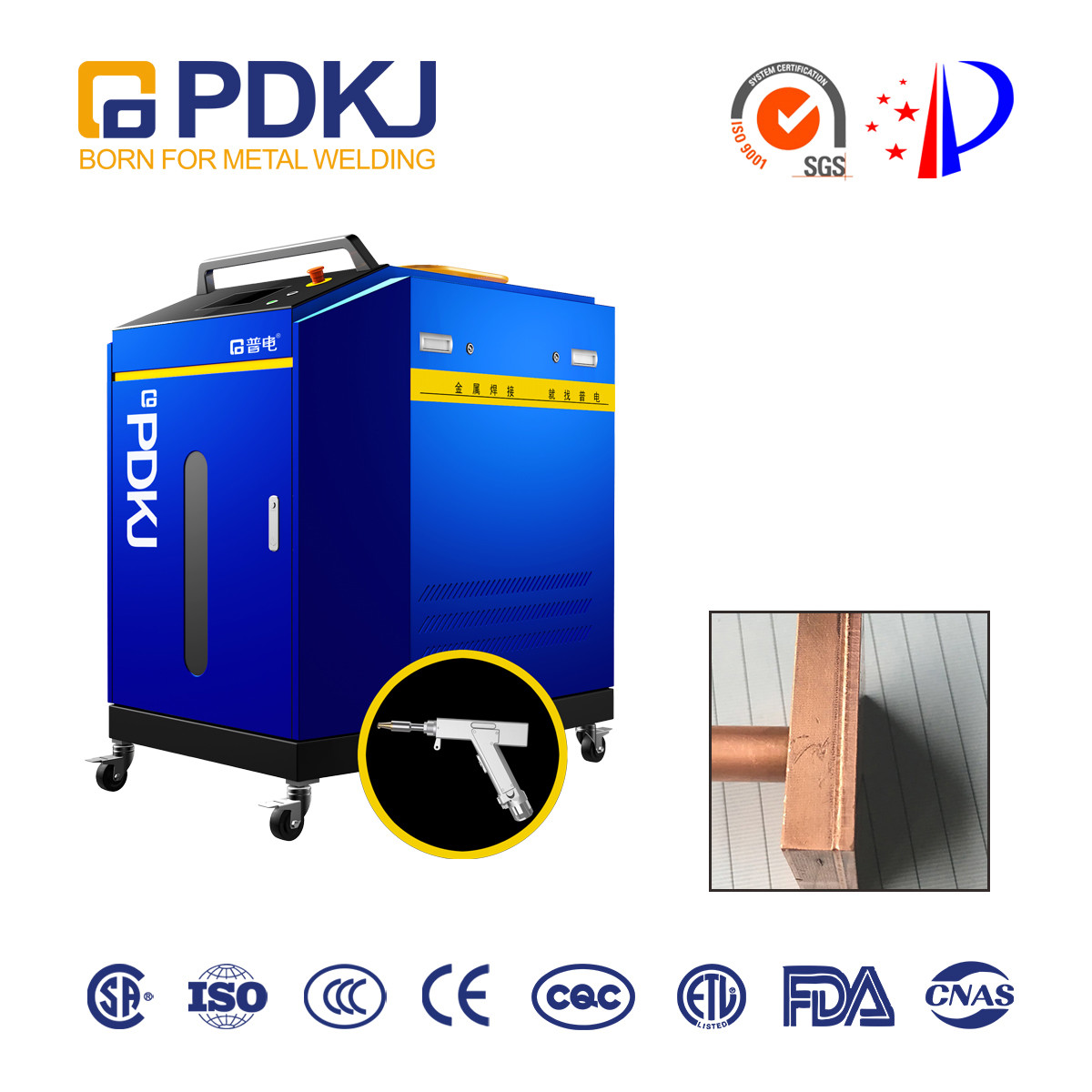

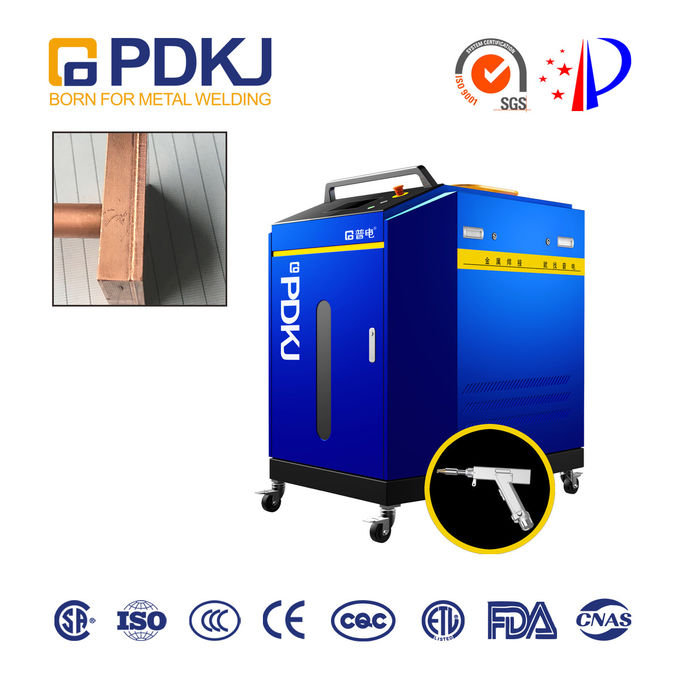

Handheld laser welding machine


The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.


01.The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year


02.Laser welding has the advantages of low material consumption and long service life


03.The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost


04.No deformation, no weld mark, firm welding


05.The self-developed swing welding head makes up for the disadvantage of small laser spot, expands the tolerance range and weld width of the workpiece, and achieves good weld forming effect.

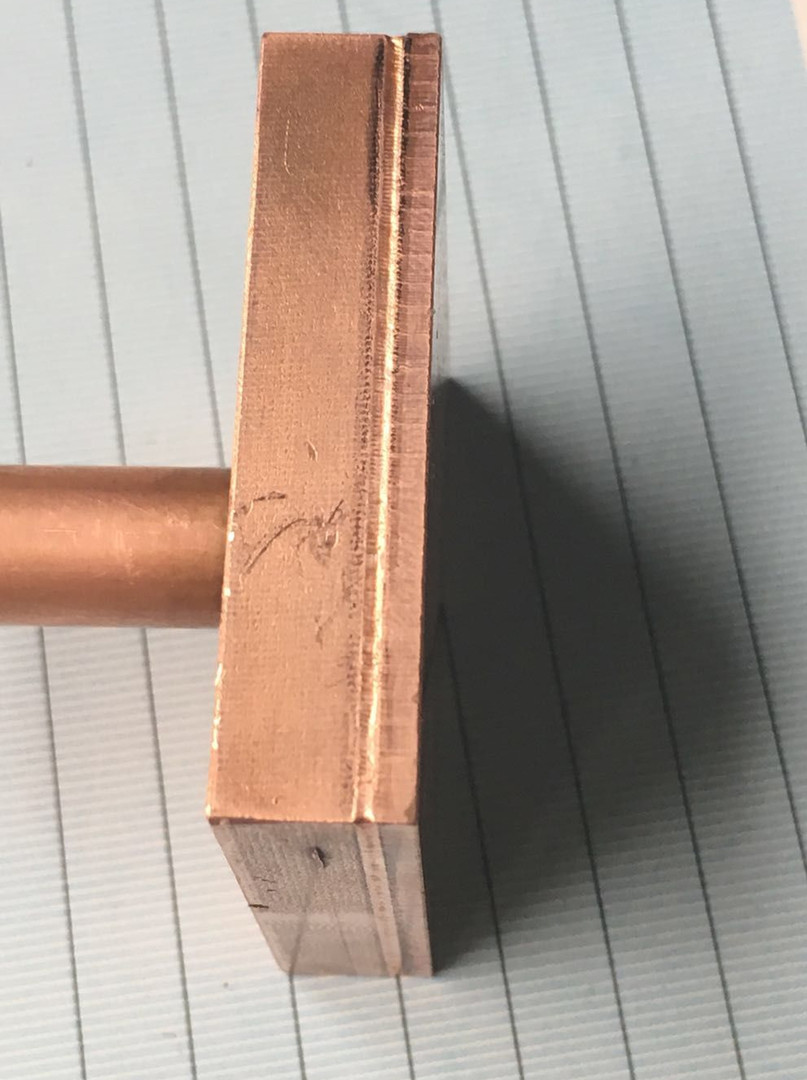

Welding material: copper
Material thickness: < 3mm
Associated product name: part
Industry: New energy application industry
Process recommendation: laser welding


Specifications:


ProjectParameter
Equipment nameHand held continuous laser welding machine
Fiber line lengthStandard configuration 10m (customized length up to 15m)
control modelTTL level/ GUI
Cooling systemWater cool/All in one constant temperature
Working environment temperature range15-35°C
Recommended welding thickness0.1-5mm
ConsumablesProtective lenses

Comparision:

Projectconventional argon arc weldinglaser weldingPDKJ handheld optical fiber welding
heat input to workpiecevery highlowlow
deformation and undercut of workpieceLargesmallsmall
bonding strength with base metalGeneralOKvery good
subsequent processinggrindingno or little grinding is neededno or little grinding is needed
welding speedGeneralmore than 2 times of argon arc weldingmore than 2 times of argon arc welding
applicable materialsstainless steel / carbon steel / galvanized sheet / aluminum alloy / copperstainless steel / carbon steel / galvanized sheet / aluminum alloy / copperstainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
consumablesmultiplelessless
operation difficultycomplexGeneralSimple
operator safetyunsafeSecuritySecurity
impact of environmental protectionnot environmentally friendlyenvironmental protectionenvironmental protection
The brightness of light spot is adjustablenonenoneYes
welding qualitypoorGeneralvery good

Applicaton recommendation :


Parameter name1500W
Input power220V
Automatic wire feedingYes
bonding strength with base metalOK
Welding gun modelA/B/C Optional
Laser wavelength1064nm
Overall power2500W
welding interval requirements<0.5mm
Aiming and positioninginfrared
Robot automatic welding interfaceYes
Welding capacity / aluminum0.2-3MM
Welding capacity / carbon steel0.2-4MM
Welding capacity / stainless steel0.2-4MM
Weight280KG
Overall dimension1000*720*1300MM

Application:

Advantage: Easy to use, beautiful welded seam, fast welding speed
Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries


Serial numbernameSpecificationsquantityCompanyremarks
1Laser welding hostIntegratedonesetStandard configuration
2CW fiber laser1000WoneplatformStandard configuration
3cooling-water machineconstant temperatureoneplatformStandard configuration
4Laser control systemTouch screenonesetStandard configuration
5Double pendulum multifunctional handheld welding gunT-typeoneindividualStandard configuration
6Double drive multifunctional wire feeder0.8-1.6mmoneplatformStandard configuration
7Stainless steel welding wire1mmonediscStandard configuration
8IO robot connection supporting control systemPDKJ-PW353onediscStandard configuration

FAQ
1. Who are we?
We are based in Dongguan, China, start from 2006,Oversea sell to North America(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Domestic Market(20.00%),South America(10.00%),Northern Europe(10.00%). There are about 11-50 professional Engineers in our office.

2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Spot welding machine, projection welding machine, resistance welding machine, laser welding machine, Auto welding robot and welding machine spare parts like transformer, controller and electrode etc.
