Intelligent 80A MPPT Solar Controller , 80 Amp MPPT Solar Charge Controller

Categories	MPPT Solar Controller
Brand Name:	LEEHO
Model Number:	LH-MP-80
Certification:	IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin:	china
MOQ:	1
System voltage::	12V/24V/36V/48V(Adaptive)
Rated Current::	80A
Display::	LCD Screen
Operating temperat:	20℃~+50℃
Type::	MPPT
Work Time (h)::	Continue
Warranty::	2 YEARS, 2YEARS
MPPT efficiency::	99%
Control Mode::	Intelligent Control
Charge mode::	MPPT Maximum Power Point Tracking

Contact Now

Add to Cart

Company Info.

Maanshan Ruizi Energy Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

80A mppt solar controller mppt solar charger solar mppt controller solar mppt charge controller solar charge controller

Product Paramenters

Model		40A	60A	80A	100A
System voltage		12V/24V/36V/48V(Adaptive)
Nominal current		40A	60A	80A	100A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging
Charging method		Three stages: constant current, constant voltage, floating charge
PV input maximum open circuit voltage (VOC)		DC150V
Starting time		≤10s
Dynamic response recovery time		≤500us
Static power		≤1W		≤1.2W
Overall efficiency		≥98.5%		≥99.5%
System identified voltage	12V	8～16V
	24V	17～30V
	36V	30～42V
	48V	42～64V
Photovoltaic input voltage	12V	17～150V
	24V	30～150V
	36V	41～150V
	48V	53～150V
Solar panel rated input power	12V	540W	800W	1040W	1300W
	24V	1080W	1600W	2080W	2600W
	36V	1620W	2400W	3240W	3900W
	48V	2160W	3200W	4160W	5200W
Load voltage		Same as the battery voltage
Nominal load current		40A	60A	80A	100A
Load control method		Normally on&off mode
Load undervoltage protection		10.5V*N(N stands for batteries number)Parameters can be adjustable
Display		HD LCD backlight display
Protections		Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection
Working temperature		▬20℃～+50℃
Storage temperature		▬40℃～+70℃
Accoustic Noise(db)		≤50dB
Humidity		0～90%RH
orking altitude		0～3000M

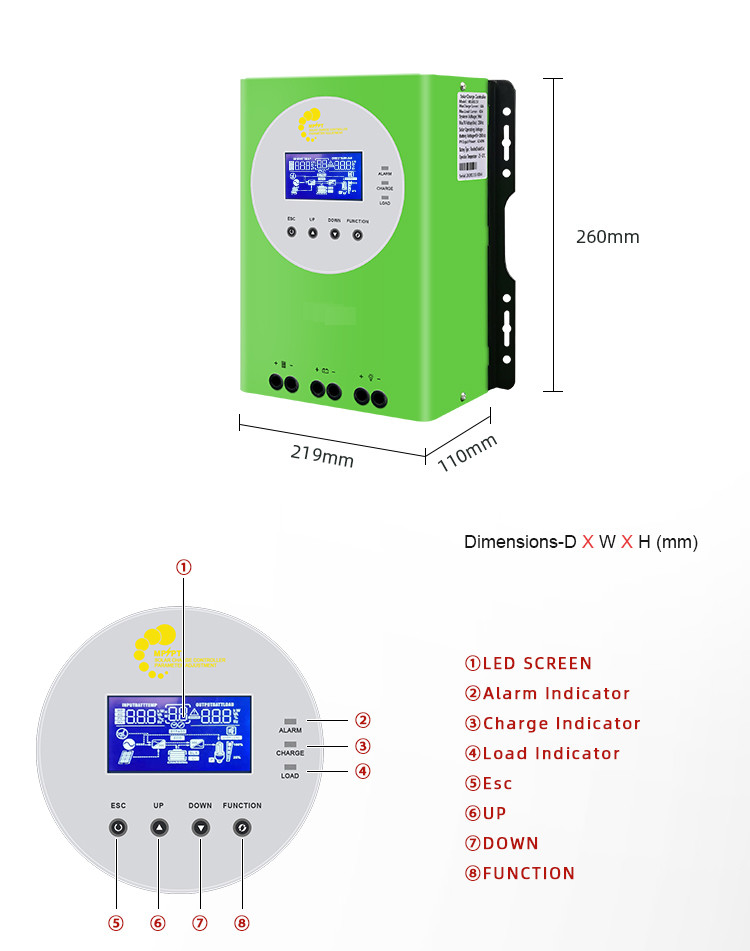

Dimension, L×W×H		180300110mm		440325120mm
Net Weight(KG)		4.3KG		9.46KG
