Fiber Optic Patch Cord Simplex And Duplex

FIBER OPTIC PATCH CORD SIMPLEX AND DUPLEX NORMAL TYPE

Dawnergy’s fiber optic patch cords are available in either single mode or multi-mode for various applications such as long-haul telecommunication networks, short-link systems and equipment-to-equipment data links.


Features

  • Low insertion loss
  • High return loss
  • Good repeatability
  • High temperature stability

Optical Cable Drawing



Patch Cord Specification

ParametersSpecifications
Fiber TypeSM (G652D, G657A) or MM (OM1~OM5)
Insertion Loss (dB)≤ 0.3
Return Loss (dB)≥ 50 (UPC), ≥ 60(APC), ≥ 30 (MM)
Connector TypeSC/FC/LC/ST/E2000 or customized
Fiber CoresSimplex or Duplex
Outer Dimension2mm or 3mm
Material of Outer JacketPVC, LSZH or customized
Cable Length1m,3m,10m or customized
Durability (dB)△IL≤ 0.2, 500 times plugging
Repeatability (dB)≤ 0.2
Temperature Range (℃)-40 ~ +85

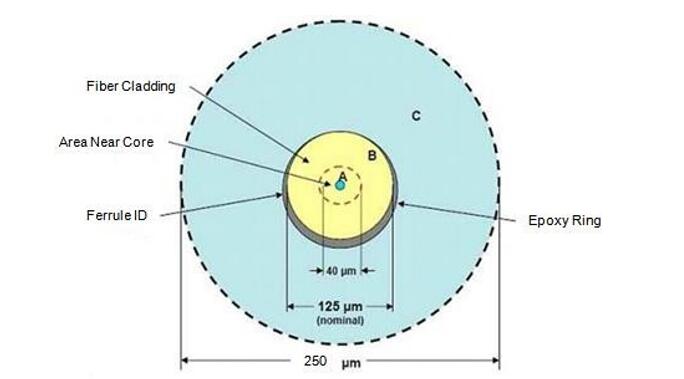

Ferrule End Face Inspection Criteria

Defects

Zone A

(Area Near Core)

≤40um

Zone B

(Cladding)

40~125um

Zone C

(Coating)

125~250um

Scratch (width)NoneLight scratch (white): None>3um: None
Dark scratch (black): None
Pits & Irremovable material (Diameter)None

≥2um: None

<2um: 2pcs allowed

≥10um: None

<10um: total<20um

Chipping (Diameter)None
Crack/dust/contaminationNone
Epoxy ringWidth<2um, total length≤1/2 fiber diameter

Ferrule End Face Geometry Parameters

ParametersUPCAPC
Radius of Curvature10~25mm5~12mm
Fiber Undercut or Protrusion≤ 100 nm≤ 100 nm
Apex Offset≤ 50 μm≤ 50 μm
Polishing Angle8 +/- 0.3 degree

Order Information

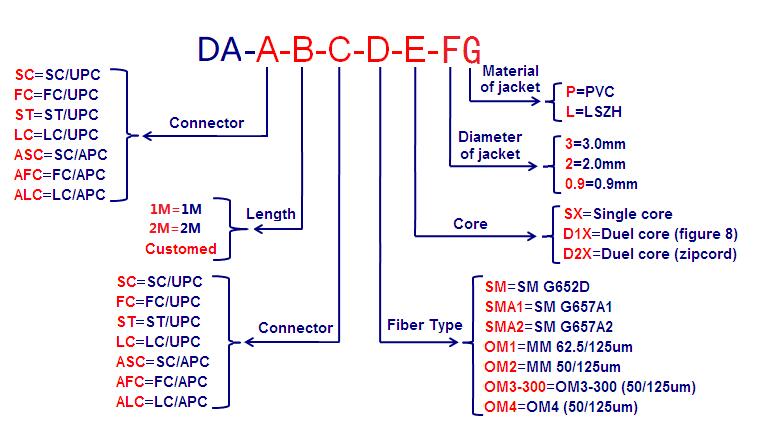

Example: DA-ASC-3M-ASC-SM-D1X-2L

SC/APC-SC/APC; Length: 3M (tolerance: 0~0.1M); SM, G652D; Duplex (figure 8); 2.0mm LSZH jacket
