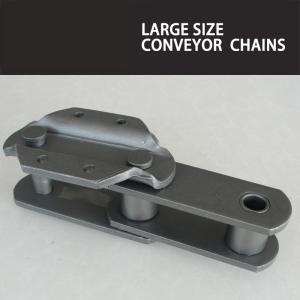

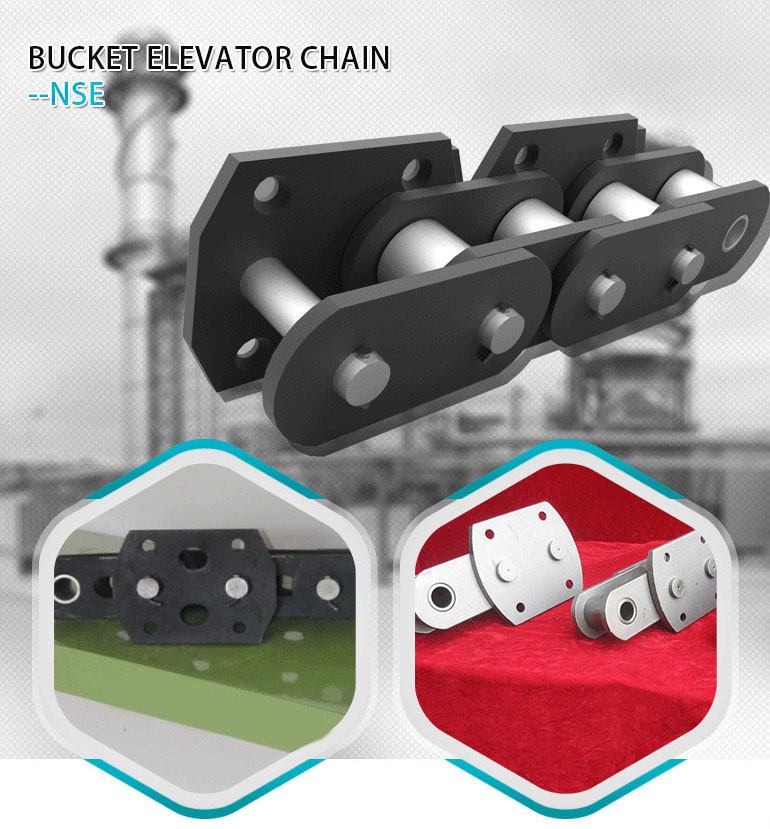

NE NSE Central Bucket Elevator Conveyor Chain Pitch 76.2mm To 150mm

NE NSE Lifting Chain Central Bucket Elevator Chain

Quick Details

Finish:Black, Plain

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:NE NSE

Structure:Welded Chain

Function:Conveyor Chain

Standard or Nonstandard:Standard

Name:bucket elevator chains

application:Mine,Coal,Mine,Steel,Grain,Food, Machinery, cement industry

conveyor chain type:conveyor chain with attchment

OEM or not:Could OEM size

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

surface treatment:shot peening

Oil:Good lubrication

Delivery in time:35-45 days

size&capacity:pls reference to the form

Specification

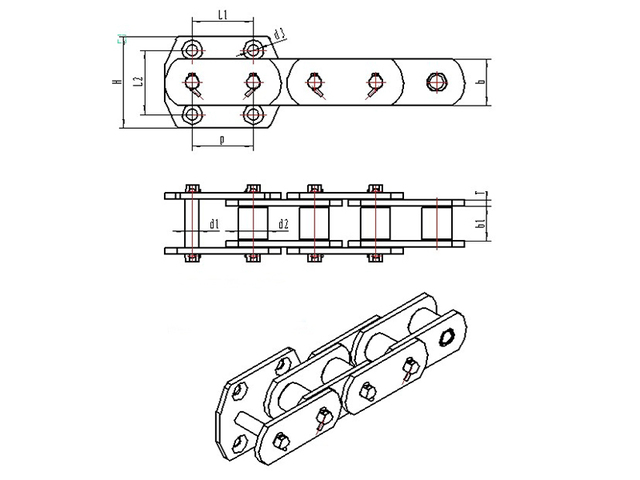

Chain NO.	Pitch P	Inner link inner width b1	Roller diameter d2	Pin diameter d1	Plate height h	Plate thickness T	Installation dimension L1*L2	Hole diameter d3	Attachment H
	mm
NSE50	76.2	36.5	36	15.5	50	8	75*80	14	120
NSE200	100	51.8	44.5	19.1	60	10	100*105	18	150
NSE300	100	57.6	48.5	22.2	75	10	100*105	18	150
NSE400	125	67.4	63.5	31.75	90	12	125*130	18	180
NSE500	125	67.4	63.5	31.75	90	12	125*130	18	180
NSE600	125	75	70	35	100	16	125*130	18	180
NSE700	150	80	75	38.5	115	16	160*150	22	210
NSE800	152.4	82.5	80	41	115	16	152.4*150	22	210
NSE1000	150	88	82	44	125	16	150*160	22	230

Chain NO.	Pitch P	Inner link inner width b1	Roller diameter d2	Pin diameter d1	Plate height h	Plate thickness T	Installation dimension L1*L2	Hole diameter d3	Attachment H
	mm
NE15	101.6	27	26.5	11.5	35	6	40*90	12	K
NE30	152.4	36.5	36	15.5	50	8	60*120	14	K
NE50	152.4	36.5	36	15.5	50	8	75*70	14	110
NE100	200	51.8	44.5	19.1	60	810	100*80	18	125
NE150	200	57.6	480.5	22.2	75	10	100*80	18	125
NE200	250	67.4	63.5	31.75	90	12	140*100	18	150
NE300	250	75	70	35	100	16	140*100	18	150
NE400	300	80	75	38.5	100	16	170*120	22	180
NE500	300	82.5	75	38.5	115	16	170*120	22	180
