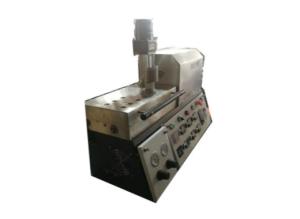

Stainless Steel Twin Screw Extruder Machine For Pipe Sheet Granules

Categories Mini Lab Extruder
Brand Name: RUIMING
Model Number: SJZS
Certification: patent
Place of Origin: China
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 30-90DAYS
Packaging Details: carton box and wooden box
Supply Ability: 200 sets per month
screw type: twin screw
material: stainless steel
feeding: two feeders
Main motor power( kw): 2.2
Heating power (kw): 4.5
Nitrogen protection: have
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stainless Steel Twin Screw Extruder Machine For Pipe Sheet Granules

Twin Screw Extruder Machine Products With Plastic Pipe And Sheet Granules

Parameters of Twin Screw Extruder Machine


Key Technical ParametersSJZS-7ASJZS-10ASJZS-10BSJZS-10Z
Screw diameter (mm)7/2510/3010/3010/30
Screw thread length (mm)190190250190
The screw rotation speed (rpm)70515151
Barrel formCan openCan openCan openCan open
Main motor power( kw)0.550.750.750.75
Circulating extrusion dosage (g/per time)5-10(manual control)15-18(auto control)15-18(auto control)without
Direct extrusion dosage (max kg/h)0.451.51.51.5
Heating temperature (max ℃)450450450450
Feed 1 power (W)without25(optional)2525
Feed 2 power ( W)withoutwithout25without
Power of vacuum exhaust and dehumidification device (W)withoutwithout180(optional)without
Nitrogen protectionhavehavehavehave
size (mm)800X350X580800X350X580850X350X580800X350X580

Key Technical ParametersSJZS-20SJZS-20A
Screw diameter (mm)20/4020/53
Screw thread length (mm)390480
The screw rotation speed (rpm)0-5051
Barrel formDo not openDo not open
Main motor power( kw)1.52.2
Circulating extrusion dosage (g/per time)withoutwithout
Direct extrusion dosage (max kg/h)66
Heating power (kw)4.55
Feed 1 power (W)25(optional)25
Feed 2 power (W)without25
Power of vacuum exhaust and dehumidification device (W)250(optional)250(optional)
Nitrogen protectionhavehave
Size (mm)1020x450x6001120x450x600

Description of Twin Screw Extruder Machine


Twin screw extruder machine price can be discussed based on different materials, it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization,stableworking, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.
