Brand Name: | EVERSUN MACHINERY |
Model Number: | WLDH-5000L |
Certification: | ISO,CE |
Place of Origin: | CHINA |
MOQ: | 1 set |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000SETS/YEAR |
Delivery Time: | within 15 work days |
Packaging Details: | Standard export wooden package |

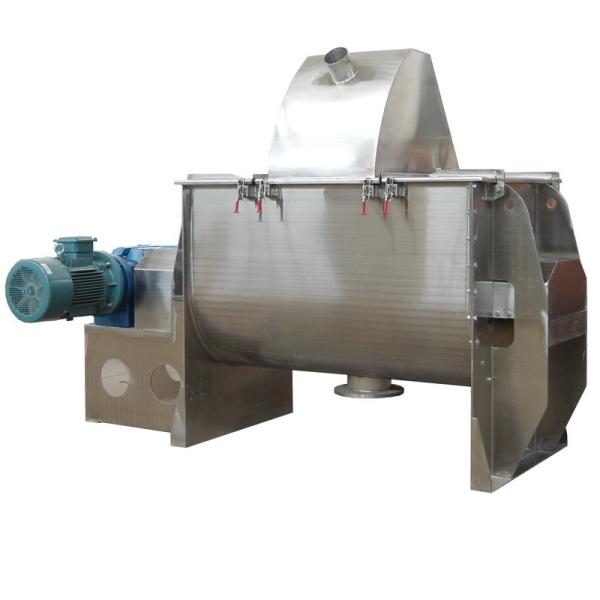

Name: | Ribbon Blender |
Volume: | 5L-5000L |
Voltage: | Can be customized |
Material: | SUS304 or 316L, Stainless Steel |
Application: | Food, Chemical, Pharmacy, Mining.,etc |
Company Info. |
EVERSUN Machinery (Henan) Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
Introduce:
The horizontal blender is a new type of high-efficiency mixing equipment by introducing advanced foreign technology and digesting innovative design results by our professional and technical personnel.

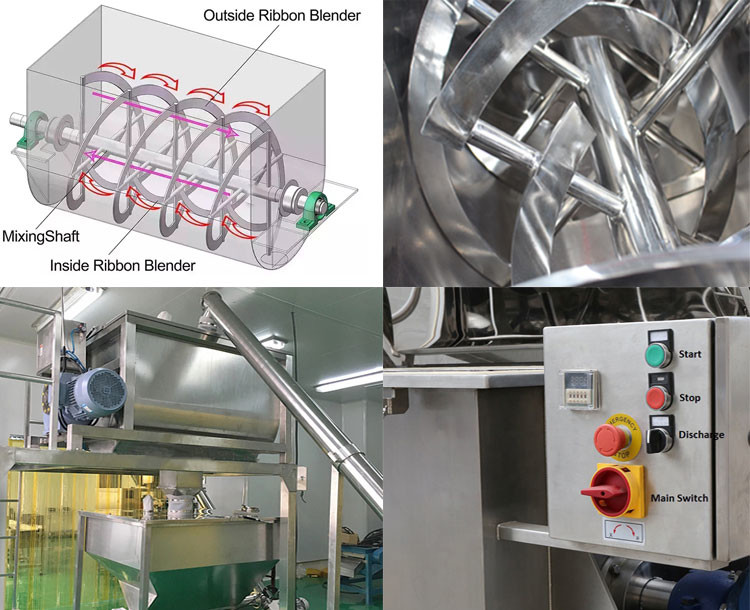

The inner surface of the barrel is polished and smooth, equipped with a central shaft and double S-shaped paddles. The mixing process is fast and uniform, and each batch can be completed in 5-10 minutes. The mixing of special materials needs to be confirmed by the user.
Using Range:
Widely used in chemical industry, medicine, compound fertilizer,
dyes, pigments, rubber, building materials, food, milk
powder,health products, feed, additives,aquaculture, biological
engineering, fine chemical industry, ceramics, refractory
materials,rare earth, plastic glass, new materials, nuclear
materials and other industries.
Product parameters
specification | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-5 | WLDH-6 | WLDH-8 | WLDH-10 | WLDH-15 | WLDH-20 | WLDH-30 | |
wrking capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 | |
working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 | |
speed (r/min) | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 14 | 14 | 14 | 12 | |
power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | |
weight | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 | |
Length | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 5100 | 5610 | 5820 | 6300 | 7000 | |
width | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 | |
Height | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |
Machine details:
1.Horizontal Ribbon Mixer Heating Function
![]() |
