ES0D0X12SA00 12-Port 10GBASE-X Interface Card S7700

Categories NIC Network Interface Card
Brand Name: Huawei
Model Number: ES0D0X12SA00
Place of Origin: Beijing, China
MOQ: 1
Price: US$2,550-US$2,600 per set
Payment Terms: D/A, T/T, Western Union
Supply Ability: 200 pieces per day
Delivery Time: within 2 days
Packaging Details: We will package it by using carton. The size is 42.68X39.47X3.51 cm.
Products Status: Stock, Stock
Transmission Rate: 10GE, 10GE
Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: 1.92 Tbit/s
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Condition: Sealed
Ports: 12
Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support, QoS
Certification: FCC, ce, RoHS
Maximum power consumption: 68 W
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Warranty: 1 YEAR
Shipping: by air
Type: Wireless
Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in
Weight: 2.66 kg (5.86 lb)
Application: Server
Kind: Internal
Distributed forwarding: Performs concurrent data forwarding using a distributed data pl
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

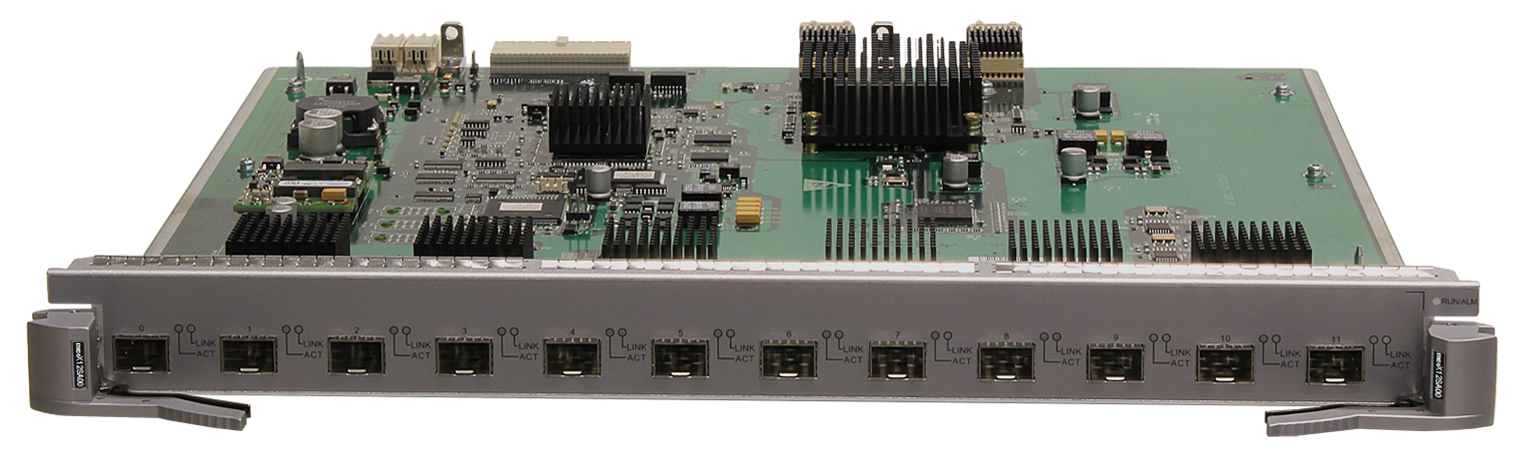

ES0D0X12SA00 12-Port 10GBASE-X Interface Card S7700

ES0D0X12SA00 12-Port 10GBASE-X Interface Card S7700


Huawei S7700 Series Switches

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.
The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port density of all three models is expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.

FunctionQoS
Transmission Rate
10GE
Communication ModeFull-Duplex
Ports48
Switch Capacity1.92 Tbit/s
Products StatusStock
Basic functionsProvides forty-eight 1000M/10G BASE-X ports for data access and switching.
Distributed forwardingPerforms concurrent data forwarding using a distributed data plane.
Maximum power consumption258.1W
Operating temperature0°C to 45°C (32°F to 113°F)
Operating relative humidity5% RH to 95% RH (noncondensing)
Storage temperature-40°C to +70°C (-40°F to +158°F)
Storage relative humidity5% RH to 95% RH (noncondensing)

Details Images
Product Selling Points
The ES0D0X12SA00 provides the following functions
★ 1. Agile Switch, enabling networks to be more agile for services
★ 2. Powerful service processing capabilities
★ 3. Carrier-class reliability and visual fault diagnosis
★ 4. Enhanced QoS mechanism, improving the voice and video experience
★ 5. High-performance IPv6 service processing, results in a smooth transition from IPv4 to IPv6
★ 6. Superb traffic analysis capability, resulting in real-time network performance monitoring
★ 7. Comprehensive security mechanisms, protecting enterprises from internal and external security threats
★ 8. Innovative energy-saving chips, allowing for intelligent power consumption control
Physical specifications
* Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.)
* Weight: 2.30 kg (5.07 lb)
* Maximum power consumption: 85 W
S7700 Card Types
The following describe the different types of Line Processing Units (LPUs)
•The S series includes SA and SC interface cards, for example, 24-port 100M/1000M BASE-X interface card (SA, SFP).
•The E series includes EA, EC, ED, and EE interface cards, for example, 48-port 100M BASE-X interface card (EA, SFP). •The F series includes FA and FC interface cards, for example, 48-port 1000M BASE-T interface card (FA, RJ45).
•The B series has BC interface cards, for example, 48-port 100M/1000M BASE-X interface card (BC, SFP).
•The X series includes X1E, X2S, X2E, X5E, X5H, X5L, X5S, X6E, and X6S interface cards, for example, 48-port 10/100/1000BASE-T interface card (X1E, RJ45).
•All the S7700 cards comply with the FCC standards except the ES0D0X2UXA00, ES0D0X2UXC00, ES0D0X4UXA00, ES0D0X4UXC00, ES1D2X04XED0, ES1D2X08SED4 and ES0D0X12SA00.
•The FCC-certified cards must be used with the FCC-certified chassis.
