| Categories | Elevator Spare Parts |
|---|---|
| Brand Name: | GYG |
| Model Number: | GAA177-123 |
| Certification: | 3C and CE |
| Place of Origin: | China |
| MOQ: | 5 PCS |
| Price: | USD9-12/PC |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 4000000 PCS/ Year |
| Delivery Time: | 5-10 Working days |
| Packaging Details: | Carton |
| Type: | GAA177-123 |
| Reset Form: | Automatic or Hand |
| Applicable: | Elevator Equipment,Passager Elevator,Elevator Cabin,General for elevator parts |
| Rated working Voltage: | DC250V/AC300V |
| Transportation: | Air, Sea, Express |

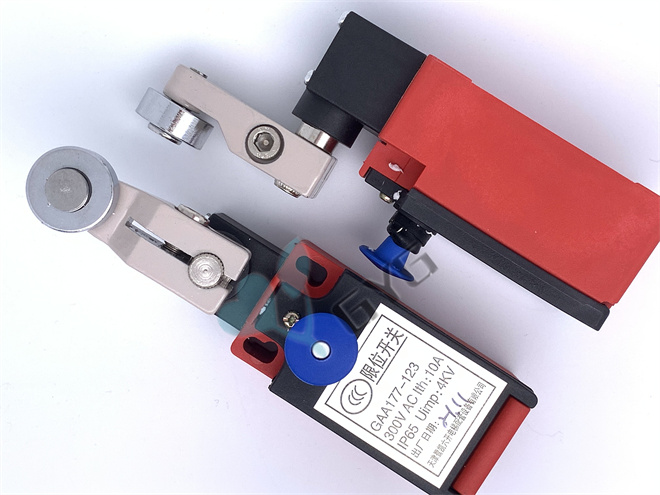

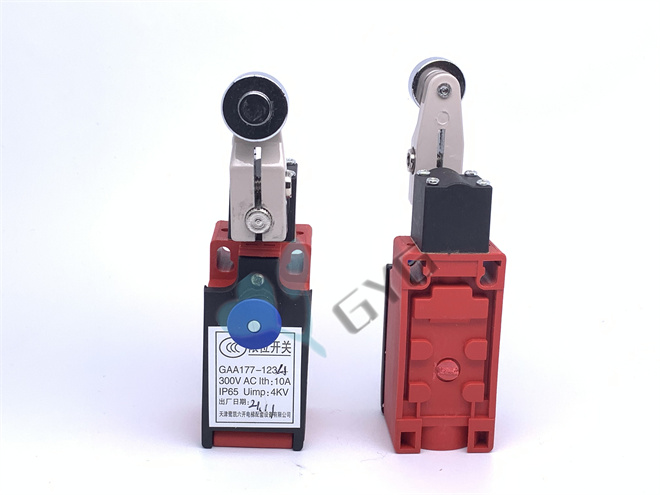

| name: | ELECTRICAL APPLIANCE LIMIT SWITCH FOR ELEVATOR GAA 177-123 2NC 1NC+1NO 10V |
| Company Info. |
| Beijing GYG Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Decription:
GAA177 Series limit switch takes the advantage of function of the reset spring forming a group of normally open, a group of normally closed or two groups of normally closed contacts(AgNi10); when the push rod moved by the external forces, the moving contact and stationary contact complete the transformation while reaching the requirements of the national safe contact. The outer shell protective grade is IP65. It has passed the "3C"and "CE" certification.
Main technical parameter:

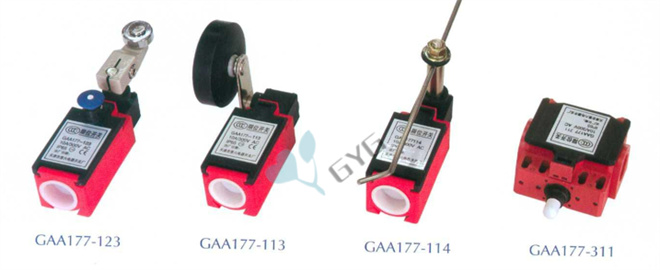

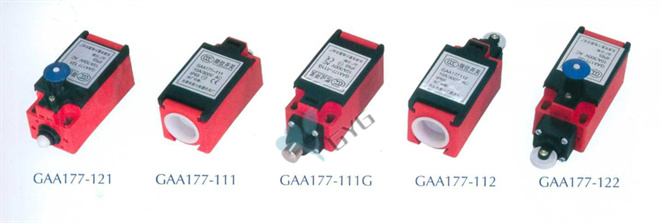

| Type | Contact form | Reset form | Conventional heating current | Rated isolation voltage | Rated working voltage | Rated working current | |||
| A | B | AC | DC | AC | DC | ||||
| GAA177-111 | 2NC | 1NC+1NO | Automatic | 10A | 500V | 300V 50Hz | 250V | 2.4A | 1.1A |
| GAA177-111G | |||||||||
| GAA177-112 | |||||||||
| GAA177-113 | |||||||||
| GAA177-114 | |||||||||
| GAA177-121 | Hand | ||||||||
| GAA177-122 | |||||||||
| GAA177-123 | |||||||||
| GAA177-311 | 1NC+1NO | Automatic | |||||||
Production Show:
Advantages:
Reliable & Trustworthy Product & Service Guarantee Technical Support
7 Year's experience in South Reliable products with Professional technical support
America &Europe Market with considerate service. available before & after sales!
good reputation.
Payment & Shipping:
Certifications:
|
