2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT For Power Supplies

2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT for Power Supplies

Description of 2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT

GDT is placed in front of, and in parallel with, sensitive telecom equipment such as power lines, communication lines, signal lines and data transmission lines to help protect them from damage caused by transient surge voltages that may result from lightning strikes and equipment switching operations. These devices do not influence the signal in normal operation. However, in the event of an overvoltage surge, such as a lightning strike, the GDT switches to a low impedance state and diverts the energy away from the sensitive equipment.

Our GDT offer a high level of surge protection, a broad voltage range, low capacitance, and many form factors including new surface mount devices, which makes them suitable for applications such as Main Distribution Frame (MDF) modules, high data-rate telecom applications (e.g. ADSL, VDSL), and surge protection on power lines. Their low capacitance also results in less signal distortion. When used in a coordinated circuit protection solution with PolySwitch devices, they can help equipment manufacturers meet stringent safety regulatory standards.

Features of 2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT

• Excellent response to fast rising transients
• Stable breakdown voltage
• GHz working frequency
• 8/20μs Impulse current capability: 20KA
• Non-Radioactive
• Ultra Low capacitance (<1.5pF)
• Lead-free compliant
• RoHS and REACH compliant
• UL 497B Recognized: E465335
• Size: Ф8mm*6mm
• Storage and operational temperature: -40~+90°C

Application of 2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT

• MDF modules
• xDSL equipment
• RF systems
• Antenna
• Base stations
• Repeaters, Modems
•Telephone Interface, Line cards
• Data communication equipment
• Line test equipment
• Power supplies
• Surge protectors, Alarm systems

Electrical Characteristics of 2RD-8 SMD Type 8mmX6mm 2 Electrode 20KA Surge Arrester Gas Discharge Tube GDT

Part Number		DC Spark-over Voltage 1) 2) @100V/S	Impulse Spark-over Voltage		Insulation Resistance 3)	Capacitance @1MHz	Life Ratings
							Impulse Discharge Current @8/20μS		AC Discharge Current @50Hz 1S		Impulse Life @10/1000μS 100A
			100V/μS	1KV/μS
			Max	Max	Min	Max	Nominal ±5 times	Max 1 time	Nominal 5 times		Min
DIP	SMD	V	V	V	GΩ	pF	KA	KA	A		Times
2R075TD-8	2R075SD-8	75±20%	500	600	1	1.5	20	25		20	300
2R090TD-8	2R090SD-8	90±20%	500	600	1	1.5	20	25		20	300
2R150TD-8	2R150SD-8	150±20%	500	600	1	1.5	20	25		20	300
2R230TD-8	2R230SD-8	230±20%	600	700	1	1.5	20	25		20	300
2R250TD-8	2R250SD-8	250±20%	600	700	1	1.5	20	25		20	300
2R300TD-8	2R300SD-8	300±20%	750	850	1	1.5	20	25		20	300
2R350TD-8	2R350SD-8	350±20%	800	900	1	1.5	20	25		20	300
2R420TD-8	2R420SD-8	420±20%	900	1000	1	1.5	20	25		20	300
2R470TD-8	2R470SD-8	470±20%	900	1100	1	1.5	20	25		20	300
2R600TD-8	2R600SD-8	600±20%	1000	1200	1	1.5	20	25		20	300
2R800TD-8	2R800SD-8	800±20%	1400	1600	1	1.5	20	25		20	300
Glow Voltage at 10mA ~60V
Arc Voltage at 1A............................................................................... ~10V
Glow to Arc transition Current ~1.0A
Weight…………………………………………………………………...... DIP ~1.7g SMD ~1.25g
Operation and storage temperature……………………………………. -40~+90°C
Climatic category (IEC 60068-1)……………………………………….. 40/90/21

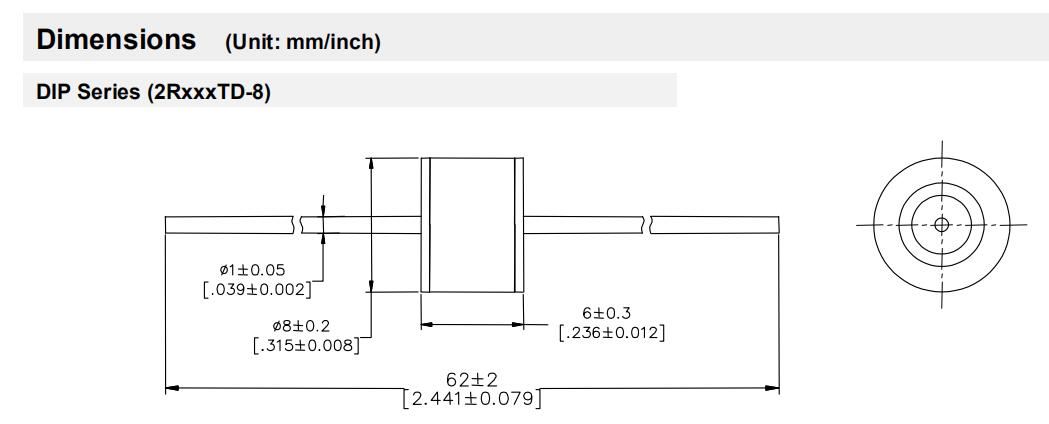

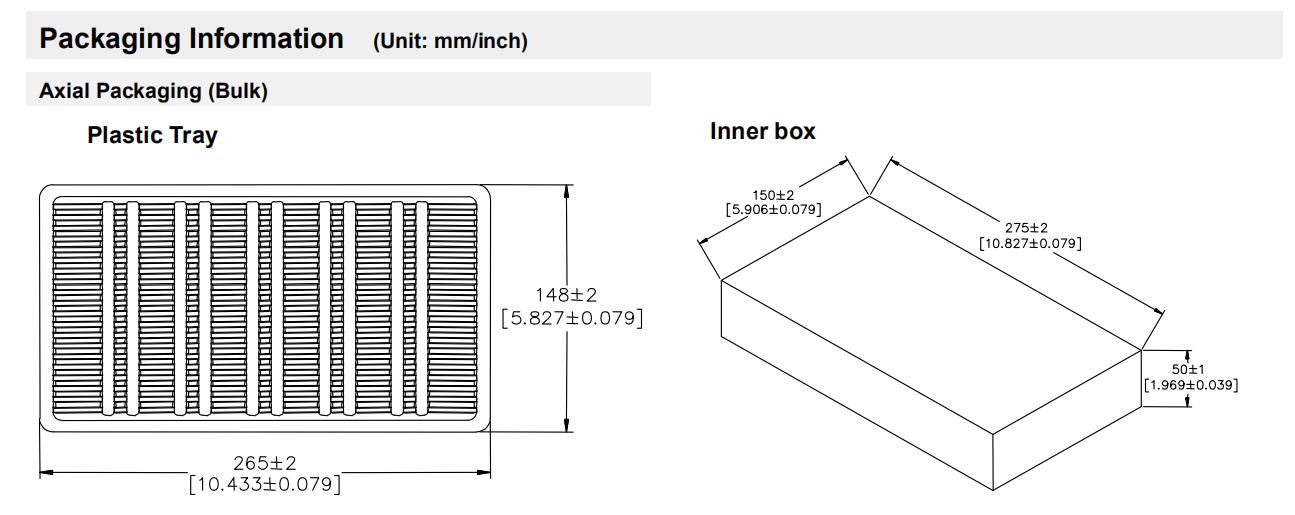

Packaging Quantity:

1,00 PCS per Plastic Tray

5 Plastic Trays per inner box

500 PCS per inner box

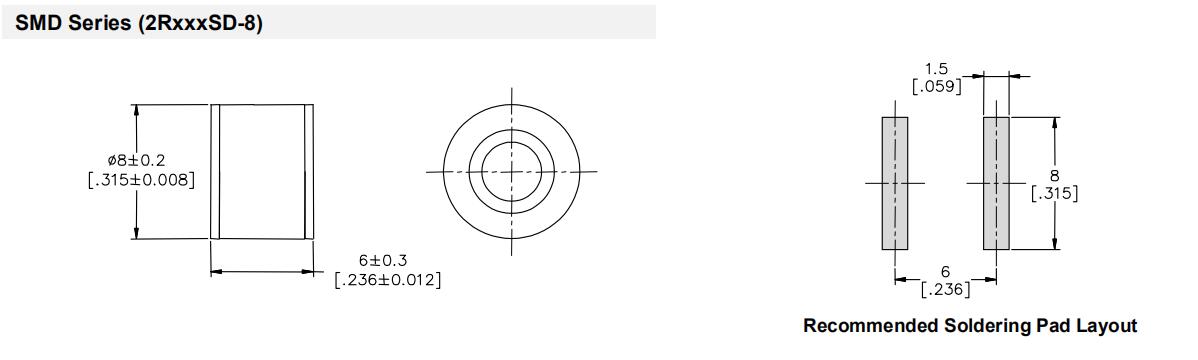

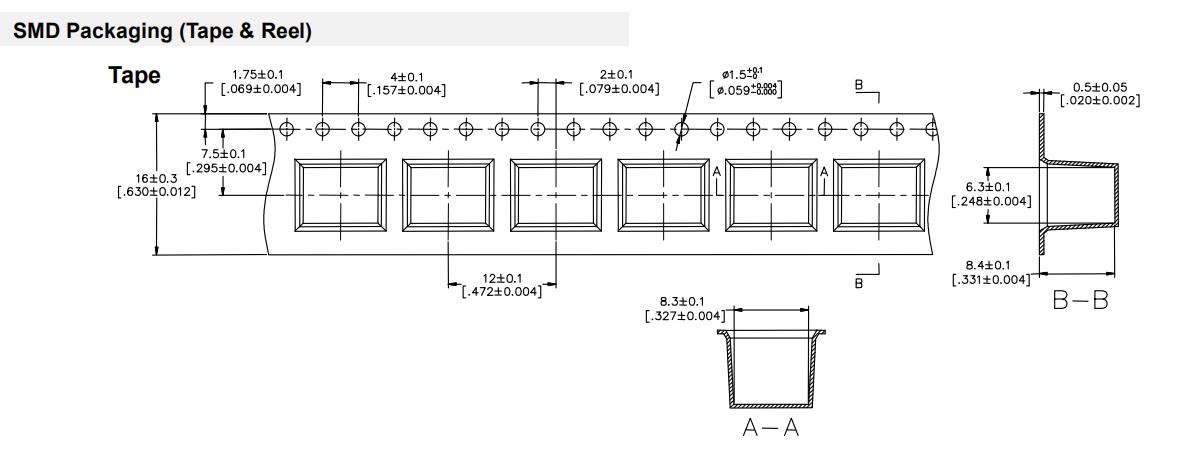

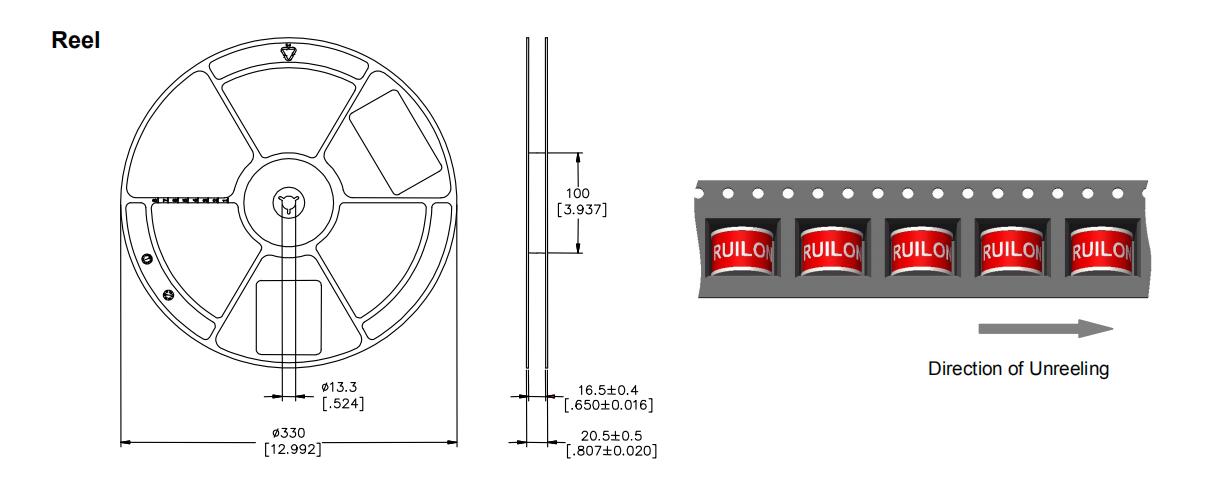

Packaging Quantity:

500 PCS per reel (13")

3 reels per inner box

1 ,500 PCS per inner box

Wave Soldering Condition

Pb-Free assembly

Preheat

Temperature Min

100°C

Temperature Max

150°C

Time (Min to Max)

60-180 Seconds

Solder Pot Temperature

280°C Max

Solder Dwell Time

2-5 Seconds

Soldering Parameters - Reflow Soldering (Surface Mount Devices)

Reflow Condition

Pb - Free assembly

Preheat

-Temperature Min (Ts(min))

150°C

-Temperature Max (Ts(max))

200°C

- Time (min to max) (ts)

60 -180 Seconds

Average ramp up rate ( Liquids Temp TL) to peak

3°C/second max

TS(max) to TL - Ramp-up Rate

5°C/second max

Reflow

- Temperature (TL) (Liquids)

217°C

- Time (min to max) (ts)

60 -150 Seconds

Peak Temperature (TP)

260 +0/-5°C

Time within 5°C of actual peak Temperature (tp)

10 - 30 Seconds

Ramp-down Rate

6°C/second max

Time 25°C to peak Temperature (TP)

8 minutes Max

Do not exceed

260°C
