Categories | UV Light Module |
---|---|
Brand Name: | YM |
Model Number: | UV Light Module 9510 |
Certification: | High-tech Enterprise Certificate |
Place of Origin: | CHINA |
MOQ: | Negotiate |
Price: | Negotiate |
Payment Terms: | T/T |
Supply Ability: | 100000 |
Delivery Time: | 7-10 work days |
Packaging Details: | Carton |
Product Name: | UV Light Module 9510 |
Power: | 110W |
Module Size: | 95mm*10mm*2.0mm |
Luminous Size: | 83mm*6.5mm |
Voltage: | 71.5-82.5V |
Current: | 1-1.5A |
LED Chips: | Seoul, Epileds, LG |
Encapsulation process: | High temperature quartz lens package module |
View Angle of the Lens: | 60, 120 degree |
Warranty: | 2 Years |
Company Info. |
shenzhen yuanming co., ltd |
Verified Supplier |
View Contact Details |
Product List |

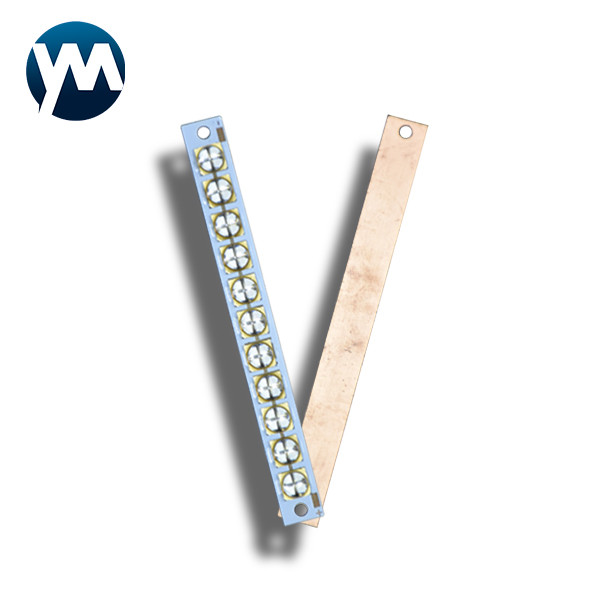

UV Light Module 110W high power lamp beads module uv led curing system
Product Name | UV Light Module 9510 |
Power | 110W |
Color | UV |
Number of lamp beads | 11 pcs |
Diode type | 6565/6868 smd |
Lens Material of Diode | Silica gel or quartz |
View Angle of the Lens | 60, 120 degree |
Module size | 95mm*10mm*2.0mm |
Luminous Size | 83mm*6.5mm |
Wavelength | 365nm,385nm,395nm,405nm |
Voltage | 71.5-82.5V |
Current | 1-1.5A |
Chip Material | Seoul,Epileds,LG |
Encapsulation process | High temperature quartz lens package UV lamp |
Module material | 2.0mm Copper substrate |
Lifespan (hours) | 20000-30000 |
Warranty | 2 years |
Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1: What will be the delivery time and what will be the mode of
payment?
A: Our delivery time will be 3-10days
The payment can be T/T transaction/ alibaba payment
Q2: About logistics?
A: Usually ,we ship the products by express , But we can arrange
shipment according to your need.
Q3: Is there any discount for bulk order?
A: Yes, if you need bulk order or you want customized products, we
can provide wholesale price.
Q4: How to place an order?
A: If you want to place an order, Please feel free to send us an
inquiry email or contact us by trademanager online,
we will reply you within 24hours(working day).
Q5: All the pictures are real photo?
A: Yes, the pictures of all products on this page are 100% real shoot
by us.
Q6: How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main
manufacturer of LEDs in China.
Our products have exported worldwide since the year 2014
Q7: Do you supply OEM,ODM service?
A: YES,absolutely it can be realized.
Please pay special attention
Warm tips, in order to make our products play the best performance
and reduce customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct
contact with UVLED should take measures to prevent and eliminate
static electricity, and do not touch the UV light emitting diode
directly with their hands.
2) When welding, attention should be paid to the welding time and
temperature, and the positive and negative polarities should be
distinguished.
3) Electrical parameters such as current and voltage should not
exceed the rated values.
For high power weliding using UV LED the following points should be
followed
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at
all time.
3)Aviod lens damage during welding.
4) Make sure that the cooling system is working actively,
efficeiently and is dissipating heat.
If you have other needs, please contact us to provide you with the best solution.
![]() |
