| Categories | Terminal Bus Bar |
|---|---|
| Brand Name: | WONKEDQ，WKDQ |
| Model Number: | AB-SS |
| Certification: | CE/RoHS/CQC/ISO 9001 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Payment Terms: | T/T, Paypal, Western Union, etc |
| Delivery Time: | 2-7days |
| Packaging Details: | box |
| Model No.: | AB-SS |
| Color: | Grey |
| Country of orgin: | China |
| Standard: | IEC 60947-7-1 |
| Material: | Flame resistant Nylon PA66 V0 |
| Company Info. |
| Wonke Electric CO.,Ltd. |
| View Contact Details |
| Product List |

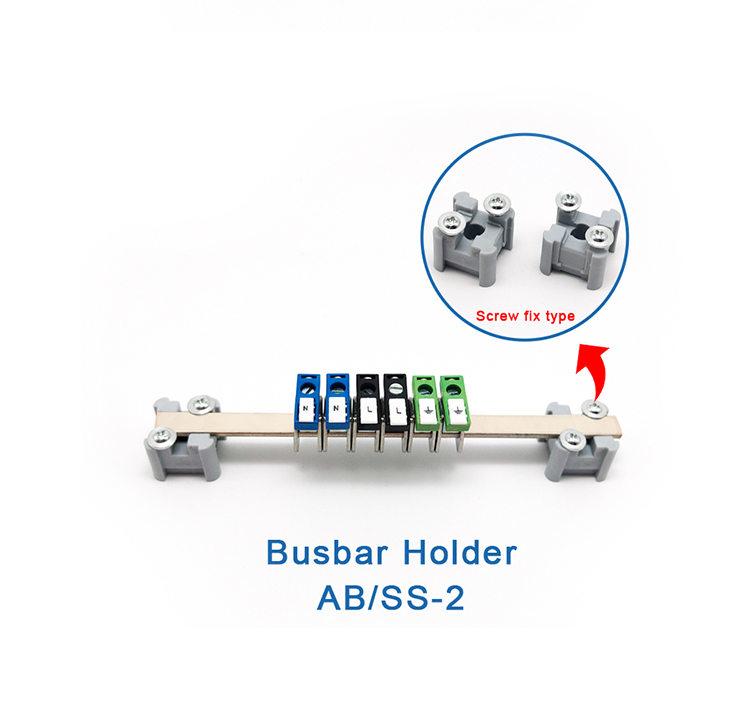

Busbar AB/SS Terminal Blocks Support Bracket
1. DESCRIPTION:
Support bracket made from insulation material, with retaining
screw, can be used with either 3 x 10 mm or 6 x 6 mm , color: gray

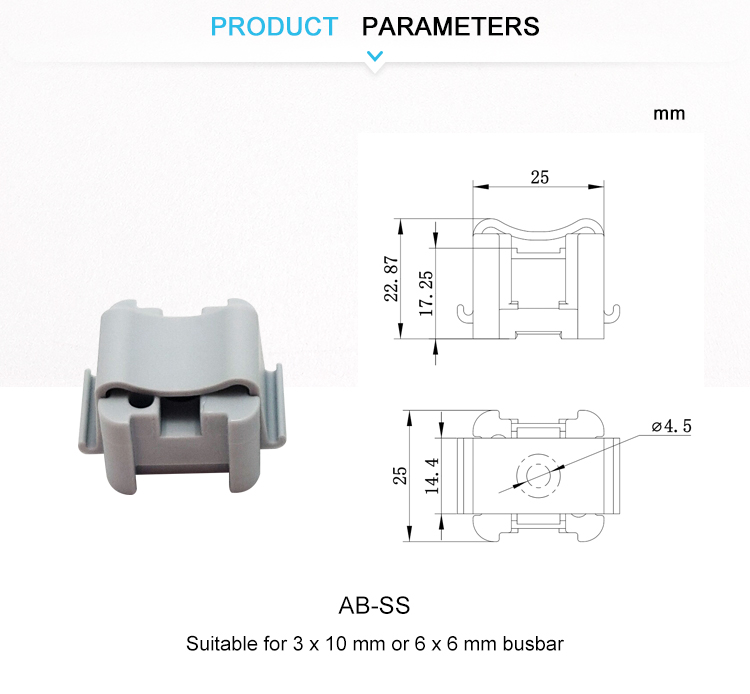

Technical Parameters
| Model Number | AB-SS |
| Color | Gray |
| Length/Height/Wide (mm) | 25 / 22.87/ 17.25mm |
| Material | Nylon PA66 |
| LOGO | WKDQ |
| Static insulating material application in cold | -40 °C |
| Temperature index of insulation material | 125 °C |
|
