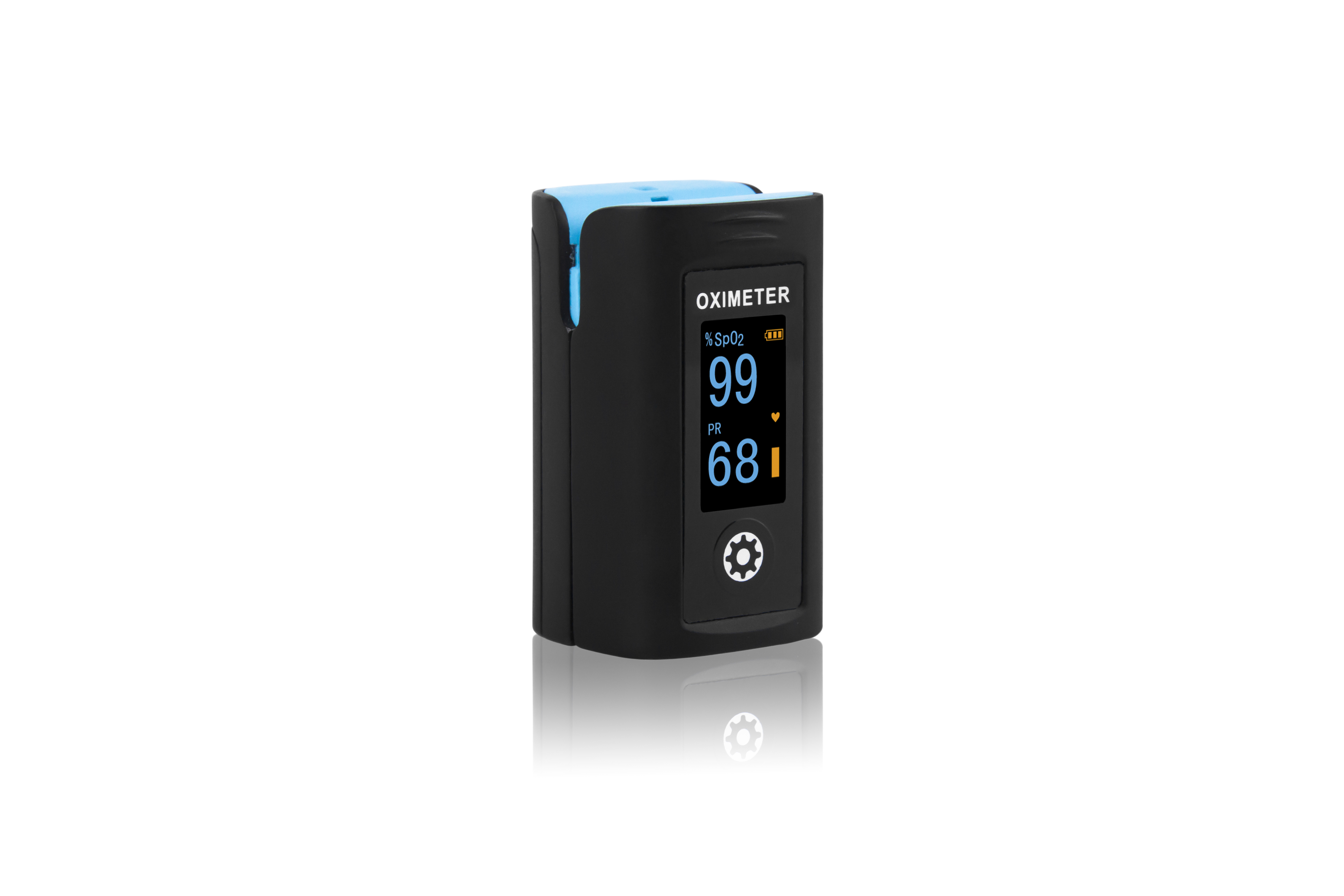

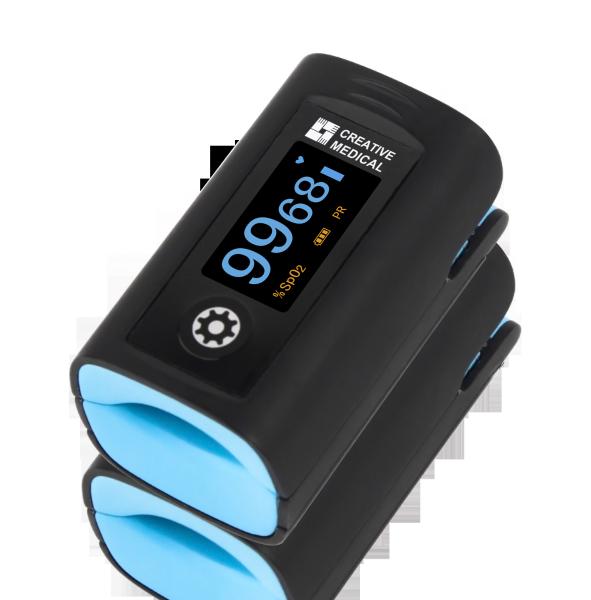

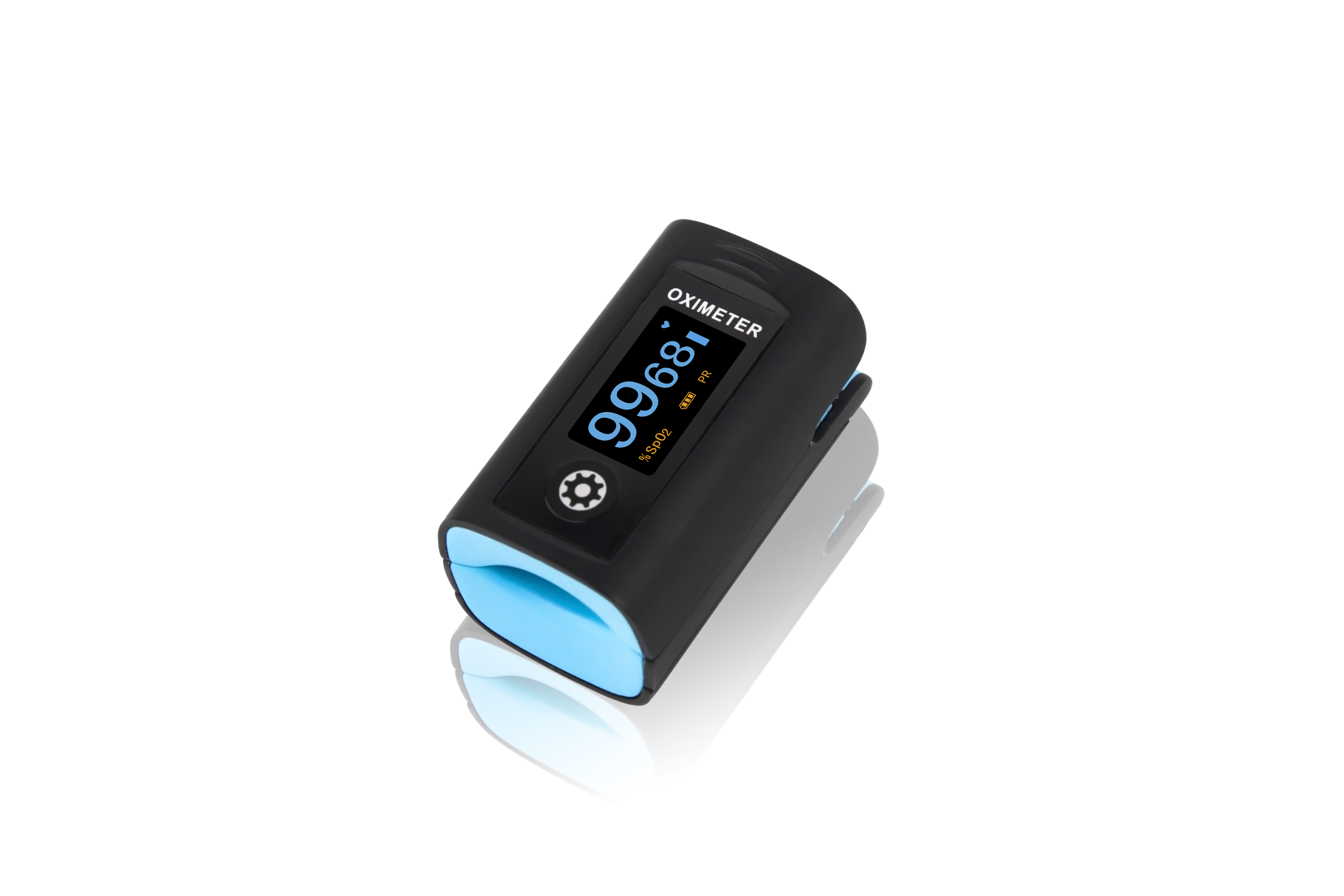

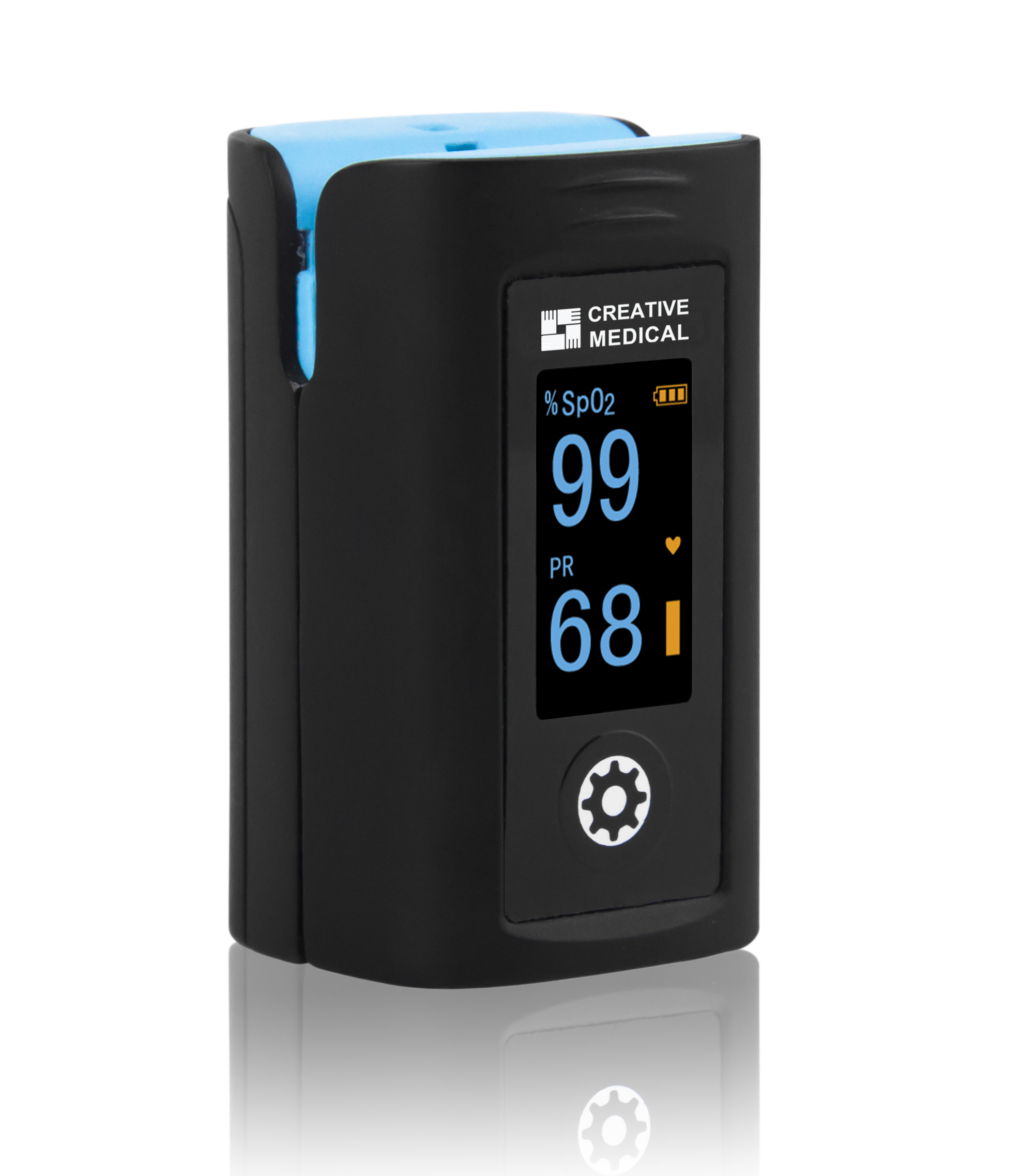

PC-60F
Fingertip Pulse Oximeter
Artifact removal and anti-motion
Splash proof and drop resistant
Accurate and sensitive
Features
OLED display of SpO2, PR, PI, Pulse bar and waveform
Special design with splash-proof and drop-resistant
Spot check and continuous measuring mode
Pulse rate analysis for spot check measurement
Up to 12 groups SpO2 data storage
Audible and visual alarm with low battery indication
Automatic power on/off, 4 direction display
Setting menu and wireless available
Scope of Application
The fingertip pulse oximeter is intended for measuring the Pulse
Oxygen Saturation, Pulse Rate, and Perfusion Index through user’s
finger. It’s applicable for the monitoring of SpO2 and pulse rate
of adult and pediatric at home and medical clinics.
Specification
SpO2
Transducer: Dual-wavelength LED sensor
Measuring range : 35%~100%
Measuring accuracy: ≤ 3% range from 70% to 100%
Pulse Rate
Measuring range: 30bpm~240bpm
Measuring accuracy: ±2bpm or ±2% whichever is greater
Perfusion Index (PI)
Display range: 0%~20%
Default Alarm Limit
SpO2 low limit 90%
Pulse Rate : High limit: 120bpm
Low limit: 50bpm
Power supply
2 x AAA alkaline battery
Supply voltage: 3.0V DC
Operating current: ≤40mA
Dimension
56 mm (L) × 34 mm (W) × 30 mm (H)
Net Weight
52g
Measuring Mode
30 seconds Spot check and Continuous mode
Pulse Rate Analysis(Spot check mode)
12 types preset analysis
Data Storage
Up to 12 groups
