300bph Chemical Liquid Filling Machine 1-5L Rotary High Viscosity Liquid Filling Machine

Fully Automatic Filling, Rotary Cover All-In-One Machine Filling Of Water Agent And High Viscosity Materials

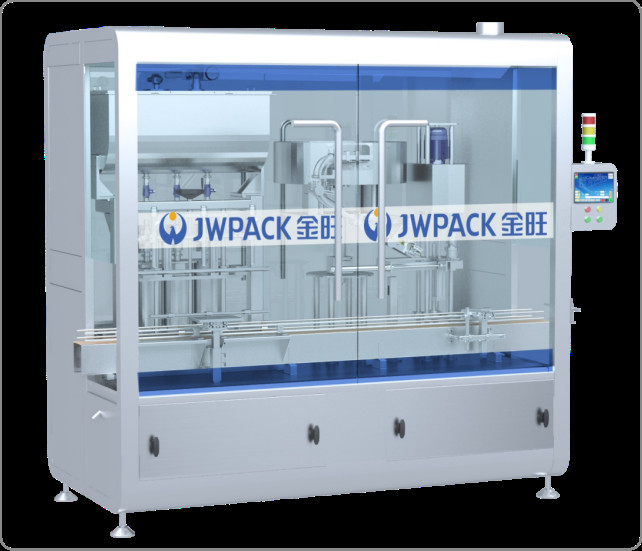

CCG5000-3-1 fully automatic filling,rotary cover all-in-one machine

General information:

CCG5000-3-1 automatic filling cover is a combined packing machine integrating filling and rotary cover. Suitable for the filling of water agent and high viscosity materials. The whole machine has the characteristics of compact structure, small land area, easy cleaning, easy operation, convenient and fast replacement of quality rules, which can save to the greatest extent human resources.

Technical parameters:

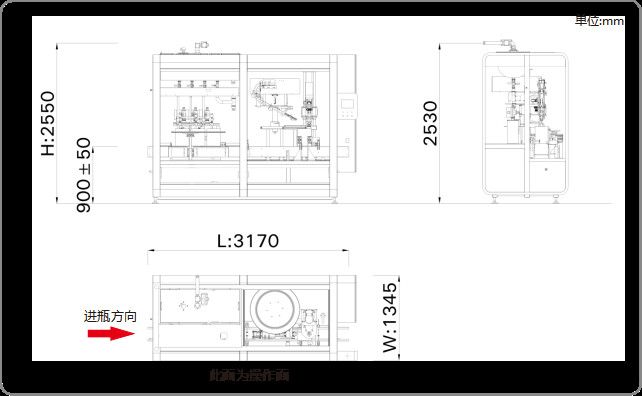

Equipment dimension drawing:

Equipment advantages:

1, Process Flow:Manual bottle release- -automatic bottle entry- -automatic filling- -automatic Richard cover, grasp cover- -spin cover- -finished product output

2, is widely used in 1-5L square bottle automatic filling and rotary cover in pesticide, fine chemical, daily chemical, fertilizer, oil and other industries.

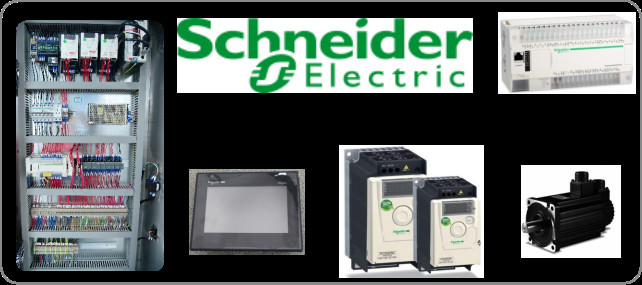

3, complete electric control system, French Schneider is equipped with integrated electric control system, more stable and reliable, safe, green and low energy consumption.

4, Jinwang adopts PLC programming and control, servo motor drive synchronous belt with + drive stable double-wire bar lifting mechanism, which ensures the high precision of piston movement travel and realizes accurate filling.The synchronous belt with embedded metal wire will not break. At present, foreign first-class packaging manufacturers adopt this structure. Compared with similar products on the market, the ordinary motor + encoder is used, after the chain drive structure for a long time, the chain has a tensile nature, affecting the filling accuracy and equipment stability.

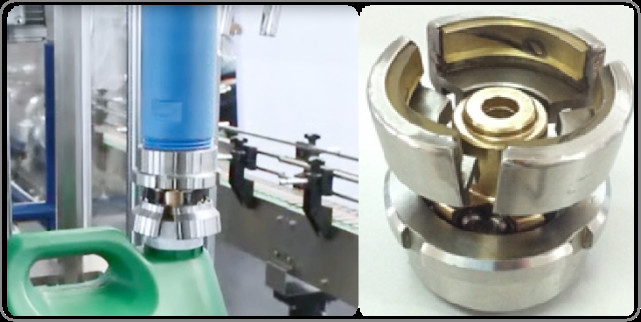

5,With a special cover grab cover, the cover torque is adjustable. Wear-resistant rubber on the inside of the griper to prevent damage during cover spin.

6, The cover bucket is equipped with an automatic cover device, and the missing cover automatically opens the upper cover machine to ensure the automatic supply of the cover.

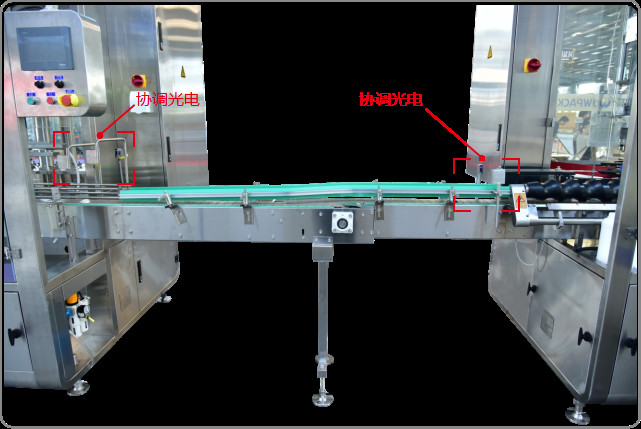

7, The filling machine is short of bottles, and the filling machine and the rear side are equipped with coordinated photoelectric. When the bottle is not blocked, it automatically realizes the linkage function with the rear equipment.

Main configuration of the equipment:
