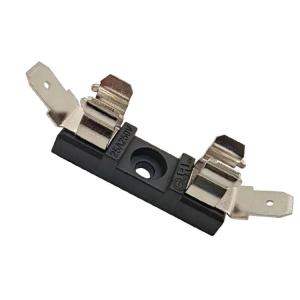

6X30 PCB Mount Fuse Holder Block 25A UL lnsulation Resistant

JEF-511E 6*30 Fuse Block 250V 25A PCB 6.35x31.8mm UL 94V-0 Fuse Holder With 6.4 Quick Connect Terminal

Product Description

This 6x30 pcb mount fuse holder is compatible with 6x30mm glass or ceramic fuses for overcurrent protection in electronic equipments, appliances, and lighting circuits.

They're used with 6.4mm faston terminas with angel 40°

They are easy to be installed on the printed circuit boards.

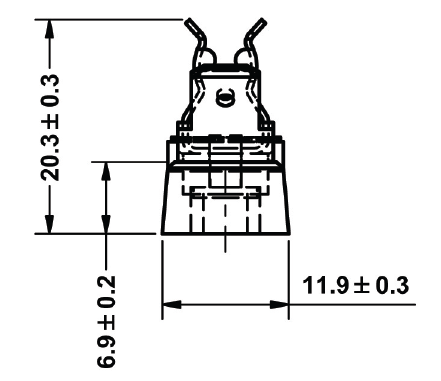

Drawing of the JEF-511E fuse holder

Please allow 1-3mm tolerance due to manual measurement.

KEY WORDS: JEF-511E FUSE HOLDER. PCB FUSE HOLDER, 6x30 FUSE HOLDER, 3AG FUSE HOLDER, FUSE BLOCK

6x30 glass fuses

6x30 ceramic fuses

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

• Will the fuse need to accessible for replacement?
• How often will the fuse need to be replaced?
• Should the end customer of the appliance have access to change the fuse?
• Should the fuse only be accessible from outside the appliance?
• How much is available to spend on safety and reliability?

• Founded in 1999, we have been focused on manufacturing over-current, over-temperature and other circuit protection components.
• Our main products include fuses, fuse holders, thermal switches, circuit breakers and temperature sensors, which are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminals, household appliances, lighting appliances, power supplies, adapters, automobile and marine applications. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety certificates.
• After serving our valuable clients in China market over 20 years, we have become one of the leading suppliers of circuit protection components.


1999 REOMAX Electronics(HK) was founded.

2003 REOMAX factory was founded

2007 IS0 9001 approved

2009 Name changed to Dongguan Reomax

2011 CQC、CCC、UL、cUL and VDE were certified.

2011 Member of CEEIA

2012 VDE certified

2012 Fuse patents were acquired

2013 PSE and KC approved

2014 REOMAX trademark applied

2014 1206/0603/2410/6125 fuses were developed

2015 Fully automatic machines were put into production。

2016 Testing machines were improved

2017 High voltage and high current testing machines were put into use. XR inscpention euqippemnt was brought in.

2018 6125 1808 2410 were certified by CQC and KC

2019 6125 was certified by VDE

2019 1032 and 1245 were certified by UL

2020 Square fuses of high current and high voltage were certified by TUV.
