1000V DC 250V AC 3AG PCB Fuse Holder / 50A Fuse Block For Overcurrent Protection

R3-67 250VAC 1000DC 50A Fuse Clip Block 6x30 6.3x32 3AG PCB Fuse Holder Mounted by 6.4 Faston Terminal & PCB Welding

Product Description

This 6x30 pcb fuse holder is designed for overcurrent protection in heavy duty circuits.

It has 6.4mm faston terminals for wire connection and it also has pins for easy installation on printed circuit boards.

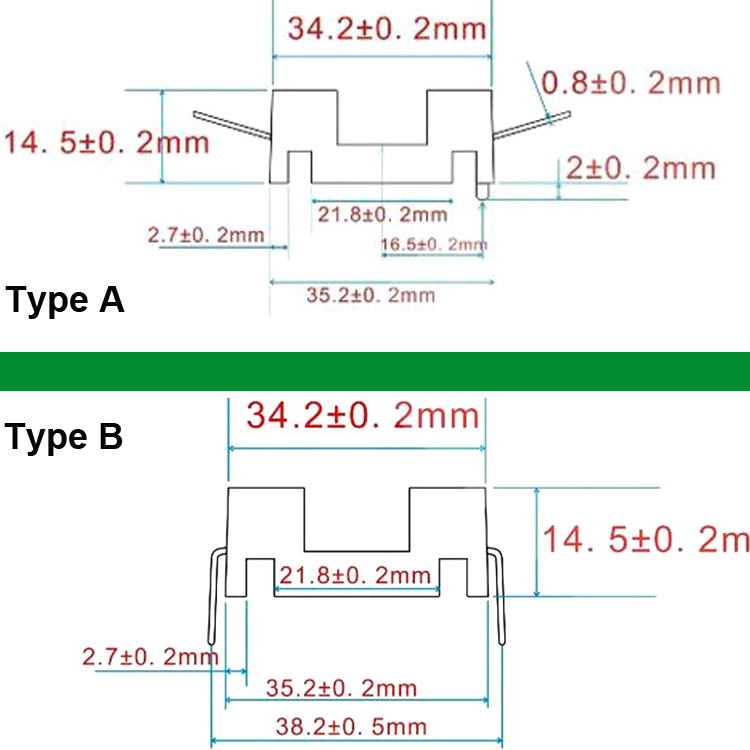

Drawing of the R3-67 fuse holder

Please allow 1-3mm tolerance due to manual measurement.

KEY WORDS: FUSE HOLDER. PCB FUSE HOLDER, 5x20 FUSE HOLDER, 5.2x20 FUSE HOLDER, FUSE BLOCK

6.3x30 glass fuses

6.3x32 ceramic fuses

Our products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

• Will the fuse need to accessible for replacement?
• How often will the fuse need to be replaced?
• Should the end customer of the appliance have access to change the fuse?
• Should the fuse only be accessible from outside the appliance?
• How much is available to spend on safety and reliability?

• Founded in 1999, we have been focused on manufacturing over-current, over-temperature and other circuit protection components.
• Our main products include fuses, fuse holders, thermal switches, circuit breakers and temperature sensors, which are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminals, household appliances, lighting appliances, power supplies, adapters, automobile and marine applications. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety certificates.
• After serving our valuable clients in China market over 20 years, we have become one of the leading suppliers of circuit protection components.


1999 REOMAX Electronics(HK) was founded.

2003 REOMAX factory was founded

2007 IS0 9001 approved

2009 Name changed to Dongguan Reomax

2011 CQC、CCC、UL、cUL and VDE were certified.

2011 Member of CEEIA

2012 VDE certified

2012 Fuse patents were acquired

2013 PSE and KC approved

2014 REOMAX trademark applied

2014 1206/0603/2410/6125 fuses were developed

2015 Fully automatic machines were put into production。

2016 Testing machines were improved

2017 High voltage and high current testing machines were put into use. XR inscpention euqippemnt was brought in.

2018 6125 1808 2410 were certified by CQC and KC

2019 6125 was certified by VDE

2019 1032 and 1245 were certified by UL

2020 Square fuses of high current and high voltage were certified by TUV.
