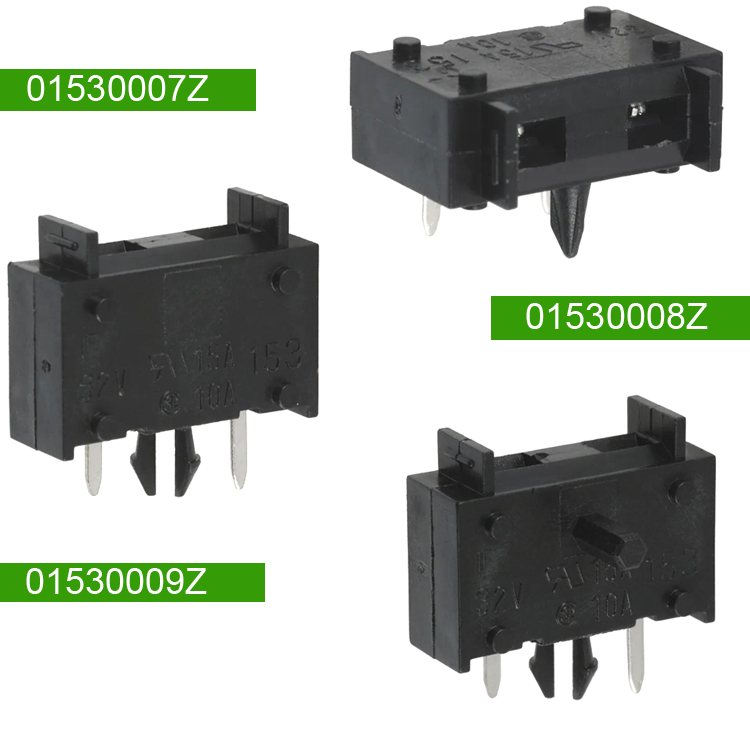

PCB Mount Mini Blade Fuse Holders 15A 12.9mm Width With Vertical Terminal

01530008Z PCB Mount Fuse Holder for Mini Blade Fuse with Vertical Terminal 01530008 UL 32V 15A 297 Fuse HolderProduct Description

The MINI PCB Fuse Holders bring the reliability and availability of the plug-in 32V MINI Fuse to the circuit board. Vertical and horizontal mounting of units is offered. The Fuse Holder has “standoffs” to accommodate board washing and incorporates a unique “board lock” anchor to maintain a firm mechanical bond to the PCB

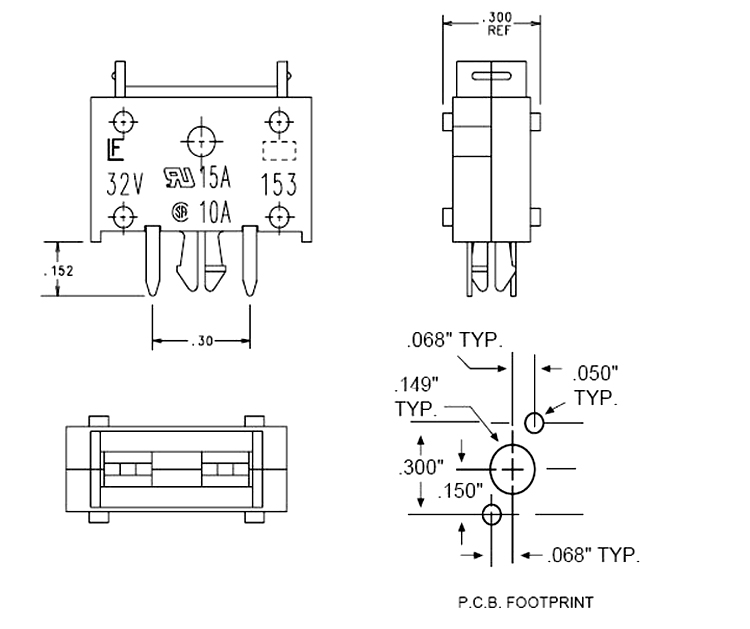

Drawing of 01530008Z Fuse Holder

0153 Series

Blade Type Fuse Sizes

Colors & Ratings

Applications

Car, Boat, Truck, SUV, Motorcycle, etc.

Standard Package:

1000pcs per bag

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Notice

1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.

2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.

• Founded in 1999, we have been focused on manufacturing over-current, over-temperature and other circuit protection components.
• Our main products include fuses, fuse holders, thermal switches, circuit breakers and temperature sensors, which are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminals, household appliances, lighting appliances, power supplies, adapters, automobile and marine applications. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety certificates.
• After serving our valuable clients in China market over 20 years, we have become one of the leading suppliers of circuit protection components.
