100 Amp Waterproof Circuit Breaker / Manual Reset Breaker Phenolic

Categories Automotive Circuit Breakers
Model Number: E99-100
Place of Origin: China
MOQ: 100
Price: USD $5.7~$7.5 per piece
Payment Terms: T/T
Supply Ability: 3K pieces per week
Delivery Time: 10 work days
Packaging Details: 1pcs per bag, 100pcs per carton
Item Name: Hi-Amp Circuit Breaker
Part No.: E99-100
Dimension: 74x49x45 mm
No. of Pole: single
Mounting Type: Surface
Interrupting Rating: 5KA@32VDC, 3KA@48VDC
House material: Phenolic
Protection grade: IP-67
Voltage Rating: 48V dc
Current Ratin0.1A~20Ag: 100A
RoHS Compliant: Yes
Halogen free: Yes
Operation temp: -32˚C~+82˚C
Torque rating: 5.6Nm max
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

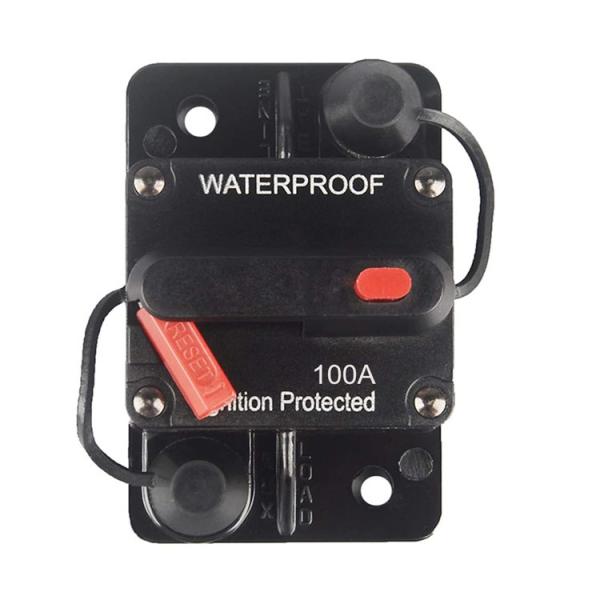

100 Amp Waterproof Circuit Breaker / Manual Reset Breaker Phenolic

Product Description

Product NameIgnition Protected Circuit Breaker
Pole TypeSingle Pole
Reset Typewith RED Button Manual Reset
Volt Rating48V dc
Amp Rating100A 100AMPS
Interrupting Rating5KA @32VDC, 3KA@48VDC
Body MaterialBlack UL 94V0 thermoset plastic
Protection RatingIP67
Termination1/4-28 or 3 8 16 threaded studs
Operating Temperature–25°F (–32°C) to 180°F (82°C)
Storage Temperature–30°F (–34°C) to 300°F (149°C)

Other Ratings:30A 40A 50A 60A 70A 80A 120A 150A 200A 250A 300A

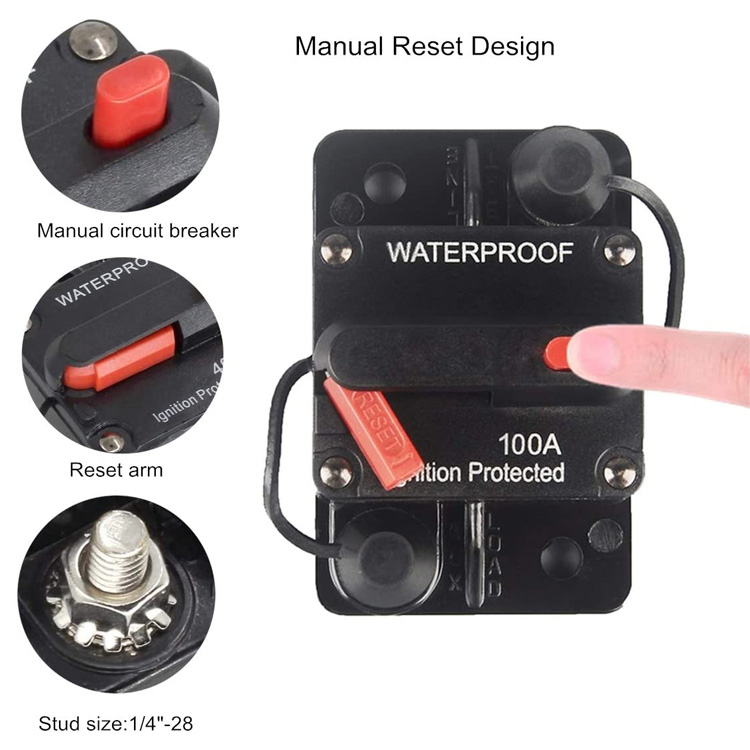

100A circuit breaker details

Applications


Standard Package

1pcs per bag, 100pcs per carton


Shipping Term:

EXW, DDU, DDP, C&F, FOB


Shipping Methods:

International Express, By Air, By Sea


Warmly Reminder:
1. Please use it under right work temperature, to avoid it is too heat and stop work.
2. Please correctly push the button to avoid damage the Circuit Breaker.
Reomax Electronics Co., Ltd was founded in 1999, focus on manufacturing components for over-current, over-temperature and other circuit protection. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies, adapters, vehicles, and marine applications.
