Waterproof 70A Automotive Circuit Breakers E99 DC Ignition Protected

Categories	Automotive Circuit Breakers
Model Number:	E99-70
Place of Origin:	China
MOQ:	100
Price:	USD $5.7~$7.5 per piece
Payment Terms:	T/T
Supply Ability:	3K pieces per week
Delivery Time:	10 work days
Packaging Details:	1pcs per bag, 100pcs per carton
Item Name:	Circuit Breaker
Part No.:	E99-70
Dimension:	74x49x45 mm
No. of Pole:	single
Mounting Type:	Surface Mount
Interrupting Rating:	5KA@32VDC, 3KA@48VDC
House material:	Phenolic 94V-0
Protection grade:	IP67
Voltage Rating:	48V dc
Current Ratin0.1A~20Ag:	70A
RoHS Compliant:	Yes
Halogen free:	Yes
MPQ:	100pcs per bag
Operation temp:	-32˚C to +82˚C
Torque rating:	50 in-Ib (5.6Nm) max

Contact Now

Add to Cart

Company Info.

Dongguan Reomax Electronics Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

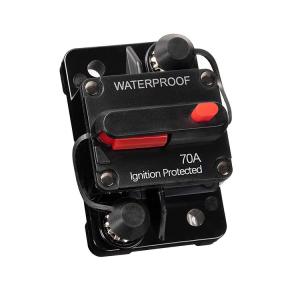

Waterproof 70A Automotive Circuit Breakers E99 DC Ignition Protected

70 Amp Circuit Breakers Waterproof Ignition Protected with Manual Reset Switch 70A Current Breaker

Product Description

Item Name	Ignition Protected Manual Reset Circuit Breaker
No. of Poles	Single
Voltage	48V dc
Current	70A
Interrupting Rating	5KA@32VDC, 3KA@48VDC
House Material	Black UL94V0 thermoplastic
Protection Rating	IP67
Termination	1/4-28 or 3/8-16 threaded studs
Operating Temperature	–25°F (–32°C) ~ 180°F (82°C)
Storage Temperature	–30°F (–34°C) ~ 300°F (149°C)
Standards	SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)

Features of E99 70A circuit breaker

Application Ideal For Harsh Environments, suitable for use on auxiliary DC electrical systems. Ideal for use in harsh environments, like motorsport, to provide protection in the event of current overload or short circuit. Switchable surface mount circuit breakers typically found in auxilliary and accessory circuits in trucks, buses, motorhomes & marine systems.
Waterproof, waterproof unit suitable for use in engine compartments and Bilge area's.
Heavy duty. Using bimetal structures, when the circuit is overloaded, quickly power protection. Widely used in special vehicles, off-road vehicles winch, yachts and ships electrical control.
Connection Stud Size - M6 nuts supplied with integral lock washers to prevent loosening due to vibration.
Manual power off. We need to disconnect the circuit when refitting, directly press the elliptical red button, then the long handle will automatically pop up to cut off the power. Press the long handle back to the original position to form a passage.

70A circuit breaker details

Waterproof & Ignition Protected

Standard Package

1pcs per bag, 100pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Warmly Reminder:

1.Please use it under right work temperature, to avoid it is too heat and stop work.

2. Please correctly push the button to avoid damage the Circuit Breaker.

Company warehouse

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment ?

A: 100% in advance, T/T.

Current Rating:25/30/35/40/50/60/70/80/90/100/110 /120/130/135/140/150/175/180/200A

Voltage Rating: 48VDC Waterproof: IP67, marine level

Terminal Stud: 1/4-28 or 3/8-16 With Reset and Push-to-trip button Panel or surface-mount

Compliances: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)

70 Amp Circuit Breakers Waterproof Ignition Protected with Manual Reset Switch 70A Current Breaker
