137-174MHz Microwave Power Divider VHF 8 Way Power Combiner

Categories Microwave Power Divider
Model Number: ZSPD-152-8N
Certification: ISO9001
Place of Origin: Chengdu,China
frequency range: 137-174MHz
Number of Output Ports: 8 Ports
Impedance: 50ohms
connector: N-Female
Power: 100W
Brand Name: Zysen
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-4 Weeks
Payment Terms: T/T, L/C,D/A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

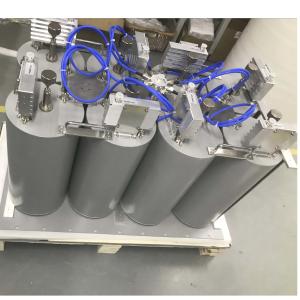

137-174MHz Microwave Power Divider VHF 8 Way Power Combiner

VHF 152MHz 8-way Coaxial Transmitter Combiner

Zysen's 2-way, 3-way, 4-way, 6-way, 8-way low frequency VHF transmiter combinerm, power handling 100Watts, Tuning range 5MHz. operating frequecny is customizable, contact us with your requirement(sales@zysentech.com)


1. Electrical Specifications
Frequency range137-174MHz
Frequency Separation≥250 KHz
Tuning Range5.0MHz
VSWR

Input≤1.25

Output≤1.50

Isolation ANT-TX≥60dB
Isolation TX-TX≥65dB
Power100W(CW)
Temperature

normal temperature +15℃~+35℃

ultimate temperature -10℃~+65℃

ConnectorsN-Female,50Ω
ColorGray
ChannelsInsertion LossSize
137-174MHzL(mm)W(mm)H(mm)
2≤3.4dB420750210
3≤3.6dB420750420
4≤3.8dB420750420
6≤4.6dB420750630
8≤5.0dB420750844

Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
