0.4MPA Low Pressure Paper Industries Hot Oil Furnace

Coal Biomass Fuel Wood Pellet Fired Hot Oil Furnace Boiler Supplier for Paper Industries

Product Information

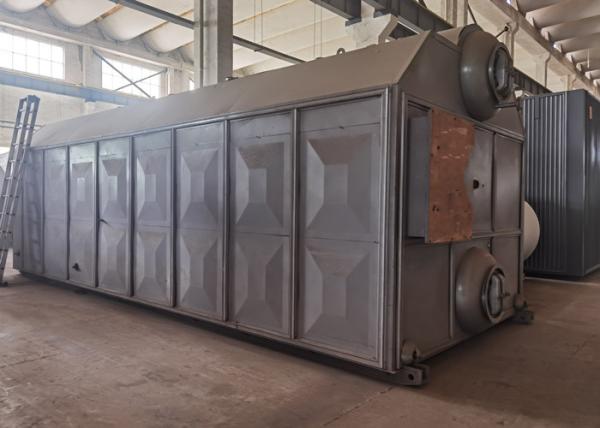

YLW series organic heat carrier furnace is an assembled forced circulation chain grate boiler. The front of the boiler body is the radiant heating surface of the furnace, which is composed of close-packed double-sided coils; the rear is the convection scouring heating surface, which is composed of serpentine tube bundles. The boiler is composed of an upper body and a lower chain grate, combined on site. The air preheating is arranged behind the boiler. The high-temperature flue gas generated by combustion is absorbed part of the heat in the furnace, and enters the convection heating surface through the turning flue chamber to exchange heat. After exiting the boiler, the air required for combustion is heated in the air preheater, and then the flue gas is removed by the induced draft fan through the dust collector. The gas is sent to the chimney and discharged into the atmosphere. Uses: It can be used as a high-temperature heat source at various temperatures below 350℃, and is widely used in various industries that require high-temperature heating or drying; high temperature and low pressure; accurate temperature control and high heat utilization efficiency. And optional steam generator can produce saturated steam below 0.6MPa for users to use. ◆Product use: It can be used as a high-temperature heat source at various temperatures below 350°C, and is widely used in various industries that require high-temperature heating or drying; high temperature, low pressure; accurate temperature control, high thermal energy utilization. And optional steam generator can produce saturated steam below 0.6MPa for users to use.

Core Technology

1. OIl cover fire structure with three pass.

2. Wet back structure.

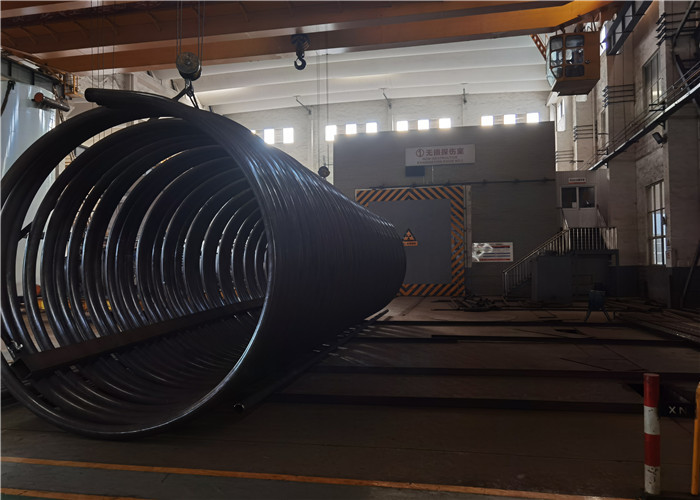

3. Compact coil tube.

4. Over oil temperature/over smoke temperature/low flow alarm.

5. Design with air preheater or heat recovery boiler.

6. Front and rear big open door design.

Product Advantage

1. Three Coil Pipes

2. Wet Back Structure

3. External oil collection box

4. Easy to Disassemble Door

Technical Parameter

Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.

The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.

Location:

Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi.

The traffic is very convenient.

Staff:

About 600 employees, including 150 technicians.

Strategy:

We strive to provide the top grade quality products and best services to the customers. Keep developing the new products which are energy saving, environment protective and keep investing for the new equipments and new technologies.

Supplying ability:

10000MT per month for the tubes and pipes

5000MT per month for the steel plates

Global cooperation partners:

Covanta, Foster Wheeler, RCR Energy, ALSTOM, POSCO, Dongfang Electric, Shanghai Electric, China Huaneng, China Guodian, China Datang Corporation, Huaguang Boiler, Haerbin Boiler, Dongfang Boiler, Hangzhou Boiler, Bao Steel, Tisco, Shagang Steel......

Our products' quality is ensured by advanced, excellent facilities and manufacturing equipment. We have introduced many advanced processing and inspection equipments, including plasma cutting machine, NC drilling equipment, automatic welding system, welding equipment and real-time online imaging detection system, etc., which successfully ensure excellent quality of our products.
