ISO9001 ROHS M4 Threaded Inserts For Aluminium

M4 304SS Thread Inserts Free Running DIN8140 Extend The Service Life

Information

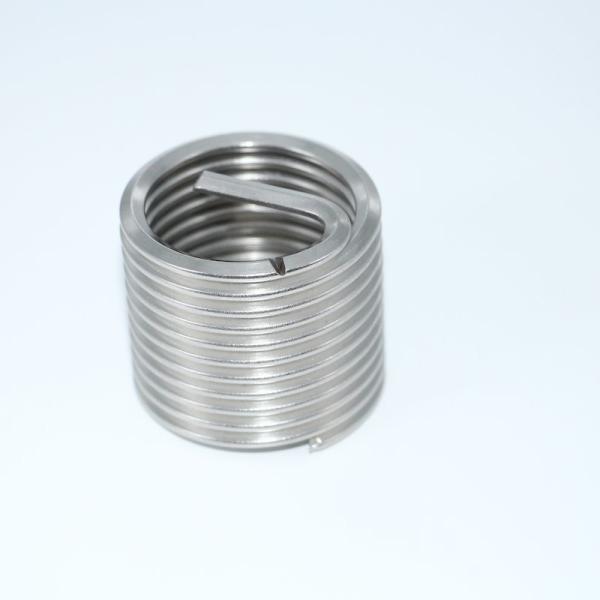

The wire thread insert is made of high-hardness, corrosion-resistant steel wire with a diamond-shaped cross-section. It is a spring-like concentric body of internal and external threads. The cross-sectional shape of the standard internal thread used for fastening parts is a combination of two internal and external threads. Wire thread inserts are divided into two types: ordinary type and locking type, each with or without breaking grooves and with breaking grooves.

Advantage

As a kind of screw sleeve fasteners, the pre-installed internal thread has obvious advantages compared with ordinary threads:

1. Extend the service life: Because the wire thread insert is made of stainless steel, it has high hardness, which increases the life of the softer base thread by tens to hundreds of times; increases its strength and avoids the phenomenon of tripping and random buckling. occur.

2. Enhanced thread connection strength: applied to soft low-strength alloy materials such as aluminum and magnesium, which can effectively enhance the connection strength of the thread. The ordinary internal thread of aluminum profile has a maximum tensile strength of 1394N. Thread, its minimum tensile strength can reach 2100 N.

3. Enlarge the bearing surface: it can be used for thin machine parts that require a strong connection but cannot increase the diameter of the screw hole.

4. Improve the connection conditions and increase the bearing capacity and fatigue strength of the threaded connection: Since the wire threaded sleeve is an elastic fastener, the use of the wire threaded sleeve can eliminate the pitch and thread deviation between the screw and the screw hole, so that the load is evenly distributed , Thereby improving the load-bearing capacity and fatigue strength of the threaded connection.

5. Anti-corrosion: The characteristics of the wire thread insert material itself and its surface is extremely smooth, and it will not rust the mating substrate when used in harsh environments such as humidity and corrosion, and avoid the expensive replacement of the threaded hole due to rust and cannot be disassembled. Loss of substrate. It can be used in chemical, aviation, military equipment and other occasions that require high insurance coefficients.

6. Wear-resistant, heat-resistant, and corrosion-resistant: As the surface finish of the wire thread insert is extremely high, it can effectively reduce the friction between the internal and external threads, and the material itself has the characteristics of high temperature resistance and corrosion resistance. It can be used in parts that are frequently disassembled and installed and screw holes that are frequently rotated to extend its life.

7. Anti-vibration and anti-loosening: The special structure of the locking screw sleeve can lock the screw in the screw hole in a strong vibration and impact environment without loosening, and its locking performance is better than other locking devices. It can be used in instruments and meters, precision and precious power equipment, and aerospace, aviation, military equipment and other occasions that require high insurance coefficients.

8. Easy maintenance: In the case of thread processing errors or damaged internal threads repairing, the use of wire thread inserts can bring the base back to life, and the original screws can be used, which is fast and economical. A simple example, such as diesel engine body, textile parts, various aluminum parts, lathe tool tables, etc. will be scrapped due to damage to a screw hole. As long as it is re-tapped and the screw sleeve is installed, the waste will come back to life.

9. Conversion: The conversion of metric ←→English ←→international standard threaded holes with wire thread inserts is very convenient, fast, economical and practical, and is suitable for any import and export products.

Parameter

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment≤4000USD, 100% in advance. Payment≥4000USD, 30% T/T in advance ,balance before shippment.

Q: Do you accept customization?
A: Yes, we can accept the customization of material, specification, painting color, length accuracy, and certain non-standard products

Xinxiang Flight Fastener Co., Ltd. is a professional manufacturer engaged in the design and manufacture of Thread Inserts, Self-Tapping thread inserts and other threaded fasteners. National high-tech enterprises. The company has independent technology development strength, advanced design level, automatic production equipment and high-precision detection equipment. Professional to provide customers with Thread Inserts, Self-Tapping thread inserts and other threaded fastener product design and use of the whole process of technical support. The company has passed ISO9001:2015 quality system certification. "AVIC-FLIGHT" brand was awarded the certificate of "famous brand in China" by China product quality evaluation center. The company has obtained more than 15 utility model patents and 12 software copyrights.

The company has more than 70 sets of processing equipment, mainly automatic equipment. The products are widely used in communication base station cooling device, automobile power transmission system, aerospace, aircraft, ship, wind power transmission system, national power grid transmission equipment, communication electronic equipment, medical equipment, heavy engineering machinery equipment, semiconductor high-end equipment and other fields.

The company can produce Thread Inserts products that meet the corresponding standards according to customer requirements. It can be produced according to MS21209, DIN8140, N926, ITN32760, MO-44421 and other standards.

The company's Thread Inserts cover Free running and Screw lock thread specifications in metric and English systems.Thread Inserts can be plated with Cd, Ag, Zn, Sn, green, red, blue and dry film lubrication. Self-Tapping inserts cover 302 / 303 and 307 / 308 thread specifications in metric and English systems. The materials are stainless steel 1.4305 (303), stainless steel 1.4301 (304), stainless steel 1.4401 (316), brass. Case hardened steel, zinc plated yellow chromed or zinc plated blue passaged.The company can produce 60 million pieces of inserts with various specifications every year, and provide all kinds of auxiliary tools.
