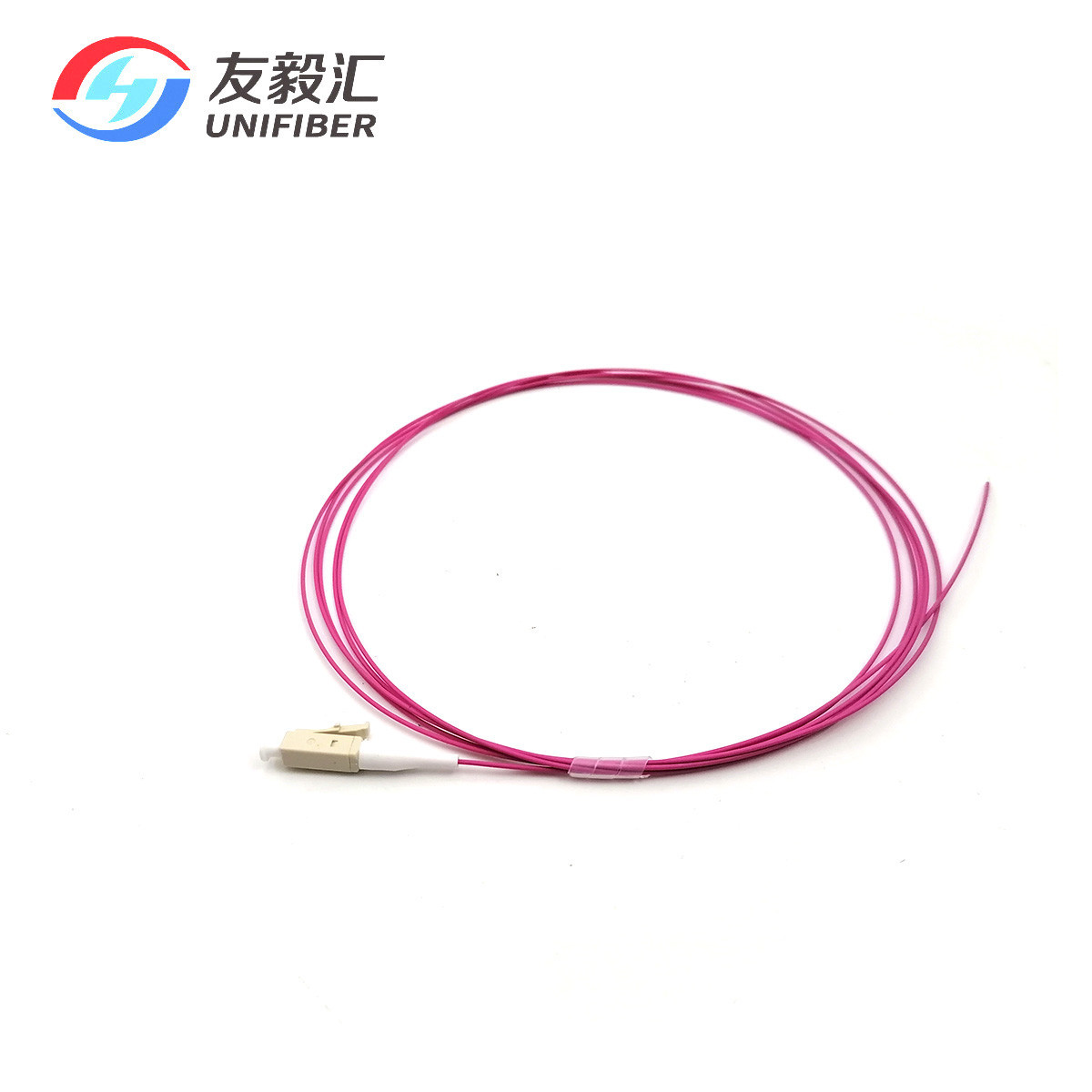

LC UPC 900um Buffer Fiber Optic Pigtail Multimode 50/125um OM4

Categories Fiber Optic Pigtail
Brand Name: UNIFIBER-OEM
Model Number: LC UPC Fiber Optic Pigtail
Certification: ROHS
Place of Origin: CHINA
MOQ: 100PCS
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/day
Delivery Time: 3~5 business days
Packaging Details: PE bag
Product: LC UPC Fiber Optic Pigtail
Connector: LC UPC
Fiber: Multimode OM4 50/125um
Cable Diameter: 900um Tight Buffer
Cable Jacket: OFNR or LSZH
Length: 1m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LC UPC 900um Buffer Fiber Optic Pigtail Multimode 50/125um OM4

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.


Features

Zirconia Ceramic Ferrule Optimum IL and RL.

0.9mm cable available for high dengsity splicing applications.

Tight buffer pigtail for ease of splicing.

Two Important Methods for Fiber Optic Pigtail Splicing

Fiber optic pigtail assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing

Mechanical Splicing

Nechanical splices are alignment fixtures that hold the ends of two fibers together by a self-contained assembly

Fusion Splicing

Fusion splices are made by "welding" the two fibers together usually by an electric arc

Mode
SM
MM
Polish
UPC
APC
PC
Insertion Loss
Typical ≤0.2dB
Maximum ≤0.3dB
≤0.25dB
Return Loss
≥50dB
≥65dB
≥35dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strengh
> 10kg
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)
