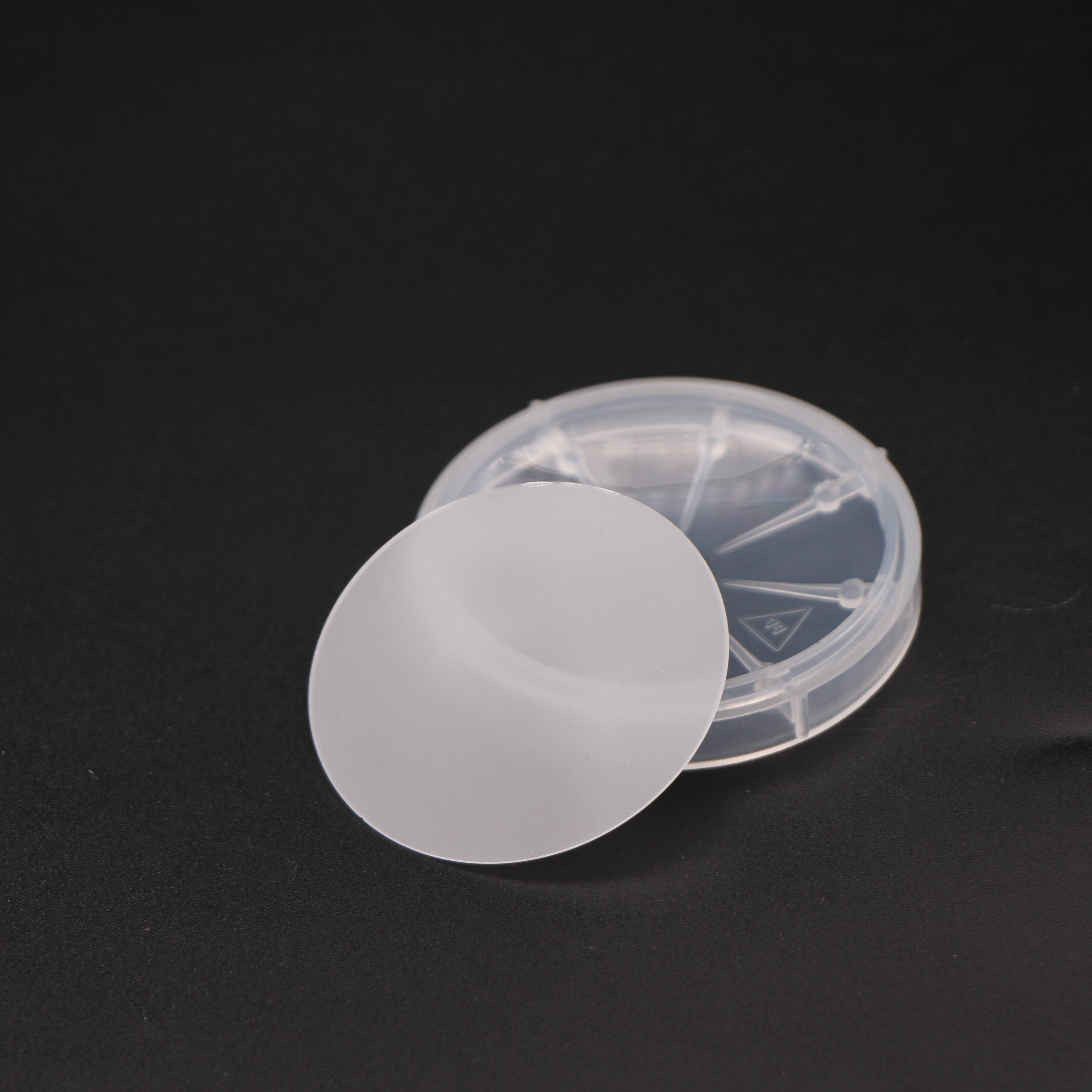

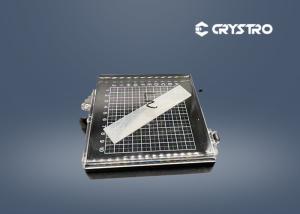

Non Linear LiNbO3 Lithium Niobate Crystal For SAW Filter

Categories Piezoelectric Effect Crystals
Brand Name: Crystro
Model Number: CR211011-04
Certification: SGS/COC
Place of Origin: China
MOQ: 1pc
Price: USD 20~200/pc
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000pcs per month
Delivery Time: 4-5 weeks
Packaging Details: Transparent clean box
Material: LiNbO3 Wafers X-cut 0.5mm Thickness Lithium Niobate Crystal
Surface Quality: 20/10
AR-Coating: R<0.2% @1550nm±40nm
Diameter: up to 4inch
Thickness: 0.5mm/1mm
Origin: China
Delivery: 1-4 weeks
Packing: individual container for each substrate, packed in bag filled with inert gas.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Non Linear LiNbO3 Lithium Niobate Crystal For SAW Filter

Factory Price Sell LiNbO3 Non-Linear Crystal


Lithium niobium crystal (LN)LiNbO3 is widely used in SAW filter, optical waveguide, photoelectricity modulator, frequency multiplication transducer and information storage as a functional crystal with excellent physical feature of anti high temperature and anti canker.

It has stable mechanical performance, and will appear different special feature after being doped differently.


LiNbO3 crystal combines low cost, good mechanical and physical properties as well as high optical homogeneity. Therefore, LiNbO3 wedges have been widely used in fiber isolators and circulators.


Anhui Crystro can offer LN wafers up to size Dia 4inch and 0.5mm Thickness.both sides polished as required.

The possible applications:


  • 1. EO Waveguide Phase Modulators
  • 2. EO Waveguide Amplitude Modulators
  • 3. Integrated Waveguide Photonics
  • 4. Wave Guide Lasers
  • 5. Polarizer for Optic Isolator
  • 6.Quasi-phase Matching for SHG and OPO

Basic Properties of LiNbO3

Crystal StuructureTrigonal, Space group R3c, Point group 3m
Melting Point1253℃
Mohs Hardness5
Density4.64g/cm3
DeliquescenceNone
Optical Homogeneity~5x10-5/cm
Transparency Range420-5200nm
Absorption Coefficient~0.1%/cm @1064nm
Refractive Indices at 1064nmne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm
Thermal Expansion Coefficients (at 25℃ )//a,2.0x10-6/K //a,2.2x10-6/K
Thermal Conductivity Coefficients38 W/m/K at 25℃
Thermal Optical Coefficientsdno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm
The Sellmeier Equations (λ in μm)no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2

Specification of LiNbO3 wafers:


OrientationX&Z-cut ±0.2°
Diameter50.8mm/76.2 mm/100mm ±0.3 mm
Orientation Flat(OF)22mm ±2 mm/32mm ±2 mm Perpendicular to X ±0.2°
Second Refer.Flat(RF)Cw225°±0.5°from OF Cw315°±0.5°from OF
Thickness250um/500um/1000um ±5um or more
Surface QualityDouble sides polished; S/D:20/10
TTV≤10um
WARP≤50um
Curie Temperature1142℃± 0.7℃
Refractive Indexn.=2.2878±0.0002 n.=2.2033±0.0002 prism coupler method@632.8nm
Edge BevelingEdge Roundind
