SC With Shutter Type InGaAs Detector Chip 1260-­1620nm Wavelength Small Area InGaAs Photodiode

SC with Shutter Type InGaAs Detector Chip 1260-­1620nm Wavelength Small Area InGaAs Photodiode

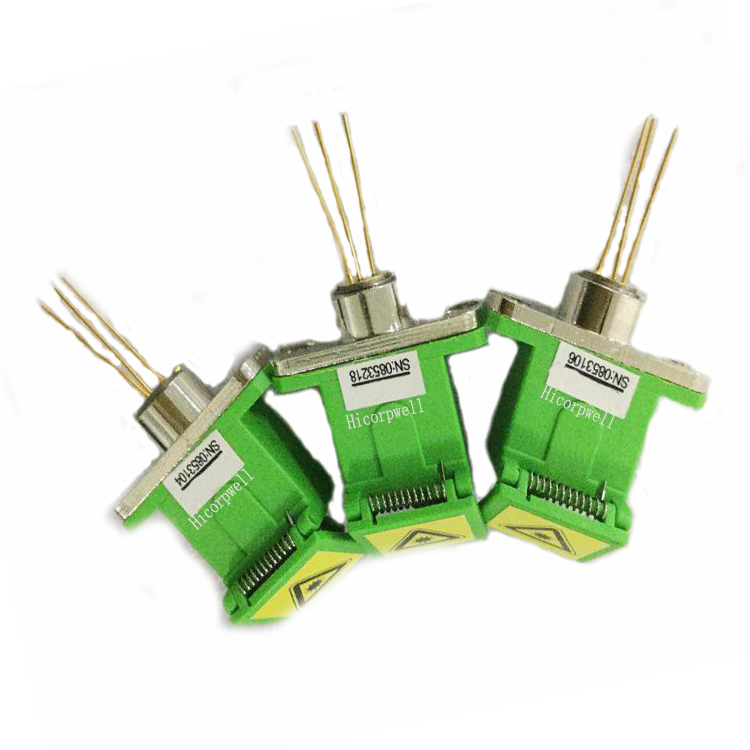

The SC with Shutter Type InGaAs Detector is most commonly used in CATV receivers,

power detection equipment and optical signal receivers for analog systems.

The 1100nm-1650nm small area InGaAs photodiode uses an InGaAs detector chip,

and features a low power consumption,small dark current, high sensitivity, great linearity, compact design and small volume.

1. Features:

Low Dark Current ,Low Return Loss

High Sensitivity

Coaxial Package ,Laser welding

Quick Pulse Response

High Reliability and Long Operation Life

2. Applications :

Analog Optical Receiver

Test Equipment

FTTH Network

CATV Forward/Return Path

EDFA Monitors

Optical transmission system

3. Absolute Maximum Ratings Tc=25°C:

4.Optical and Electrical Characteristics Tc=25°C:

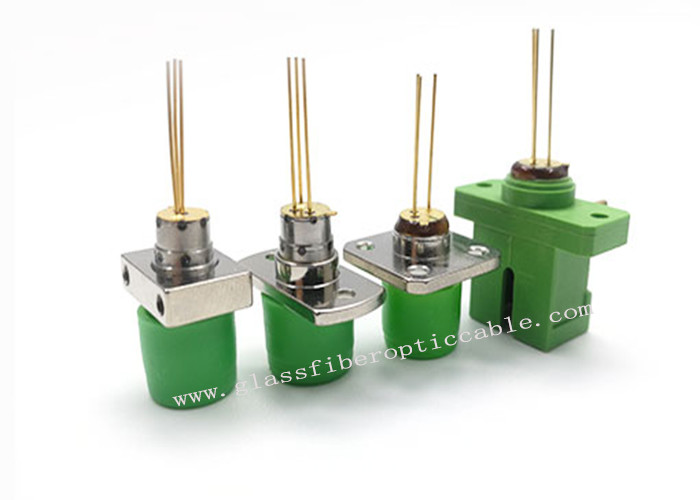

Hicorpwell is a professional plug in InGaAs coaxial photodetector diode modules (analog optical active receptacle ROSA plug in)

manufacturer in China.

We also provide butterfly laser diodes, InGaAs coaxial pigtail laser detector diode, coaxial pigtail diode laser device

and more.

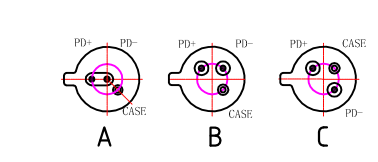

5. PD Pin assignment :
