| Categories | Automotive Circuit Breakers |
|---|---|
| Brand Name: | Tian Rui |
| Model Number: | E96 |
| Certification: | ROHS |
| Place of Origin: | China |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T,Paypal, Western Union |
| Supply Ability: | 1000000PCS/Month |
| Delivery Time: | 5-7 Days |
| Packaging Details: | PE Bag, Carton |
| Rated Current: | 25A-200A |
| Rated Voltage: | 48V DC |
| Reset Type: | Manual Reset |
| Type: | Thermal Circuit Breaker |
| Button: | Red or Yellow |
| Operating Temperature: | -40C to 85C |
| Pole: | Single Pole |
| Interrupt Rating: | 3000A @ 30Vdc |
| Application: | Boat, Marine |
| Packing: | PE bag |
| Company Info. |
| Dongguan Tianrui Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
E96 Marine Boat Panel Mount Overload Protector Manual Reset Waterproof Circuit Breaker
Single Pole Thermal Type Breakers
| Applications | Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine systems . Others include battery chargers and DC audio systems. compartment and bilge area applications. |
| Rating | 25-200A, 48Vdc |
| Interrupt Rating | 3000A @ 30Vdc |

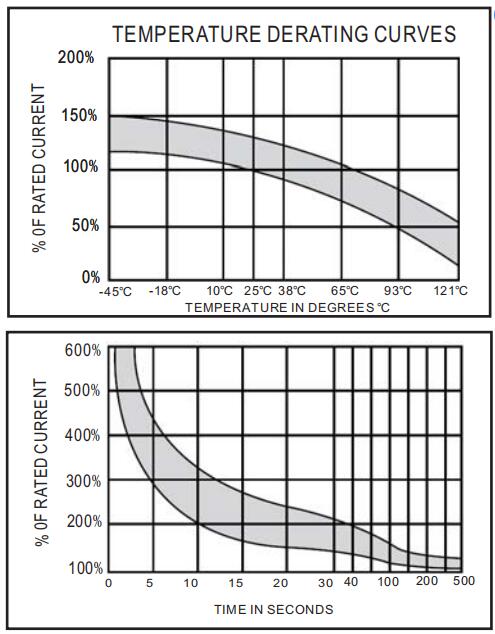

| Operating Temperature Rating | -25°F (-32°C)to 180°F (82°C) |
| Storage Temperature Rating | -30°F (-34°C) to 300°F (149°C) |
Materials | Black UL-rated 94V0 thermoset plastic . |
| Thermoplastic elastomer stud insulators are provided on covered units with F-style (surface-mount) bases | |
| Marking | Standard marking includes amp ratings and part numbers. Custom markings also available. |

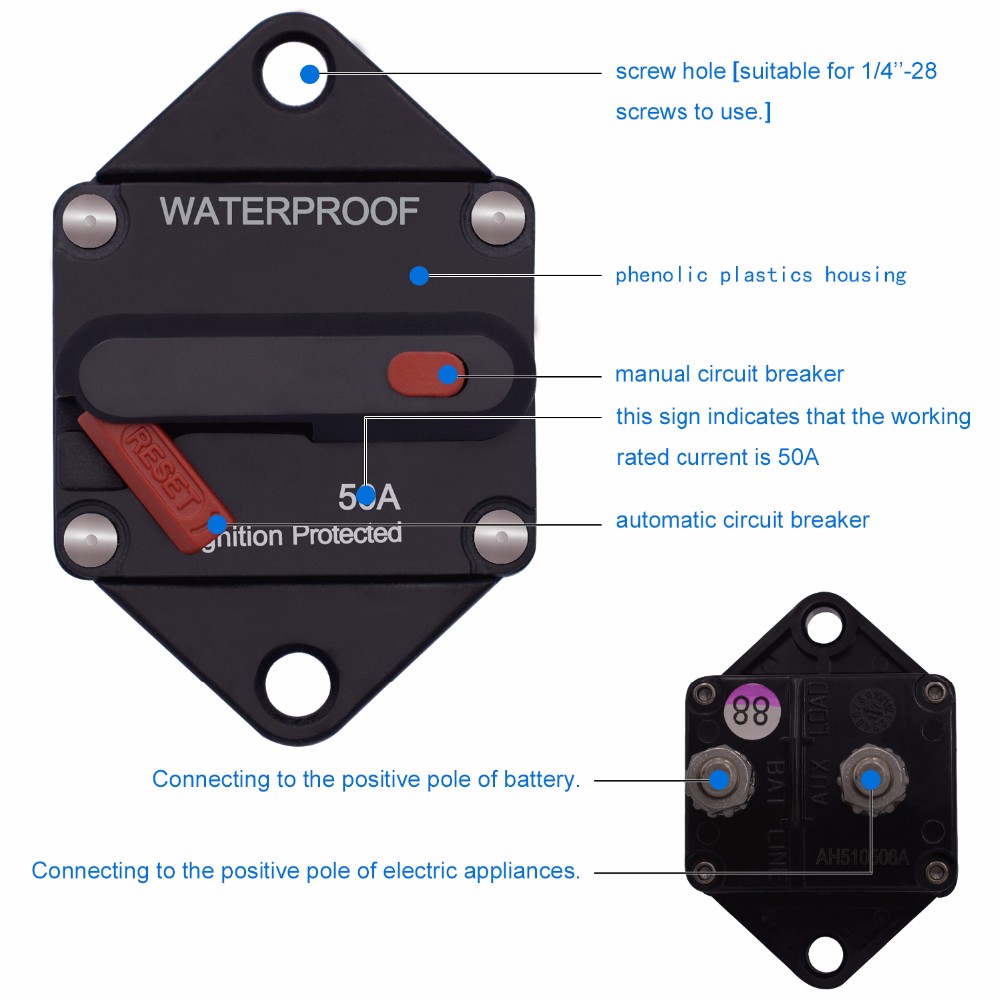

| Termination | 1/4-28 threaded studs |
| Torque Rating | 50 in-lbs (5. 6N.m) max |

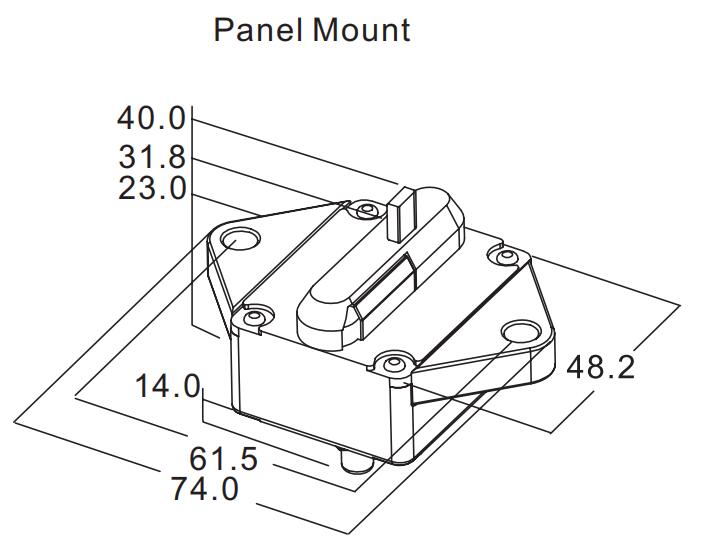

| Mounting Torque Rating | Panel mount; 50 in-lbs (5. 6N.m) max. Threaded insert option has a max torque of 25 in-lbs (2. 8N.m). |
| Ingress Protection Rating | Ip67 |
| Compliances | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
| E96 -Type II, 48V | 025 -25 amps |
| 030 -30 amps | |
| 035 -35 amps | |
| 040 -40 amps | |
| 050 -50 amps | |
| 060 -60 amps | |
| 070 -70 amps | |
| 080 -80 amps | |
| 090 -90 amps | |
| 100- 100 amps | |
| 110-110 amps | |
| 120-120 amps | |
| 130-130 amps | |
| 135- 135 amps | |
| 140- 140 amps | |
| 150- 150 amps | |
| 175- 175 amps | |
| 180-180 amps | |
| 200- 200 amps . |
Application
It can be used to control headlight, working light, anchor light, car refrigerator,car vacuum cleaner, car TV, marine pumps and other electrical appliances.

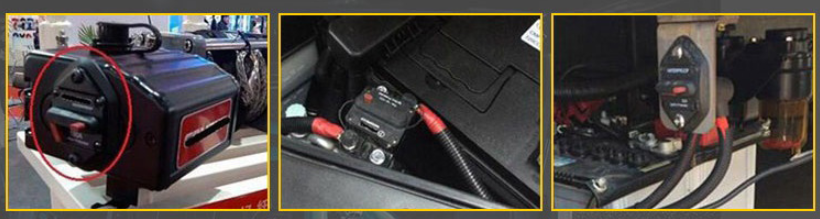

Protector used in winch of off-road vehicle
Battery output protection installed in the engine compartment
Installed on the tailgate of the car for protection
