Product name: | High Quality Stainless Steel Wire Mesh Chain Link Plate Conveyor Belt |
Material: | Stainless Steel 304/316 |
Voltage:: | 220V,380V |
Power:: | 1.5kw |
Width:: | 500mm |
Core Components:: | Chain conveyor belt |
Color:: | Natural |
Application:: | Transportation |
Marketing Type:: | Ordinary Product |
Company Info. |
Anping Source Wire Mesh Co.,Ltd |
View Contact Details |
Product List |

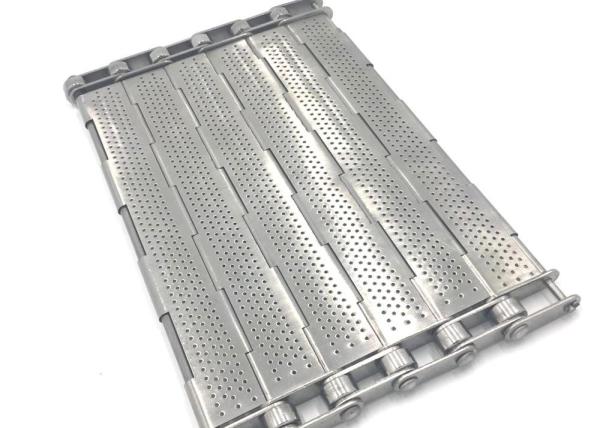

High Quality Stainless Steel Wire Mesh Chain Link Plate Conveyor Belt Product Description:
Advantage:
1, Adopt high quality stainless steel, SUS304, SUS316, and etc.
To ensure the high quality of the end products
2, Strictly follow worldwide advanced technical standard to produce all of our products
3, High degree corrosion, excellent oxidation resistance, can be used for a long term
Specification:
1, Available Material: Stainless steel SUS304, SUS304L, SUS316, SUS316L, copper, nickel, monel, titanium, silver, plain steel, galvanized iron, aluminum and etc.
2, Size: Up to clients
3, Pattern design: up to clients, and we can offer suggestion as well based on our experience.
Spec details:
Mesh Wire Diameter (mm) | Inserting Wire Diameter (mm) | Number of Inserting Wire /M | Number of Mesh Wire /M |
4 | 6 | 33 | 40 |
3.5 | 3.5 | 33 | 40 |
2.8 | 2.8 | 52 | 60 |
2 | 2 | 57 | 71 |
2.8 | 2.8 | 72 | 80 |
2.8 | 3 | 92 | 100 |
2.8 | 2.8 | 105 | 118 |
2.8 | 2.8 | 60 | 138 |
1.6 | 1.6 | 72 | 80 |
1.6 | 1.6 | 105 | 118 |
1.6 | 1.6 | 125 | 138 |
1.6 | 1.6 | 158 | 158 |
1.2 | 1.2 | 92 | 100 |
1.2 | 1.2 | 105 | 118 |
1.2 | 1.2 | 92 | 138 |
1.2 | 1.2 | 158 | 158 |
0.9 | 0.9 | 158 | 158 |

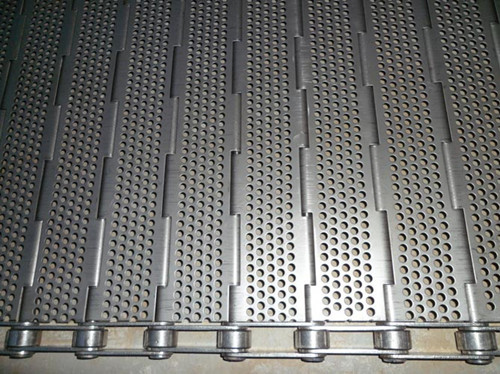

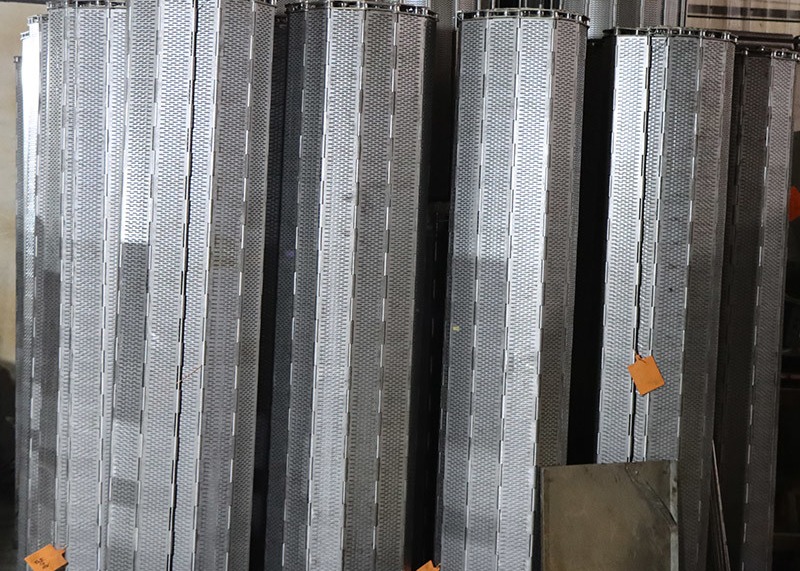

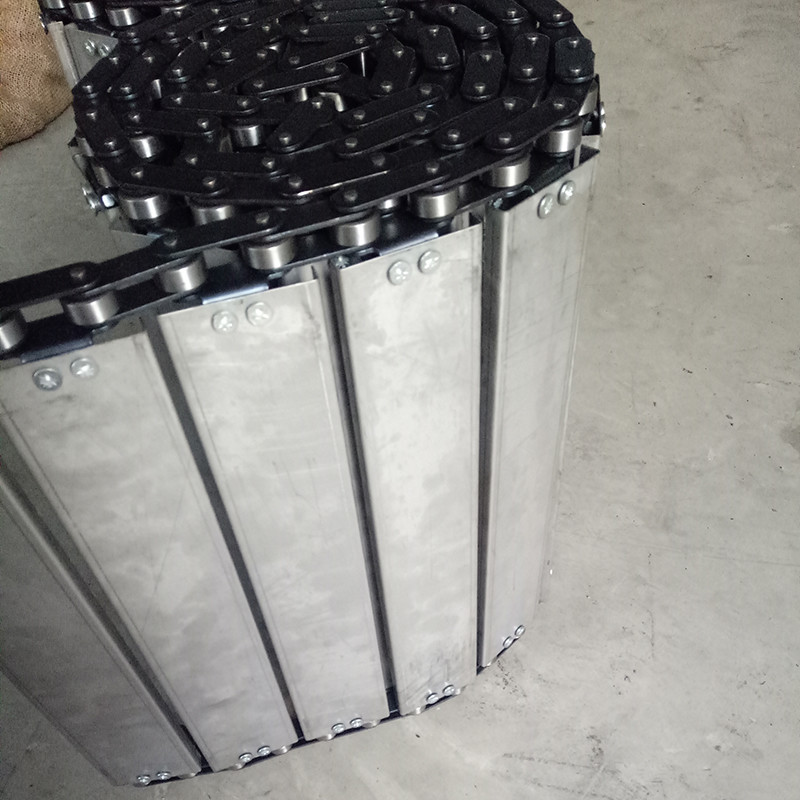

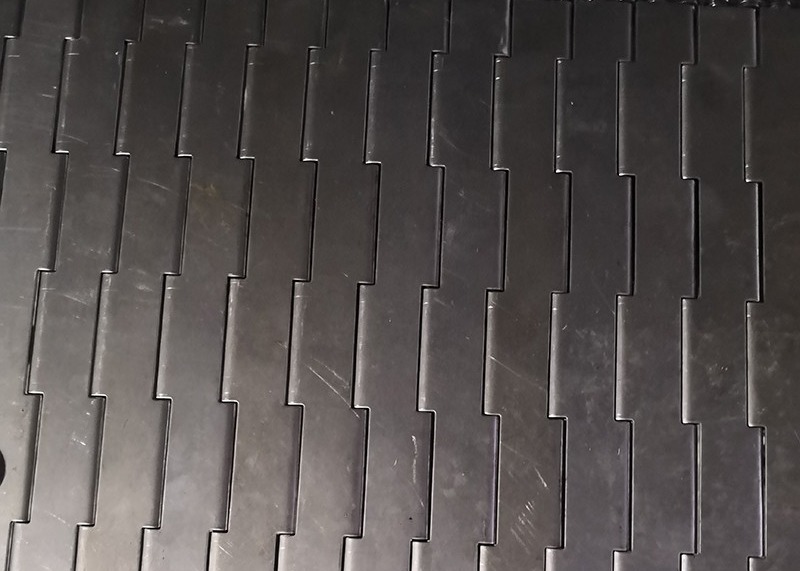

Product Images:

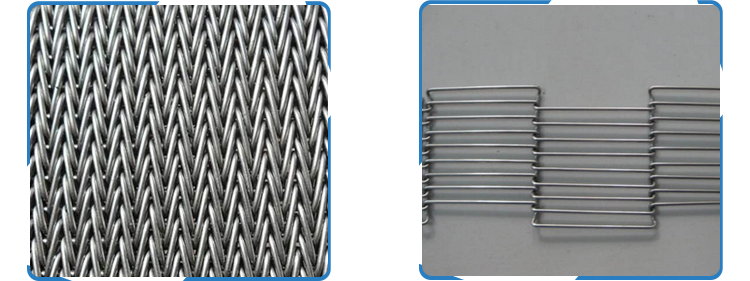

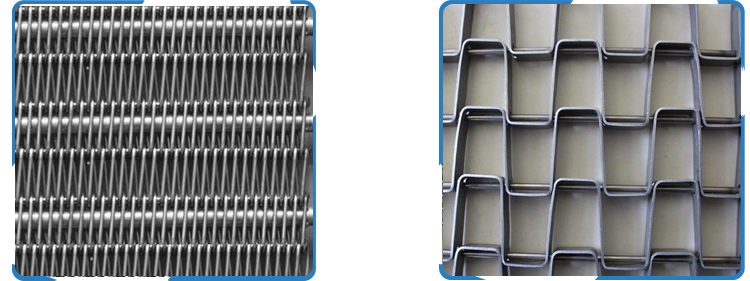

You may like:
