| Categories | Electronic Parcel Locker |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-S98C |
| Certification: | CE/RoSH/FCC |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 pieces per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN or customize according to customers' requirements |
| Product Name: | 430 SUS Light Lock |
| Model: | KR-S98C |
| Material: | 430 stainless steel |
| Working Voltage: | 12V/24V |
| Working Current: | 2.4A/1.2A |
| Size: | 98*66*13.8mm |
| Test: | Salt spray testing 48 hours |
| Usage: | Delivery cabinet /Sauna locker/School locker/ Chest freezer etc |
| Driven mothod: | Solenoid |
| Service life: | 500,000 times |
| Free samples: | ≤3 pcs |

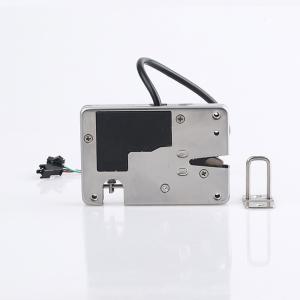

KERONG IP66 Waterproof 430 Stainless Steel Electronic Locker Lock
Product parameters
| Model | KR-S98C |
| Product Name | 430 SUS Light Lock |
| Size | 98*66*13.8mm |
| Weight | 197g |
| The material | 430 stainless steel+Zinc alloy lock tongue |
| Working voltage | 12V/24V |
| Working current | 1.2A/2.4A |
| Maximum power | 28W |
| Reaction time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 72 hours |
| Usage | Parcel cabinet /logistics locker/School locker/ Chest freezer etc |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Product Main Features
1. Driven by the motor, more stable and lower power consumption
support 12V & 24V
2. Lock shells are made of deactivated 430 stainless steel,
anti-force performance: 250kgs
3. IP66 Waterproof. All electronic parts are protected with the
sealed ABS box
4. Built-in push block helps push the door, thrust can be adjusted
5. Lock hook detection function
6. Mechanical emergency lever, can be unlocked manually in case of
a power outage
7. AWG24 wires with PVC protecting tube
8. Support customizing wires and terminals
Product Details
Other Lock Options
Model | Size | Working voltage | Maximum power | IP rating | Revolution speed |
KR-S70 | 70*68*18mm | 12V/24V | 1.2W | IP66 | 1 Rev/s |
| 78*66.2*20.3mm | 8V/24V | 0.72W | / | 4.5 Rev/s |
| 79*82.5*19.2mm | 8V~24V | 1.8W | IP66 | 4.5 Rev/s |
| 91*66.2*20.3mm | 8V/24V | 0.72W | / | 4.5 Rev/s |
Our products KR-S98C electronic cabinet lock is applied in parcel
delivery locker, vending machine, express cabinets, freeze locker,
gym cabinets, etc.
