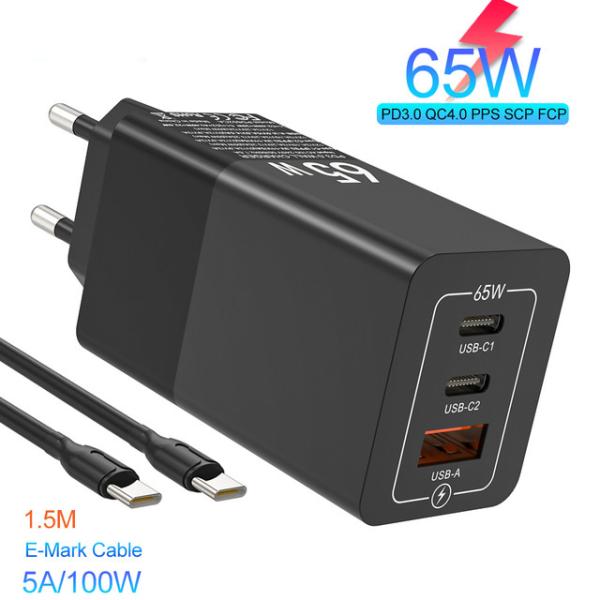

PD GaN Fast Charger 3port QC4.0 65W Type C Charger Adapter 45W 20W

Categories	GaN Fast Charger
Brand Name:	OEM
Model Number:	GaN-09
Certification:	CE, ROHS, FCC, KC
Place of Origin:	CHINA
MOQ:	1000PCS
Price:	USD13-14/PC
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Month
Delivery Time:	15-20Working Days
Packaging Details:	Standard Box
Item Name:	PD65W GaN USB 3port Fast Charger
Material:	PC Fireproof Material
Color:	Black
Input Voltage:	100-240V 50/60Hz 1.5A
Total Output:	65W max
Connector:	1 USB A+2 USB-C
Product Weight:	140g
Product Size:	763239mm

Contact Now

Add to Cart

Company Info.

Shenzhen Xishen Development Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

PD GaN Fast Charger 3port QC4.0 65W Type C Charger Adapter 45W 20W

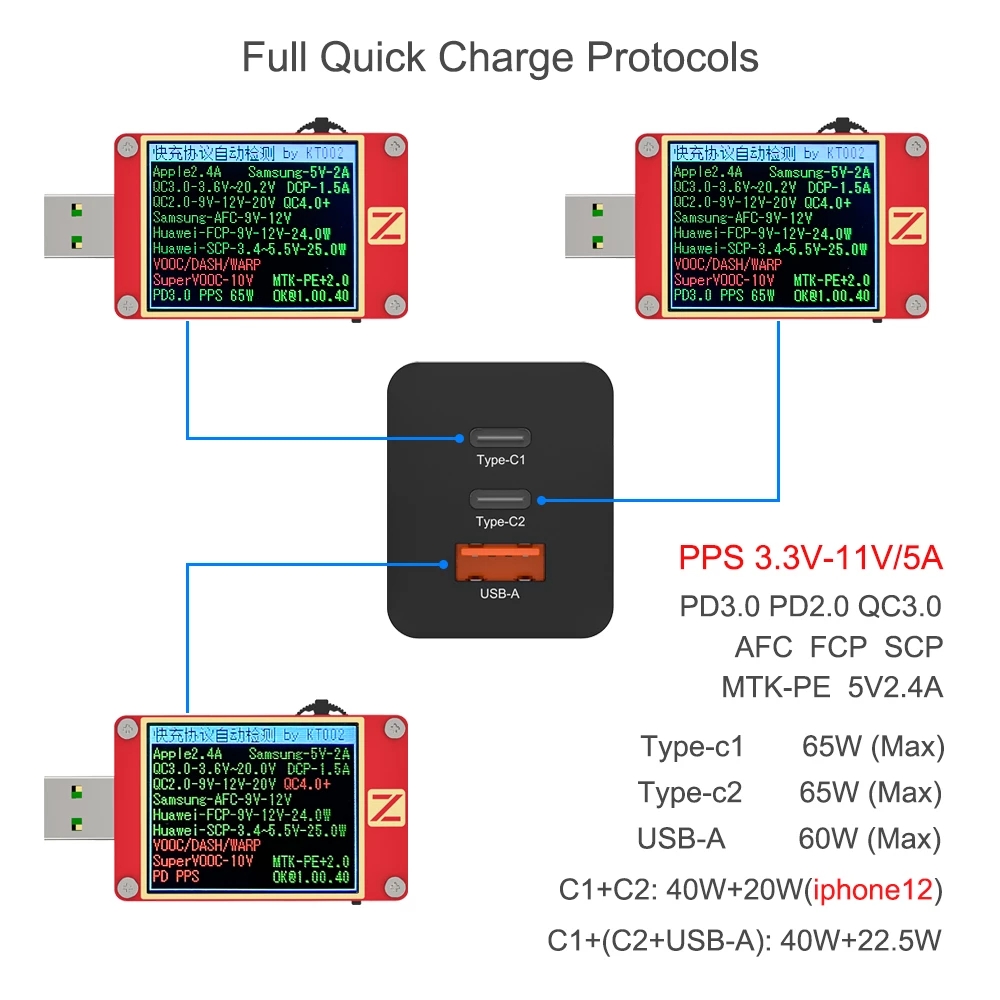

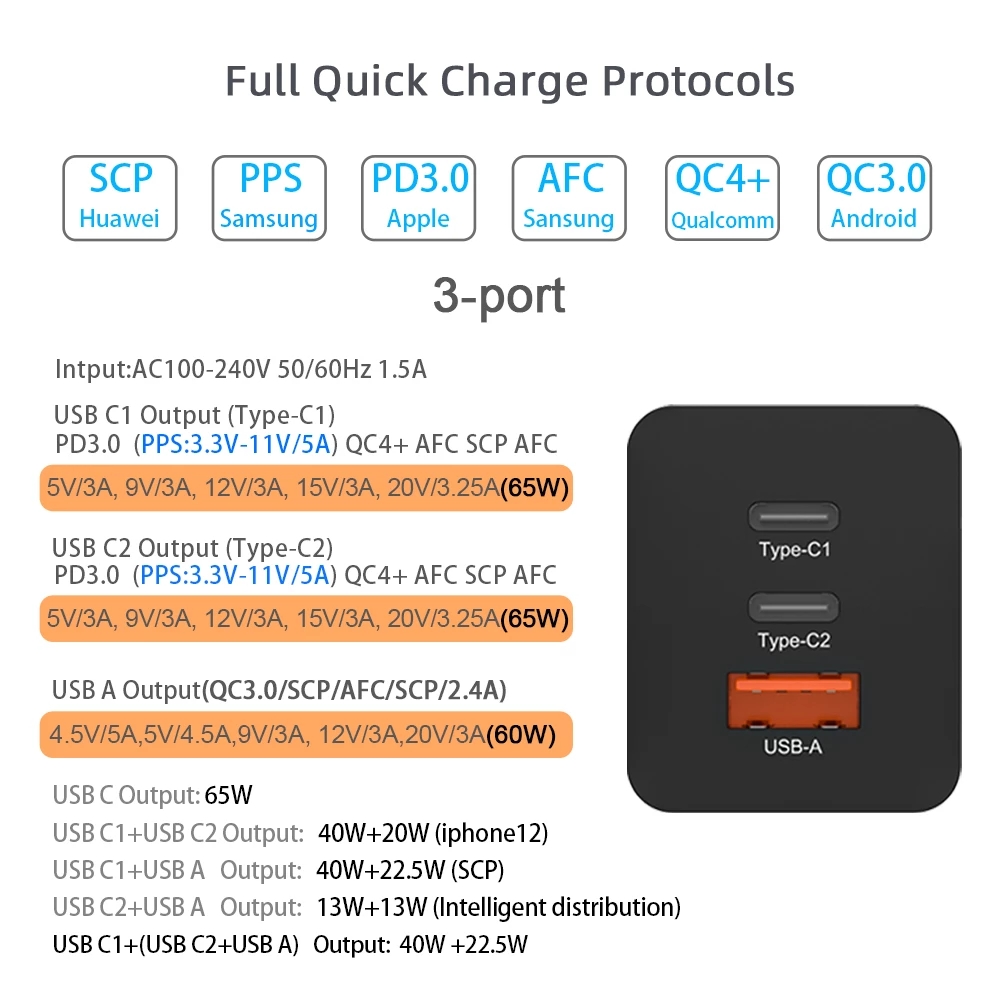

Features:

3-Ports
USB A Output(QC3.0/SCP/AFC/SCP/2.4A):4.5V/5A,5V/4.5A,9V/3A,
12V/3A,20V/3A(60W)

USB C1 Output (Type-C1) PD3.0 (PPS:3.3V-11V/5A) QC4+ AFC SCP
FCP:5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A(65W)

USB C2 Output (Type-C2) PD3.0 (PPS:3.3V-11V/5A) QC4+ AFC SCP
FCP:5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A(65W)

When multiple ports are used at the same time:

USB C Output: 65W
USB C1+USB C2 Output: 40W+20W (iphone12)
USB C1+USB A Output: 40W+22.5W (SCP)
USB C2+USB A Output: 13W+13W (Intelligent distribution)
USB C1+(USB C2+USB A) Output: 40W+22.5W

Product Details

Item
65W GaN Charger
Material
PC fireproof
Color
Black/White ( Customized color is welcome)
Max Power
65W
Input
AC100-240V 50/60Hz 1.5A
Output
Type-C1:3.3.-11V--5A; 3.3-21V--3A; 15V--3A ;9V--3A; 12V--3A 15V-3A
20V--3.25A ( used alone)
Type-C2: 3.3.-11V--5A; 3.3-21V--3A; 15V--3A ;9V--3A; 12V--3A 15V-3A
20V--3.25A ( used alone)USB-A: 3.4-5.5V--5A; 5V--3A; 9V--3A; 12V--3A;20V---3A;( used alone)
Type-C1 + Type-C2: 45W + 18W (63W)
Type-C1+ USB-A: 45W + 18W (63W)
Type-C2+ USB-A: 5V--3A (215W)
Type-C1+ Type-C2 + USB-A:45W + 15W (60W)
Size
39.5*31*69.5mm
Usage
Support for Switch, for Macbook,laptop,mobile phone.
Protection
Over-current,Over-voltage,short-circuit,high-heating,aging
test,12-24
Agreement
PPS,SCP,FCP,AFC,PD3.0,QC3.0,5V2.4A
Certificates
CE RoHS FCC BIS TUV GS CB

Product Tags:

PD GaN Fast Charger

QC4.0 GaN Fast Charger

3port Type C Charger Adapter

PD GaN Fast Charger 3port QC4.0 65W Type C Charger Adapter 45W 20W

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Xishen Development Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Item	65W GaN Charger
Material	PC fireproof
Color	Black/White ( Customized color is welcome)
Max Power	65W
Input	AC100-240V 50/60Hz 1.5A
Output	Type-C1:3.3.-11V--5A; 3.3-21V--3A; 15V--3A ;9V--3A; 12V--3A 15V-3A 20V--3.25A ( used alone) Type-C2: 3.3.-11V--5A; 3.3-21V--3A; 15V--3A ;9V--3A; 12V--3A 15V-3A 20V--3.25A ( used alone) USB-A: 3.4-5.5V--5A; 5V--3A; 9V--3A; 12V--3A;20V---3A;( used alone) Type-C1 + Type-C2: 45W + 18W (63W) Type-C1+ USB-A: 45W + 18W (63W) Type-C2+ USB-A: 5V--3A (215W) Type-C1+ Type-C2 + USB-A:45W + 15W (60W)
Size	39.53169.5mm
Usage	Support for Switch, for Macbook,laptop,mobile phone.
Protection	Over-current,Over-voltage,short-circuit,high-heating,aging test,12-24
Agreement	PPS,SCP,FCP,AFC,PD3.0,QC3.0,5V2.4A
Certificates	CE RoHS FCC BIS TUV GS CB
