Indicative Floating Polyethylene Or Steel Marine Navigation Buoys UV Resistant

Categories Marine Navigation Buoys
Brand Name: Henger
Model Number: customized
Certification: Iso 9001、BV、ccs
Place of Origin: China
MOQ: 1pcs
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Delivery Time: Soonest
Packaging Details: Naked
Name: Marine Navigation Buoys
Material: EVA, Polythene
Application: Navigation
Warranty: 12-24 months
Color: all colors are available
Key Word: Navigation Aids Buoys
Feature: UV Resistant
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Indicative Floating Polyethylene Or Steel Marine Navigation Buoys UV Resistant

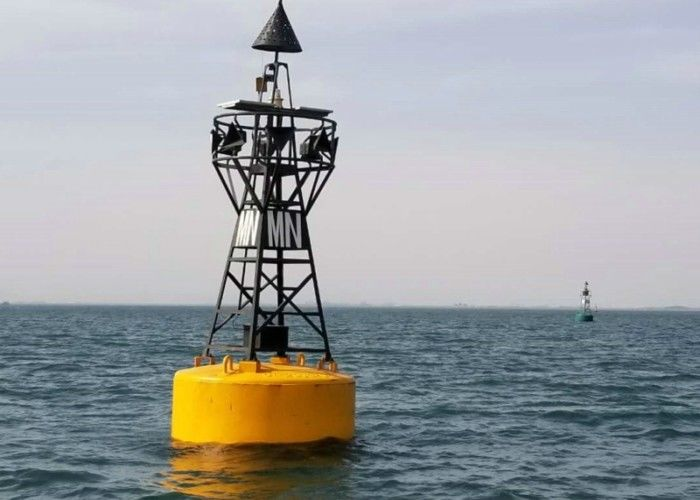

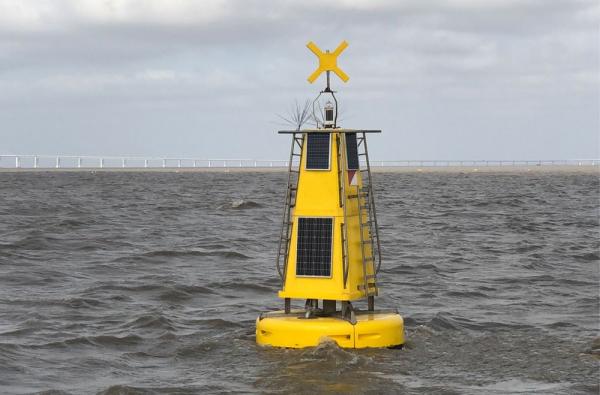

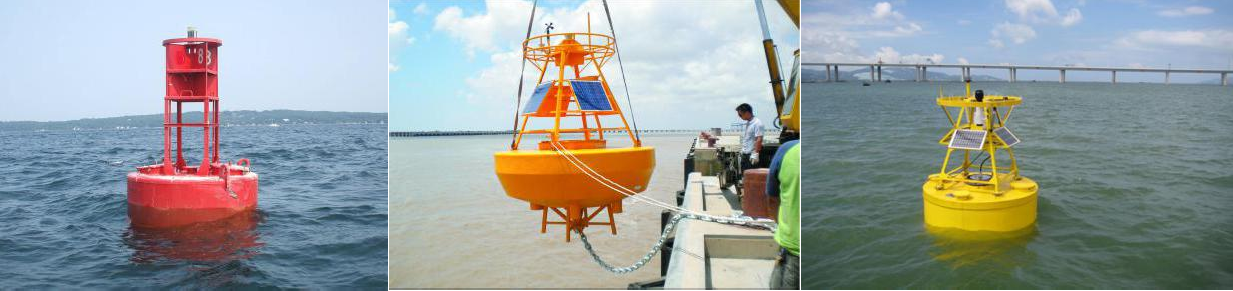

Indicative Floating Polyethylene Marine Navigation Buoys


Navigation Buoys Description


Navigation buoy is an artificial sign that helps guide the ship to navigate, locate and mark obstructions and warning, and provide safety information for various kinds of water activities. Navigation buoy are located in or near navigable waters to indicate the location of waterways, anchorages, beach hazards and other obstructions, to indicate water depth and wind regime, and to direct traffic in narrow waterways.



Polyethylene Navigation Buoy Technical Parameter


TypeHNF0.8HNF1.2HNF1.5HNF1.8HNF2.4HNF3.0
Body Diameter(mm)80012001500180024003000
Overall Height(mm)160022503900550074004850
Free board(mm)4004006007001000600
Focal Plane Height(mm)109516802660317545753050
Draft(mm)6006001200250030001300
Reserved Buoyancy(kg)2004501000178045004200

Steel Navigation Buoy Technical Parameter


Type


Body Diameter (mm)


Height (mm)

Lantern Support Height

(mm)


Local Height (mm)


Lantern


Draft (mm)


Water Depth (m)


HF1.5-D1


1500


5300


1800


2600


LED155


1150


3.5-15


HF1.8-D1


1800


5240


2350


2900


LED155


2100


6-15


HF2.4-D1


2400


7780


3040


4150


LED155


3830


13-40


HF3.0-D1


3000


7980


3450


4600


LED155


3480


13-40


HF1.5-D2


1500


3204


1270


1620


LED155


1100


<2


HF1.8-D2


1800


4270


2340


2940


LED155


1330


<10


HF2.4-D2


2400


5700


3040


3980


LED155


1720


<30




FAQ :

Q: Are you a factory or a trading company
A: We are a directly managed factory, welcome to visit us in Hefei, Anhui


Q: What size buoy can you provide?
A: Buoys, navigation buoys and mooring buoys with a diameter of 0.5m to 15m


Q: What kind of certificate can I get?
A: ZC, CCS, BV, RINA, KR, NK, GL, ABS, DNV


Q: How long is the delivery time?
A: Usually within 25 days


Q: What is the warranty?
A: 2 years after delivery


Q: Do you have foreign experience?
A: Yes, the products are exported to various foreign countries, and we also have foreign engineering projects.
