3.0mm LSZH Multimode Om4 Fiber Optic Cable Simplex Lc Upc To Lc Upc

Categories Fiber Optic Patch Cable
Brand Name: XDK
Model Number: Fiber Optic Patch Cord LC/UPC-LC/UPC,Muiltmode, OM4, Simplex
Certification: ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin: China/Vietnam
MOQ: negotiable
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 million termination/month
Delivery Time: 5-8 work days
Packaging Details: regular packaging
Fiber Mode: OM4 50/125um
Connector Type: LC/UPC-LC/UPC
Jacket Material: LSZH, PVC( can be required)
Jacket Color: Violet
Length: negotiable
Original factory: yes
OEM: available
Lead time: negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3.0mm LSZH Multimode Om4 Fiber Optic Cable Simplex Lc Upc To Lc Upc

Simplex 3.0mm LSZH Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord


Introduction of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.


Features of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord

1) Avalible in simplex, duplex connector options

2) Quick-tum service for fast delivery

3) Fiber options: OS2, OM1,OM3, and OM4

4) 100% tested for insertion loss and return loss

5) Other jacket colors available as custom with MOQ and lead time applicable


Specifications of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord

Connector TypeLC/UPC to LC/UPCFiber CountSimplex
Fiber ModeOM4 50/125um

OFL Bandwidth

(850/1300nm)

3500/500 MHz*km
Insertion Loss≤0.3dBReturn Loss≥35dB

Attenuation at 850/1300nm

(Typical)

3.5/1.5 dB/kmFerrule MaterialsCeramic
Cable Diameter3.0mmStrength MemberAramid yarn
Optical SourceVCSEL

Minimum Bend Radius

(Short term/Long term)

20D/10D
Cable JacketLSZH or PVCCable ColourVoilet

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH


Testing Lab

NoDevice nameNoDevice name
1Optical time domain reflectometer (OTDR)8GNZV Cable Torsion Testing Machine
2Fiber Polarization Mode Dispersion9GQNV Cable Flexing Testing Machine
3Fiber Dispersion ,Strain Tester10GJRV Cable Winding Testing Machine
4High Low Temperature Test Chamber11GZDV Cable Vibration Testing Machine
5Cable Impact Testing Machine12Cable Water Penetration Test
6Cable Squash Tensile Testing Machine13Fusion Splicer
7GWQV Cable Bending Tester14Cable Water Penetration Test Rig

Our advantages of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

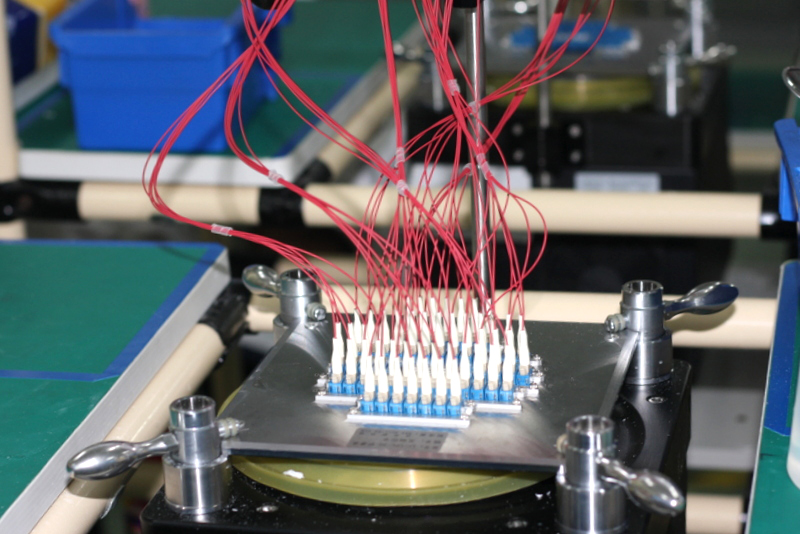

Factory pictures of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord

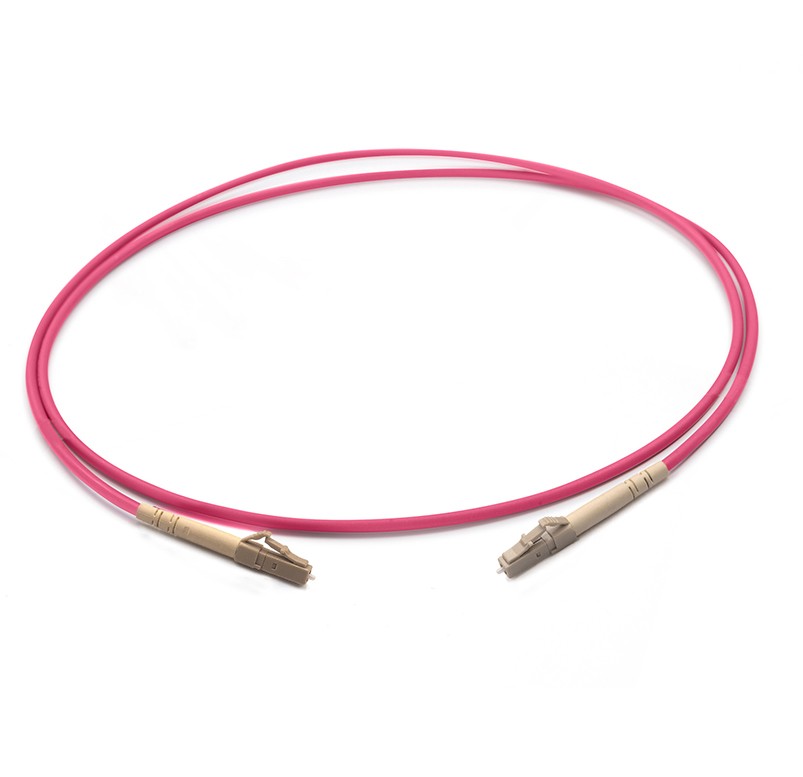

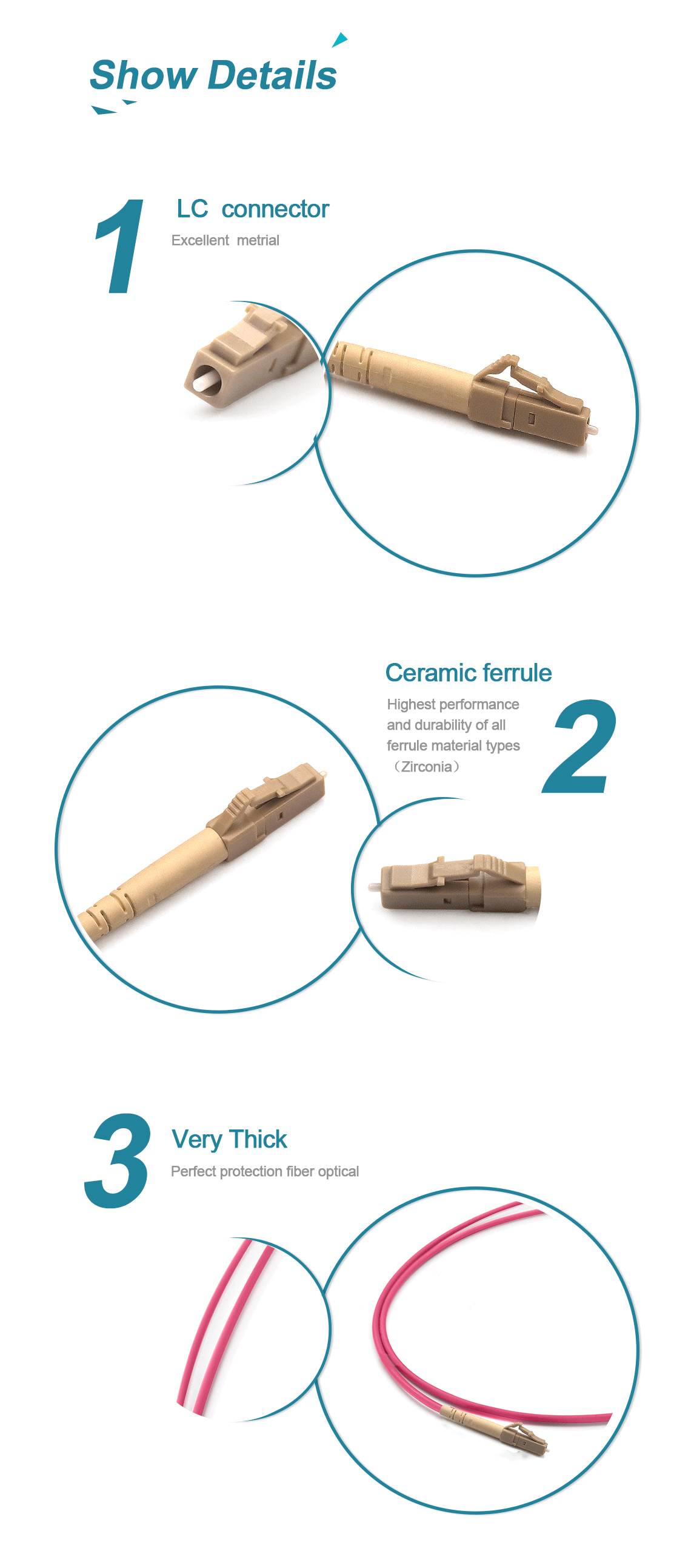

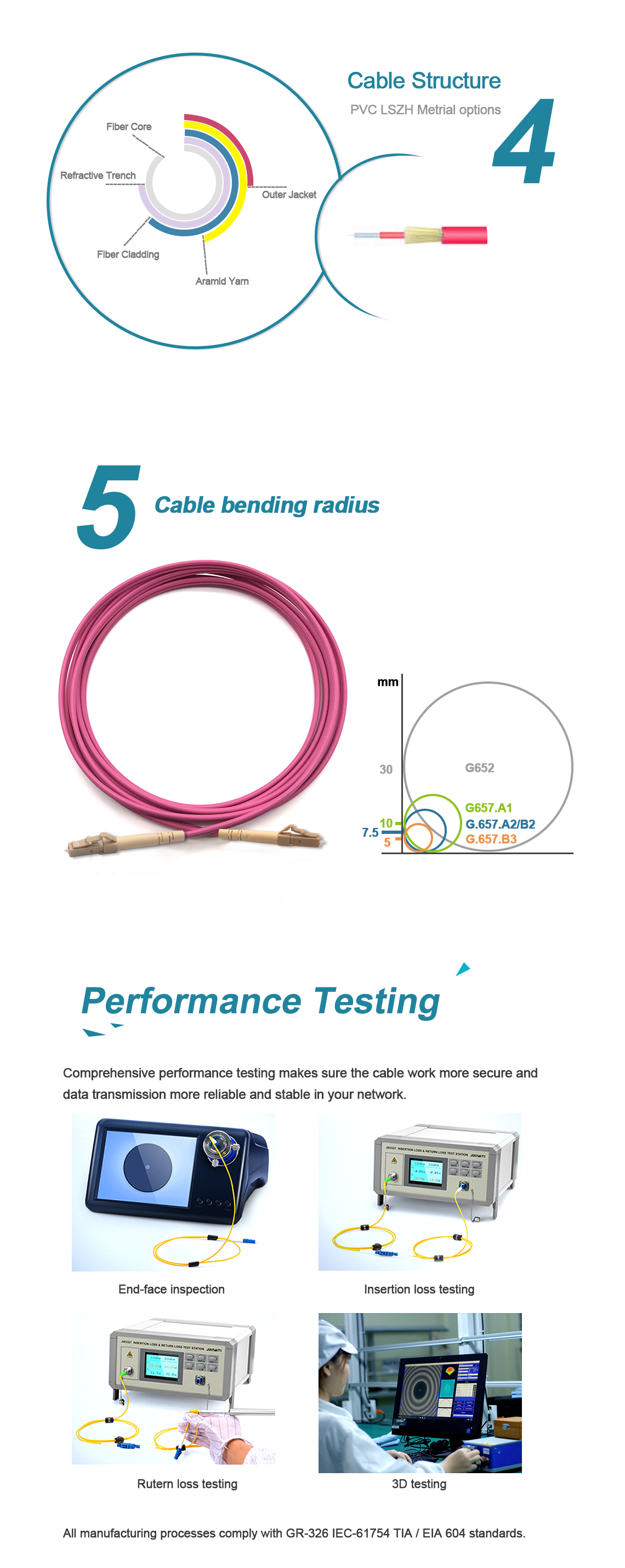

Pictures of Muiltmode OM4 LC/UPC-LC/UPC Fiber Optic Patch Cord
