High Density 5.7 Lbs/Ft3 Aluminium Honeycomb Panels aerospace for Aircraft Interiors

Categories Aluminium Honeycomb Panels
Brand Name: WDF
Model Number: WDF-AHP
Certification: ISO
Place of Origin: Guangdong,China
MOQ: 100sqm
Price: USD 12.5-40 per sqm
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 SQM per Month
Delivery Time: 5-15 working days upon deposite
Packaging Details: Seaworthy Plywood Pallets
Texture: Mill Finish
Regular thickness: 6.0mm, 10.0mm, 15.0mm, 20.0mm, 25.0mm
Coating: Pre-Painted/Roller Coating, Painting
Composite Press: Hot Press or Cold Press
Fire resistance: A2 Grade
Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof
Color: RAL color or customer made
Edge Treatment: Open or Closed
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Density 5.7 Lbs/Ft3 Aluminium Honeycomb Panels aerospace for Aircraft Interiors

Light Weight Aluminum Honeycomb Panels Aerospace For Aircraft Interiors


Definition

Aluminum Honeycomb Panels Aerospace is a sandwich panel made with aluminum facings and high density 5.7 lbs/ft3

aluminum honeycomb core, designed for use in aircraft interiors.


Structure

Aluminum Skin + Aluminum Honeycomb Core + Aluminum Skin


Specification:

CoatingPVDF Kynar500 / FEVE / PE
Coating Thickness:PVDF & FEVE >25microns
PE>15microns
Panel Thickness2mm, 3mm, 4mm, 5mm, 6mm upto 15mm
Aluminum Skin Thickness0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm
Alloy1100, 3003, 3005, 3105, 5005
Panel Width1220mm, 1250mm, 1500mm, 1575mm, 1750mm
Panel Length2440mm, 4880mm, 5000mm, 5800mm
CoreLDPE core, Mineral Filled FR core
WDF Processing Methods:
Cutting to sizeMillingDrillingJoiningCut to Shape
Panel foldingPanel edgingInsertsPaintingVeneering

Features:

  • High strength-to-weight ratio

  • Good cost effectiveness

  • Service temperature: up to 180oF

Packing and Loading:

Packing MethodLoading Quantity for 3mmLoading Quantity for 4mm
Wooden Pallet1500pcs1100pcs
In Bulk (nude packing)2000pcs1400pcs

Application

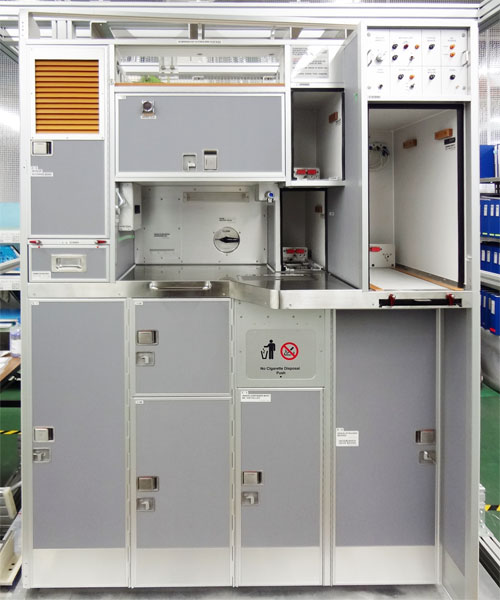

designed for use in aircraft interior structural and nonstructural applications such as monuments, shelving, partitions, bulkheads and galleys.
