8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

Categories Slider Stepper Motor
Brand Name: VIC-TECH
Model Number: VSM08102
Certification: RoHS
Place of Origin: Jiangsu, China (Mainland)
MOQ: 1Unit
Price: $1.88~$7/Unit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000 Units/year
Delivery Time: 15-30 work days
Packaging Details: Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle(degrees):: 18 degree
Phase: 2 phases
Voltage: 3.3V
Resistance: 20 Ω±10%
Weight: 4 g
Rotation: CW/CCW
Type: Permanent Magnet
Holding Torque: 1.5. gf.cm~2.0 gf.cm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

VSM08102 8mm micro slider stepper motor screw stepper motor with bracket 2 phase 4 wire stepper motor

VSM08102 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

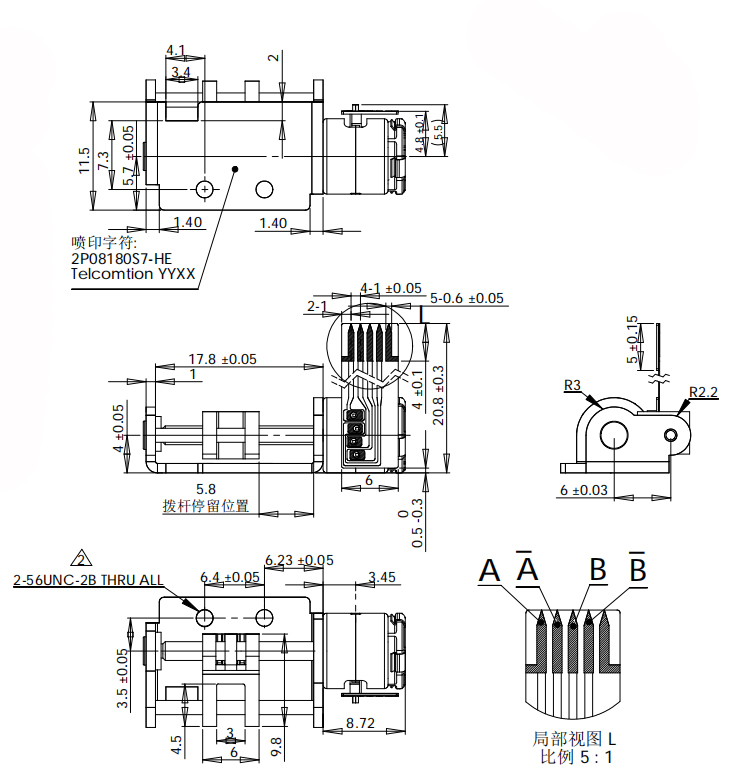

Mechanical Dimension:MM

Technical Features

VSM08102 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,
the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Model No.

VSM08102

Coil Resitance

20Ω±10%

Rated voltage

3.3 V DC

No. of phases

2 phases

Step Angle

18°/STEP

Max Starting Frequency

800 PPS min,(AT 3.3 V DC)

Max Slewing Frequency

2000 PPS min,(AT 3.3 V DC)

Pull in Torque

1.5 gf-cm min(AT 500 PPS,3.3 V DC)

Pull out Torque

2.0 gf-cm min(AT 500 PPS,3.3 V DC)

Insulation Class

CLASS E FOR COILS

Insulation Strength

100V AC FOR ONE SECOND(3mA MAX)

Insulation Resistance

1.0mΩ(DC 100 V)

Operating Temperature

-10~60℃

Encironmental Conditions Using Screw Grease EM-60L

-40~90℃


High quality and the best price.
Competitive Advantage

  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

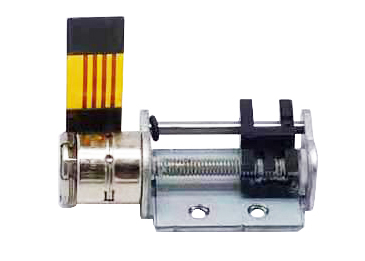

Product Detail Presentation
