Solar Panel Protection Pigeon Proofing Protective Barriers Mesh System

Categories Solar Panel Clips
Brand Name: HUIHAOCUSTOM
Model Number: Solar Panel Protection mesh
Certification: ISO9001-2015
Place of Origin: China
MOQ: 10000 PCS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500000 SETS PER 30 DAYS
Delivery Time: 8 WORK DAYS
Packaging Details: in a plastic bags then put all of them in a carton boxes
Name: Solar Panel Protection Pigeon Proofing Protective Barriers Mesh
Application: Solar Panel Protection System
Feature: easy installtion
Material: Aluminum alloy , stainless steel
Standard Size: 2.4 mm / 95 mm , 29 mm x 31mm
Contain: self locking washer and J hook
ODM/OEM: acceptable
Sample: sample is free
Service: customization
Factory name: Hebei Xiangyi metal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Solar Panel Protection Pigeon Proofing Protective Barriers Mesh System

Solar Panel Protection Pigeon Proofing Protective Barriers Mesh system

Solar Panel Pigeon Proofing / Protective Barriers: Effective, Affordable, Attractive.

Solar Panel Pigeon Proofing / Protective Barriers Saves The Day!


Our solar panel pest solutions act as an animal deterrent to safeguard your solar investment. Offering you peace of mind and:


  • Expertly cut to fit and installed by Premier Solar Cleaning, LLC

  • No roof or module (solar panel) penetration necessary

  • Long lasting and non-corrosive

  • Clean, modern, unobtrusive black barrier

Solar Panel Protection Pigeon Proofing Protective Barriers Mesh system introduction

Solar panel clips are used to secure wire mesh to solar panels. The number of clips needed will depend on the solar panel system. The clip is designed to protect the integrity of expensive solar arrays. The clips don’t pierce the solar panels and will firmly hold wire mesh screen to the module assembly preventing squirrels and rodents from damaging the interconnection wires and birds from building nests under the solar panel.The clips can be ordered separately, not necessary to bound with the mesh together.


Specification details of the solar panel clips

NameEasy Installation Roof Mounting System Stainless Steel Solar Panel Clips
Containsolar panel clips include J hook and Self locking washers
J hook materialaluminum alloy wire, stainless steel wire, galvanized steel wire
J hook size2.4 mm x 95 mm / 114 mm, 2 mm x 120 mm
Washer materialhardness 0.6mm thickness aluminum alloy sheet, 0.4mm SS or G.S
washer size29 mm x 31 mm , 30mm , 40mm , 50 mm
Finshed for washerUV coating black color , ZINC COATED , polished
Noted for the material treatment
  • For the j hooks, the material is must choose anneaded steel wire /stainless steel wire or soft aluminum wire. it is very important for the fixing wire mesh. soft wire is easily for bending.

  • For self locking washer, we must choose hardness material to make sure to lock firmly and nondeformable. at the same time, we must concider left time, so uv coated for aluminum control washer or choose stainless steel material to make rustproof.

Advantages of solar panel clips
  • Does not violate panel integrity.
  • solar panel clips can easily be trimmed or bent after assembly.
  • Install and remove quickly and easily
  • The specification can be customized
  • The solar panel clips are sold separately or with the solar panel mesh


Applications of the solar panel clips fasteners

QTY used for installation:

The number of clips needed will depend on the solar panel system, below are the regular QTY.


  • The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 clips on each short edge.
  • The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 clips.
  • The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 clips.
  • The distance between the clips: when install the mesh, we clips every 18 inches/450mm.


Package details of the solar panel clips

typesstandard package sizecarton size in standard

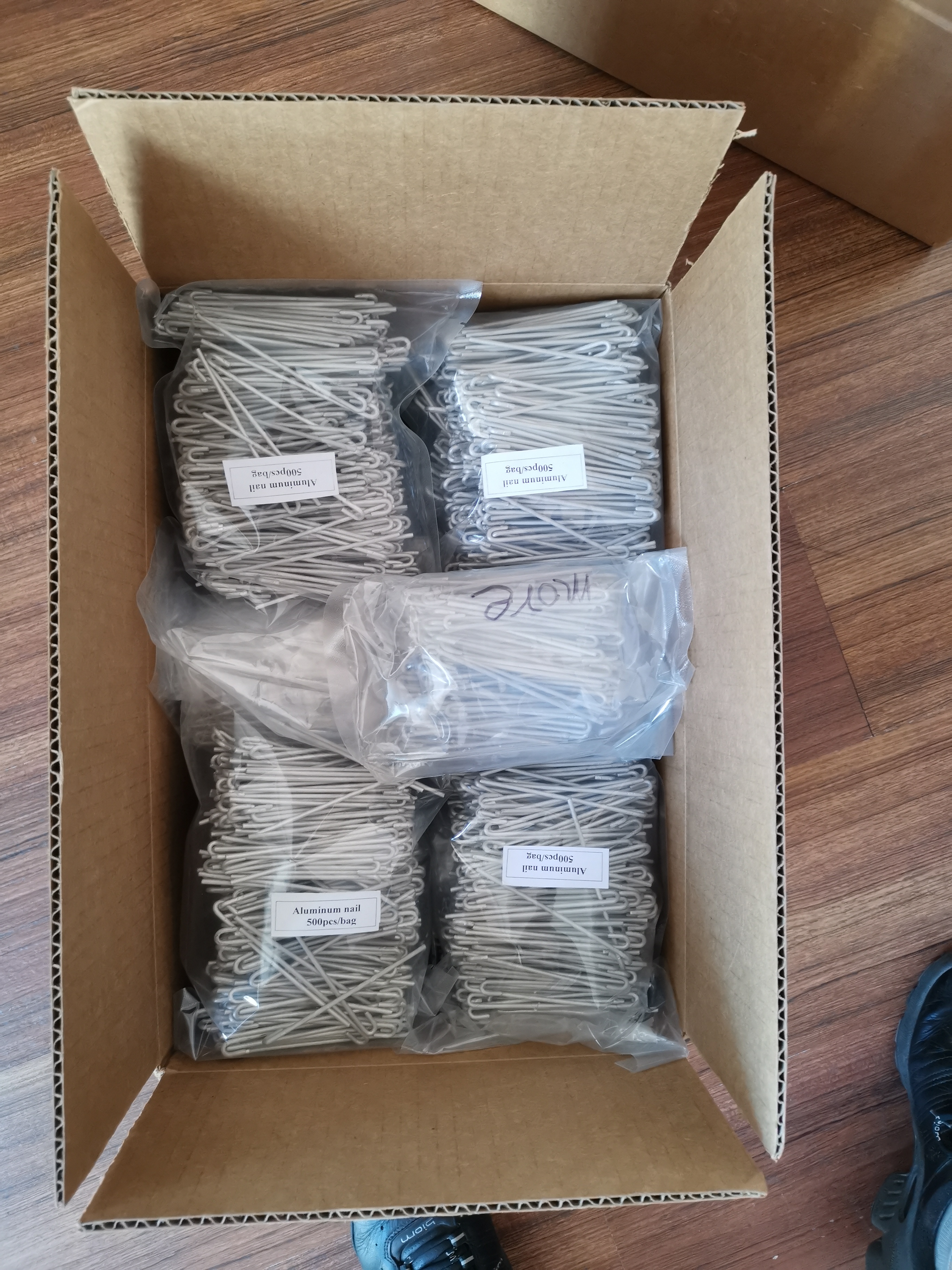

J hooks package

1. 100 pcs per pp bag, 80 bags per carton

2. 500pcs per pp bag, 16bags per carton

3.1000pcs per pp bag, 8 bags per carton

41 cm x 28 cm x17 cm

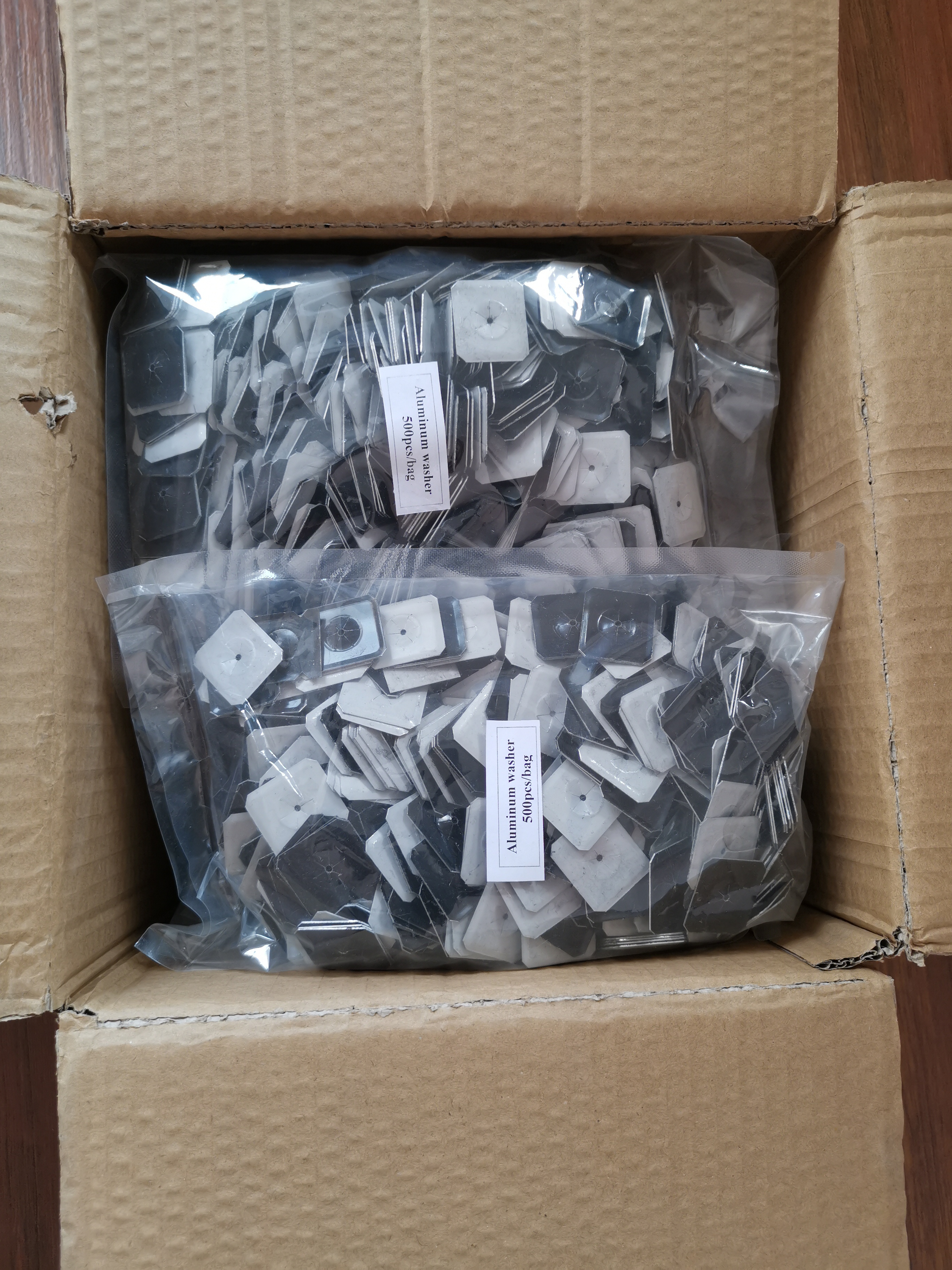

self locking washer package

1. 100 pcs per pp bag, 60 bags per carton

2. 500pcs per pp bag, 12bags per carton

3.1000pcs per pp bag, 6 bags per carton

41 cm x 28 cm x17 cm
