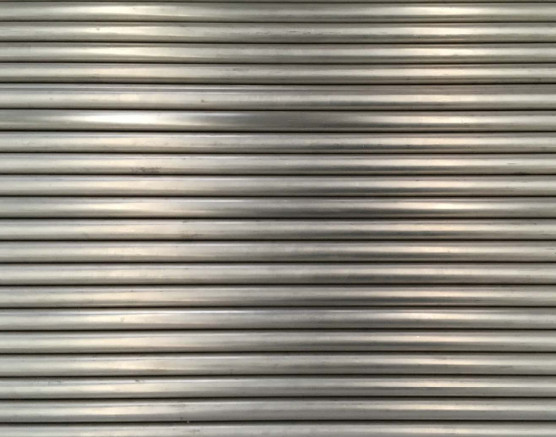

ASTM B338 Gr. 2 / UNS R50400 / 3.7034 Titanium Tubes for Condenser and Heat Exchanger

ASTM B338 Gr. 2 / UNS R50400 / 3.7034 Titanium Tubes for Condenser and Heat Exchanger

ASTM B338 Gr. 2 / UNS R50400 / 3.7034 Titanium Tubes for Condenser and Heat Exchanger
ASTM B338 Gr. 2 / UNS R50400 / 3.7034 Titanium Tubes for Condenser and Heat Exchanger
Categories Titanium Tube
Brand Name: YUHONG
Model Number: ASTM B338 GR.2 / UNS R50400 / 3.7034
Certification: ABS, BV, ISO, ASTM, SGS
Place of Origin: CHINA
MOQ: 1PC
Payment Terms: L/C,T/T
Delivery Time: 7 DAYS
Packaging Details: Ply-wooden Case / Iron Case
Product Name: Titanium Alloy Tube
Standard: ASTM B338 / ASME SB338
Material: GR.1, GR.2, GR.3, GR.7 , GR.7H, GR.9, GR.11, GR.12
W.T.: Schedule 10 to Schedule 160
End: Plain Ends / Beveled Ends
Length: 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
Type: Seamless / Welded
Test: ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing.
Application: Condensers, Heat Exchangers, etc.
High Light: ASTM B338 Gr. 2 Titanium Alloy Tube
Contact Now
Company Info.
Yuhong Group Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM B338 Gr. 2 / UNS R50400 / 3.7034 Titanium Tubes for Condenser and Heat Exchanger

ASTM B338 Gr. 2 (UNS R50400 / 3.7034) Titanium Alloy Tubes for Condenser and Heat Exchanger


Titanium pipe and tube is increasingly being used in a myriad of applications due to the inefficiency of stainless steel and other materials in many instances. A common titanium mill product is titanium tubes, which are employed in a variety of products owing to its superior corrosion resistance and strength-to-weight ratio. The development of many different alloys has extended the application of titanium in industries ranging from industrial and chemical processing to power generation. Grade 2 is a commercially pure titanium grade. Stronger than grade 1, the metal is highly resistant to corrosion. An area where the Titanium Grade 2 Seamless Pipe is suitable is the pulp and paper industry.


Grade2, UNS R50400, 3.7034, CP-3 titanium has an alpha crystal structure. This alloy is widely used because it combines excellent formability and medium strength with excellent corrosion resistance. It has good corrosion resistance in highly oxidizing and mildly reducing environments (including compounds). And easy to weld, hot and cold processing and machining. The combination of these characteristics makes it ideal for many applications, including seawater pipelines in aerospace, petrochemical, oil and gas and marine industries, reaction vessels and heat exchangers, ships, automotive parts, medical, and sports equipment.


Specification

STM B338-17e1 Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers

ASTM B338 Titanium Alloy Tubes SpecificationASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
ASTM B338 Titanium Alloy Tubes GradesGrade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al
ASTM B338 Titanium Alloy Tubes TypeHot Rolled / Cold Drawn / Welded / ERW
ASTM B338 Titanium Alloy Tubes Outer Diameter SizeSeamless - 1/4"NB to 12"NB (Nominal Bore Size)
Welded / ERW- 1"NB to 16"NB (Nominal Bore Size)
ASTM B338 Titanium Alloy Tubes Wall ThicknessSchedule 10 to Schedule 160
ASTM B338 Titanium Alloy Tubes Length5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM B338 Titanium Alloy Tubes Pipe EndsPlain Ends / Beveled Ends
ASTM B338 Titanium Alloy Tubes Delivery ConditionsAs Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
ASTM B338 Titanium Alloy Tubes CoatingElectropolish, Mechanical Polish, Satin Finish, Passivated
ASTM B338 Titanium Alloy Tubes Other Testingardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc.
ASTM B338 Titanium Alloy Tubes DimensionAll Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM B338 Titanium Alloy Tubes Value Added ServicesDraw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM B338 Titanium Alloy Tubes PackagingLoose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM B338 Titanium Alloy Tubes Shipment & TransportationBy Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM B338 Titanium Alloy Tubes Material Test CertificateManufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Chemical Composition

ElementChemical Composition %
Grade 1Grade 2Grade 3Grade 5Grade 7Grade 9Grade 11Grade 12Grade 23
Nitrogen, max0.030.030.050.050.030.030.030.030.03
Carbon, max0.080.080.080.080.080.080.080.080.08
Hydrogen, max0.0150.0150.0150.0150.0150.0150.0150.0150.0125
Iron, max0.200.300.300.400.300.250.200.300.25
Oxygen, max0.180.250.350.200.250.150.180.250.13
Aluminum………5.5-6.75…2.5-3.5……5.5-6.5
Vanadium………3.5-4.5…2.0-3.0……3.5-4.5
Tin………………………
Ruthenium………………………
Palladium…………0.12-0.25…0.12-0.25……
Molybdenum…………………0.2-0.4…
Chromium………………………
Nickel…………………0.6-0.9…
Niobium………………………
Ziconium………………………
Silicon………………………
Residuals, max each0.10.10.10.10.10.10.10.10.1
Residuals, max total0.40.40.40.40.40.40.40.40.4
Titaniumbalancebalancebalancebalancebalancebalancebalancebalancebalance

Mechanical Properties

ASTM B338 Tensile Strength of Titanium Tubes

GradeTensile Strength, minYield Strength (0.2% Offset)Elongation 2 in. or 50 mm
minmax
Ksi(Mpa)Ksi(Mpa)Ksi(Mpa)gage length min %
Grade 135(240)25(170)45(310)24
Grade 250(345)40(275)65(450)20
Grade 365(450)55(380)80(550)18
Grade 5130(895)120(828)……10
Grade 750(345)40(275)65(450)20
Grade 990(620)70(483)45…15
Grade 1135(240)25(170)…(310)24
Grade 1270(483)50(345)……18
Grade 23120(828)110(759)……10

Applications

  • 1. Chlorination systems
  • 2. Flue gas scrubbers
  • 3. Outlet ducting and stack liners for power plants, pulp and paper bleach plants, sulfur dioxide scrubbers, and weld overlay of less corrosion resistant metals
  • 4. Acid production and pickling systems
  • 5. Pharmaceutical industries use alloy fittings and tubing to avoid contamination caused by corrosion related failures
  • 6. Cellophane manufacturing
  • 7. Chlorination systems
  • 8. Pesticide production
  • 9. Incineration scrubber systems
  • 10. Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing
  • 11. Waste water processing
  • 12. Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
  • 13. Flue gas desulfurization systems
  • 14. Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
  • 15. Sour gas wells
  • 16. Pulp and paper production
  • 17. Waste treatment
  • 18. Pharmaceutical and food processing equipment
