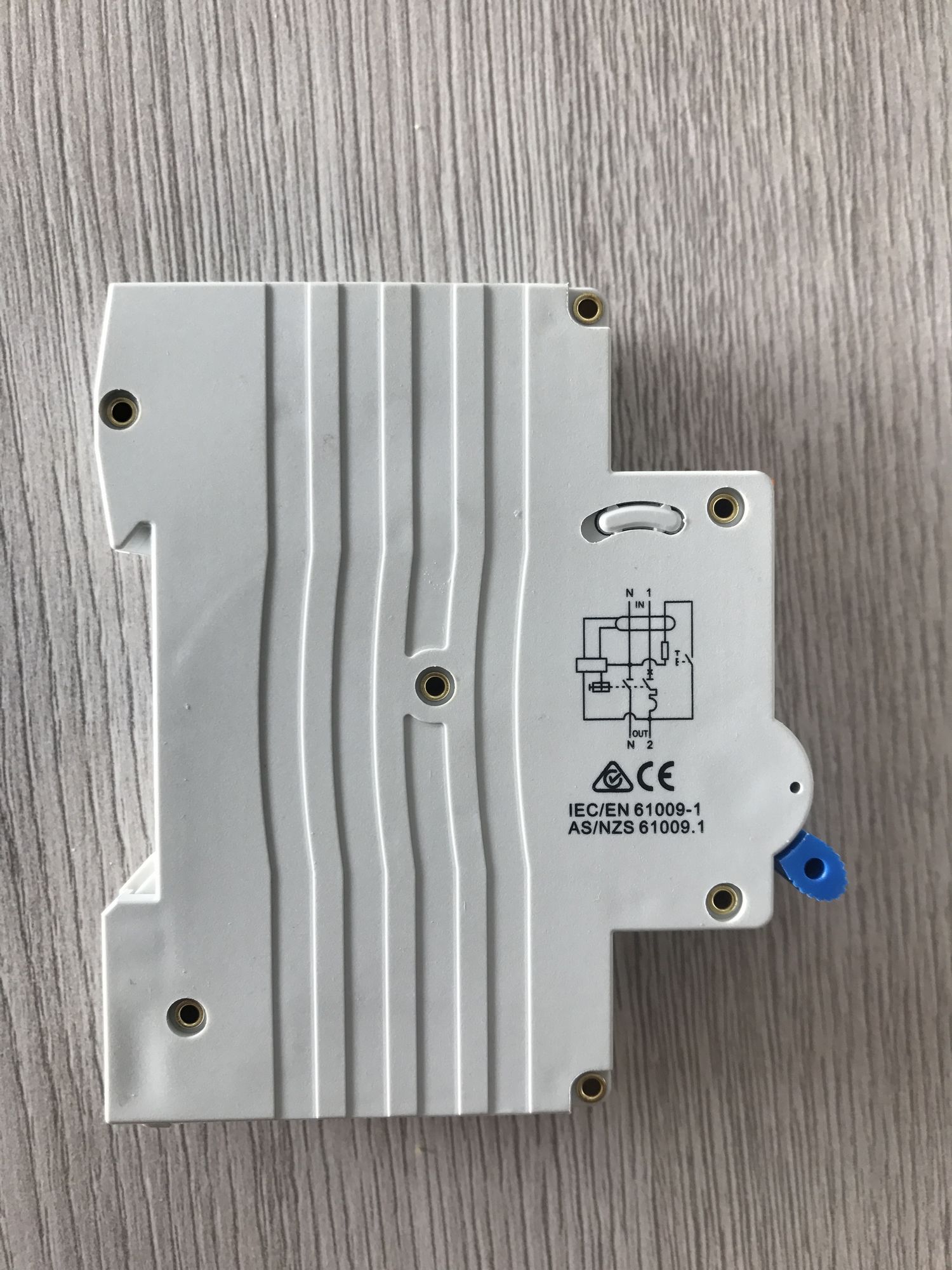

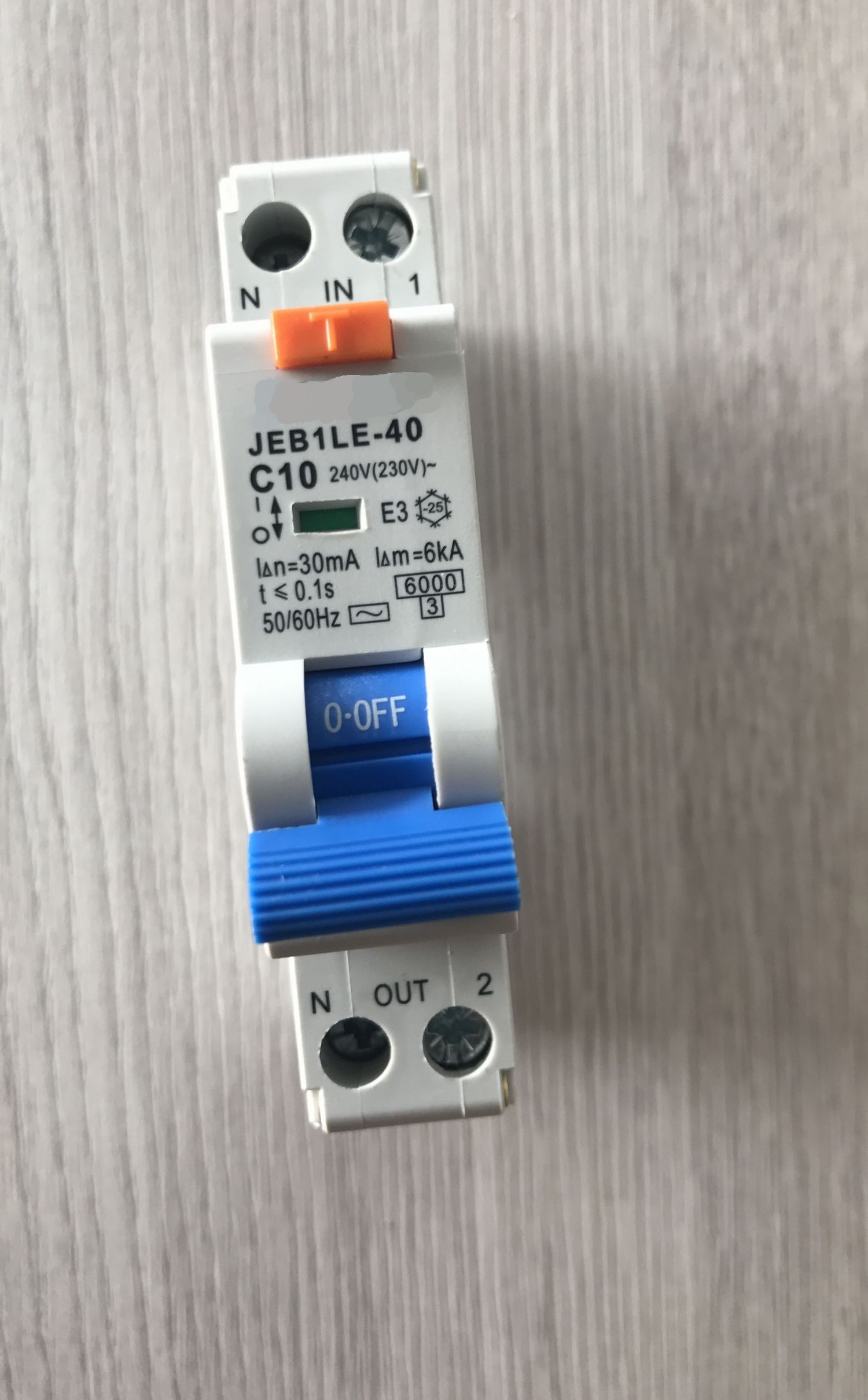

6 Ka RCBO Leakage Protector Residual Current Circuit Breaker 30Ma

6 Ka 1P+N RCBO leakage protector circuit breaker 30Ma with SAA certificate


Function:

♦ Control electric circuits

♦ Protect people against indirect contacts and additional protection against direct contacts

♦ Protect installations against fire hazard due to insulation faults

♦ Residual current circuit breakers are used in housing, tertiary sector and industry

♦ Support 35mm Din-rail installation


Specifications:

Poles1P+N
Electrical Specification
Rated current (A) In6A,10A,16A,20A,25A,32A,40A
Rated working voltage (V) Ue240V
Rated residual current (mA) I△n30
Rated residual making and breaking capacity (A) I△m6kA
residual current working typeAC, A
Service life Mechanical Standard value8000
(O-C) Electrical Standard value4000
Control And indication
Shunt release (SHT)NONE
Undervoltage release (UVT)NONE
Auxiliary contact(AUX)NONE
Contact position indicatorNONE
Fault indicationDEFAULT
Connection And Installation
Ambient temperature (with daily average ≤35℃)-5℃ ~ +40℃
Protection degree All sidesIP40
connection terminalIP20

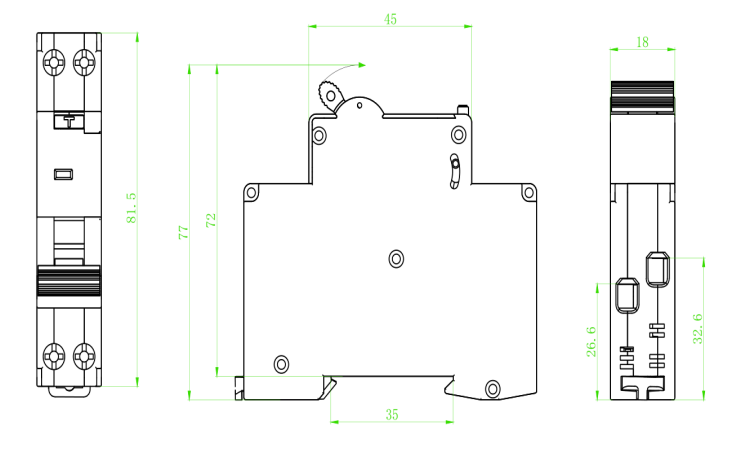

Dimensions:



FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us an inquiry. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs; For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products100% self-inspection and testing before packing.

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy .
