3.0kgs TNT Exploding Disposal Equipment Containment Ball Tanks For EOD Team

Categories Bomb Disposal Device
Brand Name: Securina
Model Number: FBG-2.0
Certification: FCC-SDoC, CE
Place of Origin: Guangdong, China
MOQ: 1 pc
Price: $3, 000-$50, 000/pc
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Pieces per Month
Delivery Time: 5-8 working days upon payment confirmation
Packaging Details: Plywooden case
Bomb Disposal Device Type: Mobile with four wheels for EOD team
Exploding Containment Ball Max bearing: 3.0 kgs TNT or equal
Bomb Containment Vessel Thickness of wall: 36mm
Threat containment vessel materials: Carbon steel
Bomb containment vessel Net weight: 680kgs
Total containment vessels size: 920mm * 980mm * 880mm ( Wide*Deep*Height, when cover closed)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3.0kgs TNT Exploding Disposal Equipment Containment Ball Tanks For EOD Team

3.0kgs TNT Exploding Disposal Equipment Containment Ball Tanks For EOD Team


Suspect parcel containment vessels description:


Total containment vessels(TCVs) are fully enclosed containers designed to safely secure, transport, and test explosive or chemical devices. TCVs are used by emergency responders as mitigation solutions to help protect people, property, and the environment from primary and secondary fragmentation and gases that generally result from the detonation of an explosive device. Once the suspect object is contained in the chamber, the surrounding area is protected from the blast effects of the explosive device, up to the explosive rating of the chamber.


Bomb Suppression Tank Applications:
Containment vessels have many applications in law enforcement, security, and transportation for safely securing, transporting, and testing explosive or chemical devices. Many governments and commercial office buildings, including embassies, post offices, nuclear power plants, and transportation facilities are prime targets for bomb threats. The TCV is designed to contain the bomb while being transported to an area where it can be rendered safe. Terrorist activities continue to escalate worldwide and TCVs are a great benefit to meet bomb security needs.


Bomb Disposal Container Specifications:


Material:Carbon steel, Thickness 36mm;
Composed:by tank body, tank lid, trawl, mechanical facility for operating lid, foundation, Jacking parts, Venting components, Wheels and etc;
Operation way:Manually open/close the cover via external devices; the month of the ball tank is vertically upward;
Cover openedfrom inside;
Bottom base size:800mm * 900mm * 90mm ( Wide*Deep*Height)
Complete device size:900mm * 980mm * 880mm ( Wide*Deep*Height, when cover open)
Inner size:750mm * 650mm ( Wide*Deep, when cover closed)
Inner diameter :750mm
Outer diameter :880mm
Mouth diameter:550mm
Cover diameter :590mm
Max open diameter:330mm
Venting holes Diameter:5mm (on the body of tank)
Venting componentsis made of Seamless steel pipe with a diameter of 25mm, thickness of 2mm; one side of the steel pipe is welded with the venting holes, the other side is welded to the bottom of the tank;
Bottom of tankis made of 12mm thick steel, its edges are made of 3mm steel, and there are 4 wheels at the bottom;
Net weight of the ball tank660kgs

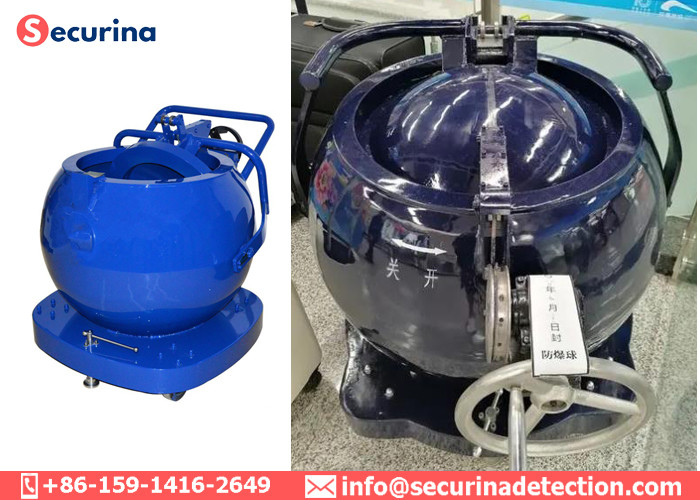

Explosive Disposal Equipment​ Picture:
