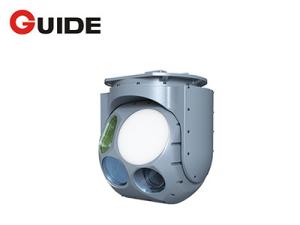

GDES-450H55 Airborne 4-axis Multi-band Reconnaissance Pod
The GDES-450H55 airborne 4-axis multi-band reconnaissance has the capability to capture images with complementary advantages of different wavebands by integrating visible light and infrared cameras.
Based on an extensive experience in advanced electro optics and infrared systems (EO/IR), the GDES-450H55 EO/IR gimbal payload integrates a continuous zooming full HD visual camera and cooled infrared camera with 1280×1024/12μm focal plane array detector. It includes 4-axis gyro stability system, and has functions of image stabilizing, target searching, tracking and locating.
It can be widely used in applications such as investigation, monitoring, forest fire prevention, power line inspection, frontier anti-terrorism, oil and gas pipeline inspection, intelligent transportation, disaster rescue etc.
- High stability accuracy up to 0.03mrad
- Core infrared detector with self-developed intellectual property
right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning function
| Model | GDES-450H55 |
| Infrared Camera | |
| Detector | Cooled MWIR Focal Plane Array |
| Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| FOV | 0.92°×0.73°~35.49×28.72° |
| Zoom Lens | 15~600mm, Continuous Zoom |
| Visual Camera | |
| Resolution | 1920×1080 |
| Focal Length | 10~600mm, Continuous Zoom |
| FOV | 1.01°×0.57°~38.78°×22.4° |
| Laser | |
| Wavelength | 1.064μm |
| Maximum Range | ≥20km |
| Irradiation Distance | ≥12km |
| LRF Accuracy | ±5m |
| Illumination Distance | ≥500m |
| Servo System | |
| Motion Range | 360° Continuous Azimuth, -110~+20° Elevation |
| Stabilization Accuracy | ≤0.02mrad(RMS) |
| Electrical Interface | |
| Working Voltage | DC28V (Support 18-36V Input) |
| Video Port | Ethernet |
| Physical Characteristics | |
| Weight | ≤55kg |
| Dimension | ≤450mmx580mm (OD×H) |
|
