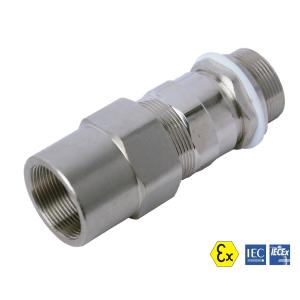

RoHS Armoured Explosion Proof Cable Gland Single Seal KBM 05 06 Series

RoHS Armoured Explosion Proof Cable Gland Single Seal KBM 05 06 Series

RoHS Armoured Explosion Proof Cable Gland Single Seal KBM 05 06 Series
RoHS Armoured Explosion Proof Cable Gland Single Seal KBM 05 06 Series
Categories Explosion Proof Cable Gland
Brand Name: KHJ
Model Number: KBM05,KBM06
Certification: ATEX,IECEx,CE,RoHS
Place of Origin: Guangdong, China
MOQ: 1 pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/day
Delivery Time: 3-8work days
Packaging Details: Negotiable
Product name: KBM 05 06 Series Single Seal Armoured Cable Glands
Material: Stainless steel, nickel plated brass, brass, etc.
Degree of protection: IP66
Ambient temperature: -43℃~+100℃
Connection thread: NPT thread, Metric thread (M), Inch thread(G)
Increased safety: Type‘e’
Restricted breathing: Type ‘nR’
Combustible dust: Type ‘tb’
Contact Now
Company Info.
Shenzhen KHJ Semiconductor Lighting Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RoHS Armoured Explosion Proof Cable Gland Single Seal KBM 05 06 Series

KBM 01 02 Series Explosion proof Cable Glands Single Seal Unarmoured

Application and Features:

● Explosion protection
- IECEx (IEC)-IECEx TPS 21.0001X
- ATEX (CENELEC, EN)-TPS 21 ATEX 003086 0010 X Rev. 00
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2
Zone 21 and Zone 22
● Increased safety (Type ‘e’), restricted breathing (Type ‘nR’), combustible dust (Type ‘tb’) structure.
● Single seal for armoured cables.
● External hexagon and stripe compression nuts are available.
● Can be installed on Ex i (intrinsic safety type) equipment.

Technical Parameter:


Explosion
protection		Ex markingII 2 GD Ex eb IIC Gb
/Ex tb IIIC Db		Ex eb IIC GbEx e IIC Gb
II 2/3 GD Ex eb IIC Gb
/Ex nR IIC Gc/Ex tb IIIC Db		Ex nR IIC GcEx nR IIC Gc
Ex tb IIIC DbEx tD A20 IP66
Conformity to standardsIEC60079-0,IEC60079-7,IEC60079-15,IEC60079-31
EN60079-0, EN60079-7, EN60079-15, EN60079-31
GB3836.1,GB3836.3,GB3836.8,GB12476.1,GB12476.5
MaterialStainless steel, nickel plated brass, brass, etc.
Degree of protectionIP66
Ambient temperature-43℃~+100℃
Connection threadNPT thread, Metric thread (M), Inch thread(G)

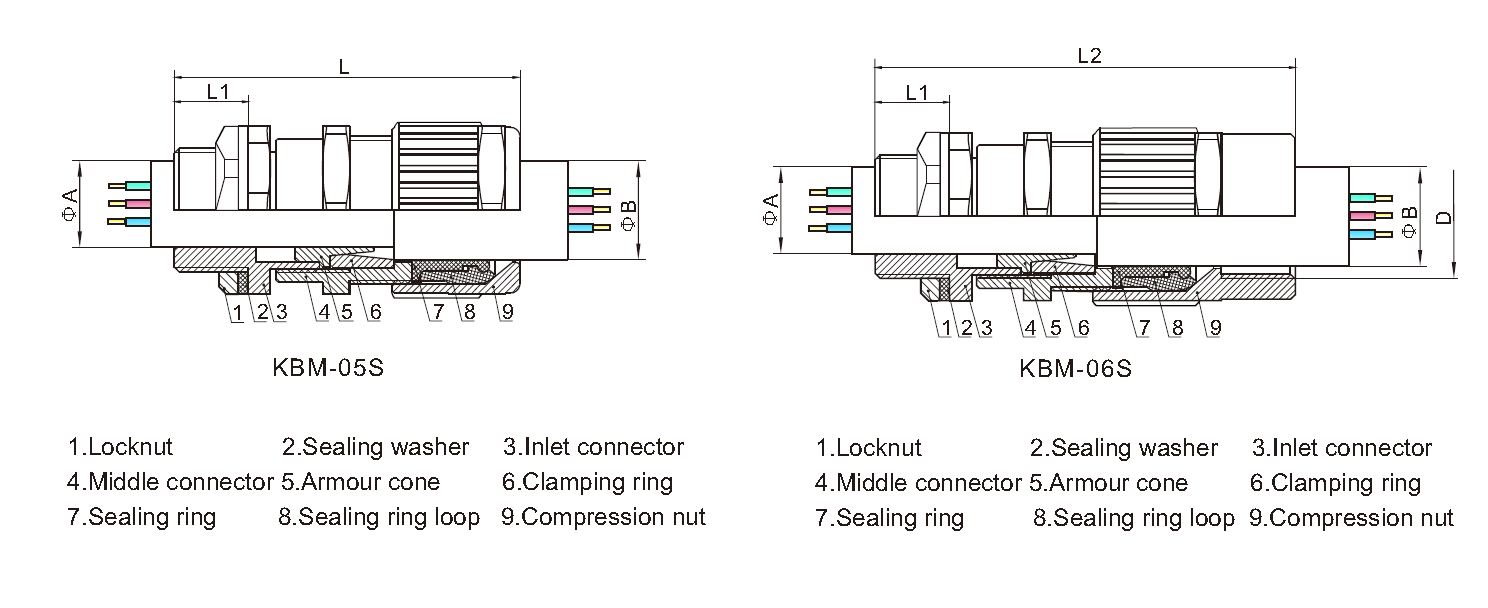

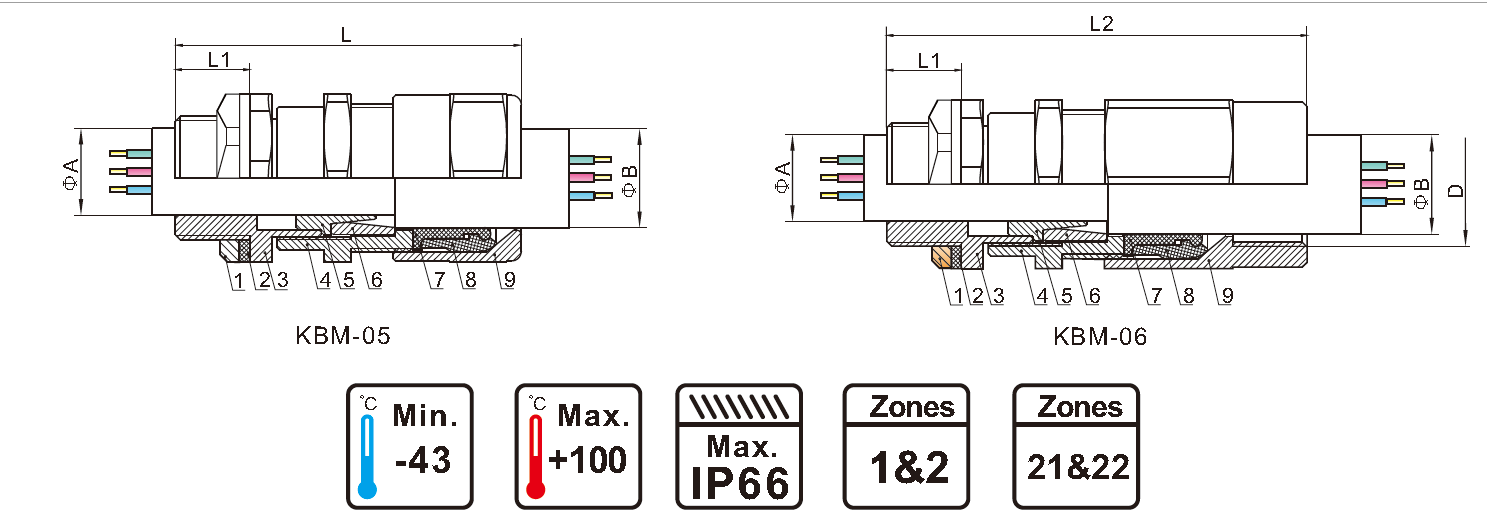

Outline and Installation Dimension(Dimensions in mm):

Mounting threadCable outer diameter (mm)

Thread length L1

(mm)

Length L (mm)

Length L2 (mm)

HLBM-05

Weight (kg)

HLBM-06

Weight (kg)

MGNPTOutlet φAInlet φB
M16X1.5A3～8.25.5～121568830.160.17
M16X1.56.5～129.5～161569840.160.17
M20X1.5AG1/2ANPT1/2A3～8.25.5～121568830.180.20
M20X1.5G1/2NPT1/26.5～129.5～161568830.160.18
M20X1.5CG1/2CNPT1/2C10～14.512.5～20.51572.587.50.220.24
M25X1.5AG3/4ANPT3/4A6.5～129.5～161568830.200.22
M25X1.5G3/4NPT3/410～14.512.5～20.51570.585.50.260.28
M25X1.5CG3/4CNPT3/4C12.5～20.217～261578.593.50.320.32
M32X1.5AG1ANPT1A10～14.512.5～20.52076.591.50.360.39
M32X1.5G1NPT112.5～20.217～262081.596.50.400.43
M32X1.5CG1CNPT1C19.5～26.522～3320881030.520.55
M40X1.5AG11/4ANPT11/4A12.5～20.217～262081.596.50.760.80
M40X1.5G11/4NPT11/419.5～26.522～3320881030.720.76
M40X1.5CG11/4CNPT11/4C25～32.528～412094.51100.981.02
M50X1.5AG11/2ANPT11/2A19.5～26.522～3320881031.171.20
M50X1.5G11/2NPT11/225～32.528～412093.5108.51.081.14
M50X1.5CG11/2CNPT11/2C31.5～44.536～46201051201.371.42
M50X1.5DG11/2DNPT11/2D31.5～44.541～52.6201051201.331.38
M63AG2ANPT2A25～32.528～412093.5108.51.241.40
M63G2NPT231.5～44.536～46201051201.381.44
M63CG2CNPT2C31.5～44.541～52.6201051201.361.42

Note:

1. Locknut and sealing washer(PTFE gasket) are supplied as standard when delivery. Above weight is based on nickel plated brass material.
2. Earth lug and shroud are on request.
3. The standard pitch of metric thread products is 1.5mm, other pitches can be customized, please specify when ordering.
