Sliver Contact Power Relay JQX-38F 220V 40A 3NO 3NC 3PDT High Current

Categories Relay
Place of Origin: Zhejiang, China
Brand Name: Kampa
Model Number: JQX-38F
Theory: Power Relay
Usage: PROTECTIVE, Protection
Size: Miniature
Protect Feature: Sealed
Contact Load: High Power
Product name: High quality 30A/40A 250VAC/24VDC high power relays
Packing: 200pcs/ctn
MOQ: 50PCS
Loading: 20Amp/30Amp
Sample times: 3days
OEM: YES
Open port: Ningbo/Shanghai
Type: power relay
Packaging Details: Standard Export Carton/200pcs/ctn
Port: Ningbo/Shanghai
Supply Ability: 100000 Piece/Pieces per Month
MOQ: 100 Pieces
Price: $4.00 - $15.00/Pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sliver Contact Power Relay JQX-38F 220V 40A 3NO 3NC 3PDT High Current

Sliver Contact Power Relay JQX-38F 220V 40A 3NO 3NC 3PDT High Current

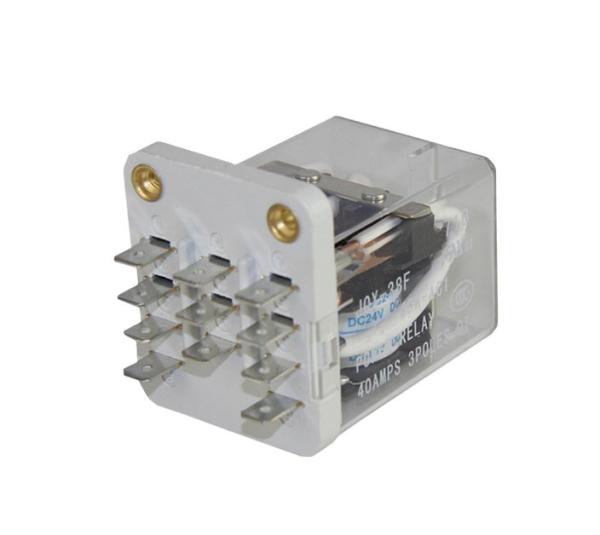

1.Picture


2.Description


11 pins 3PDT, with coil voltage DC 24V 40A eletromagnetic relay.

The JQX-38F General Purpose Relay can adjust automatically, protect and transform the electric circuit.

Widely used in the remote control, communication, automatic control system, electronic equipments, etc.

Power Relay: JQX-38F

Coil voltage: DC5-60V,AC12-220V
Contact Specification
Contact form2Z,2H,2D 3Z,3H,3D
Contact resistance≤100mΩ(1A 6VDC)
Contact materialAgCdO
Contact capacityA:40A 250VAC/30VDCB:30A 250VAC/30VDC
Technical Specification
Insulation resistance≥1000MΩ.500VDC
Dielectric strengthBCC ≥2500VAC 1min
BOC ≥1200VAC 1min
Operate / Release time≤25ms/15ms
Terminal typeSocket terminal mounting
Coil Specification
Rated coil power: DC2.5W AC5VA
Coil Data
Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
129.601.2057129.603.6010
2419.22.402304819.207.2040.3
4838.44.8092011088.0036847
6048.06.001440220/240176723380/4030
