| Categories | Relay |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Kampa |
| Model Number: | AH3-3 |
| Theory: | Time Relay |
| Usage: | Power on Delay |
| Size: | 51*41*83mm |
| Protect Feature: | Sealed |
| Contact Load: | Low Power |
| Product name: | AH3-3 super time relay 250V 5A |
| OEM: | Yes |
| Certificate: | CE |
| Contact Capacity: | AC250V 5A |
| Dimension: | 51*41*83mm |
| Work Form: | Power on Delay |
| Delay Accuracy: | ≤ 0.5% |
| Delay Specification: | 0.1s~12h |
| Installation: | Din Rail,Device Type |
| Type: | time relay |
| Packaging Details: | Unit Type: piece
Package Weight: 0.250kg (0.55lb.) Package Size: 7cm x 8cm x 9cm (2.76in x 3.15in x 3.54in) |
| Port: | Ningbo/Shanghai |
| Supply Ability: | 50000 Piece/Pieces per Month |
| MOQ: | 10 Pieces |
| Price: | $3.00 - $6.00/Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |

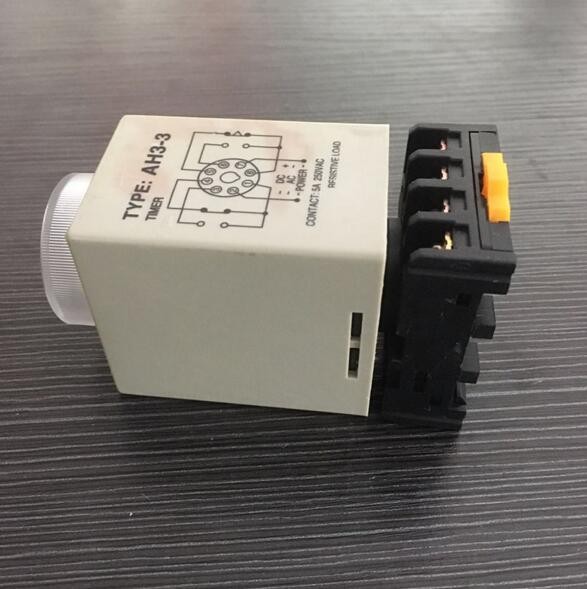

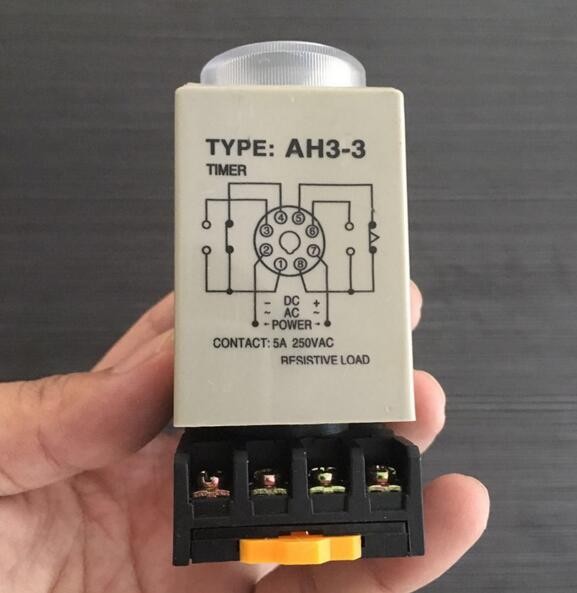

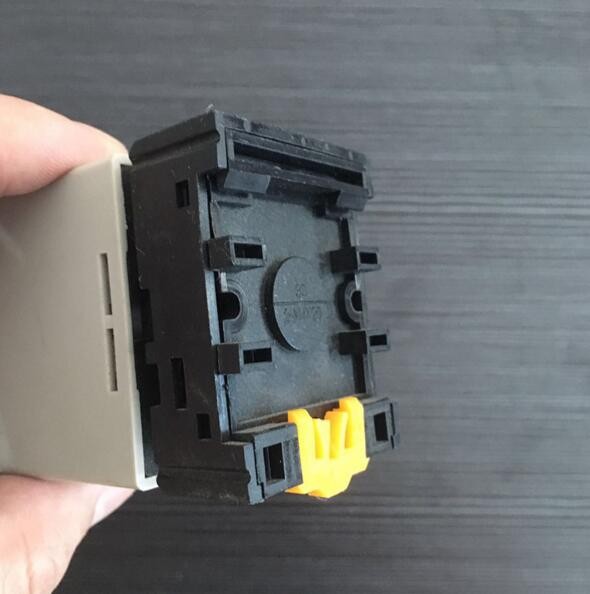

100% Original AC 220V AH3-3 Delay Timer Time Relay 0-6 Second 6s 6sec with Base
1.Specification
| Features | |||||
| Voltage | DC:12V-48V AC:12V-380V,50Hz | ||||
| Power expend | DC1.0W AC1.0VA | ||||
| Control output | 5A 220VAC | ||||
| Insulation resistance | DC500V 100MΩ | ||||
| Dielectric strength | BCC1500VAC BOC1000VAC | ||||
| Operating temperature | -10°c~+50°c | ||||
| Huminity | 35%~85% | ||||
| Electrical life | 100000 ops | ||||
| Mechanical Life | 10000000 ops | ||||
| Weight | about 160g | ||||
